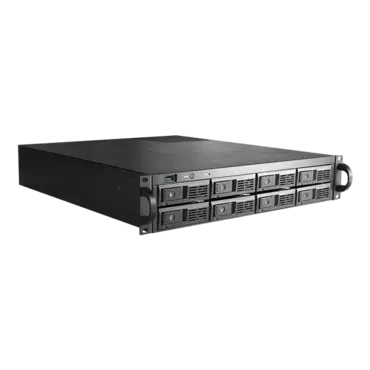

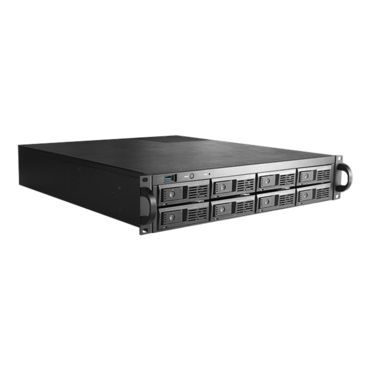

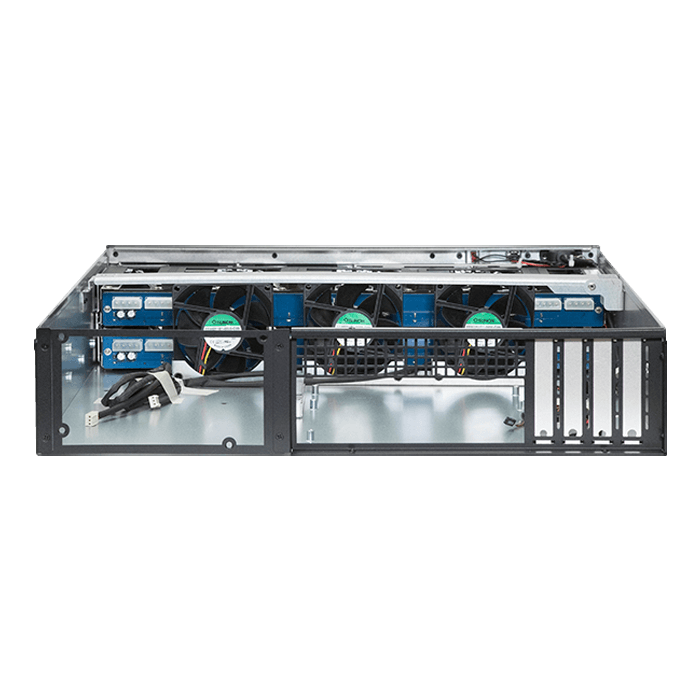

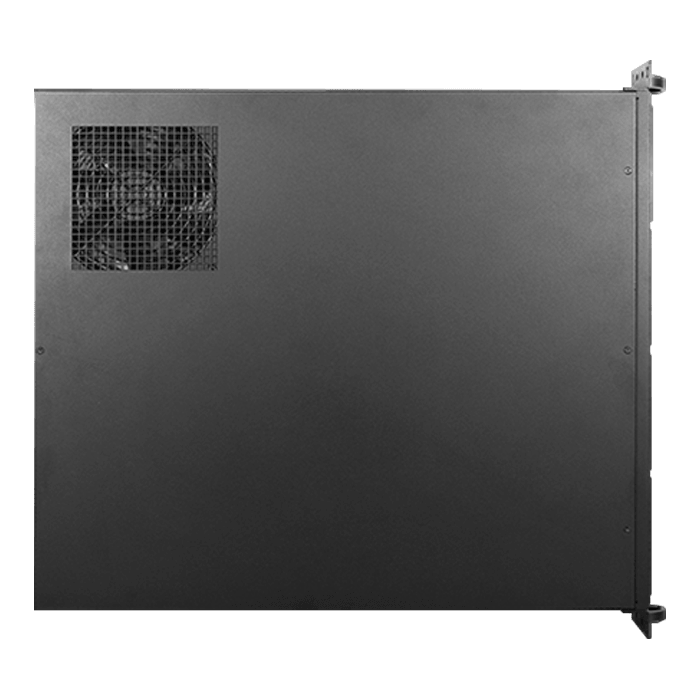

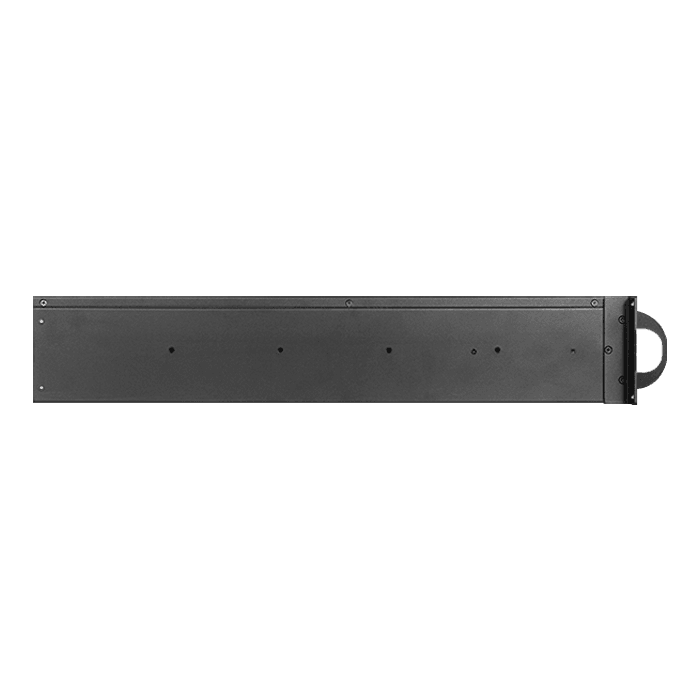

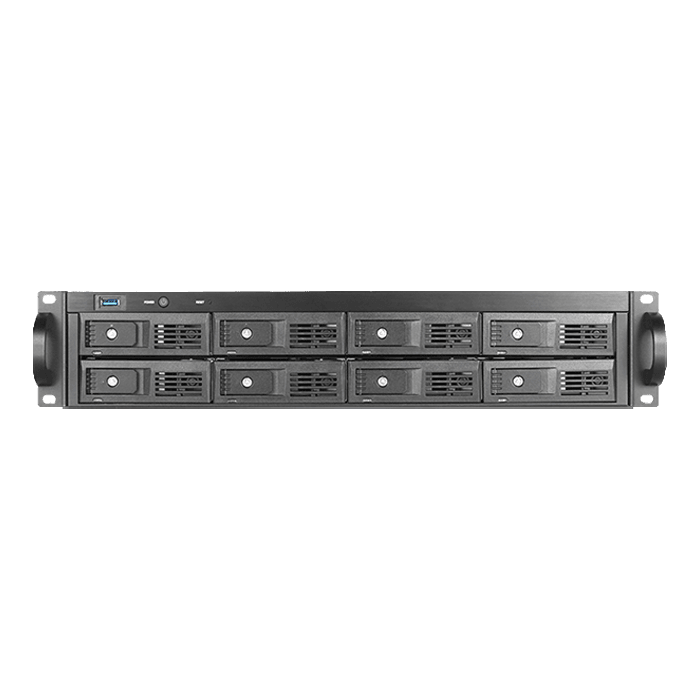

M-280HD-MATX, Black HDD Handle, 8x 3.5" Hotswap Bays, No PSU, microATX, Black, 2U Chassis

  • SKU: 15088378
  • Manufacturer: ISTARUSA
  • MPN: M-280HD-MATX
  • Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
Model Number M-280HD-MATX
RoHS Compliance Yes
Form factor 2 U
Standard Drive Bays 2.5" Drive (internal): 1
Hotswap 3.5": 8
Hotswap HDD Type: 3.5" SAS I/II/III & SATA I/II/III
Indicators Power, HDD
Switches Power, Reset
Supported PSU Type Standard ATX (PS2)
Expansion Slots 4 (Low profile)
Security Key Lock
Material of Front Bezel Aluminum with Steel
Material of Handle Aluminum
Material of Main Chassis Steel
Color of Front Bezel Black
Color of Main Chassis Black
Front Connector 1x USB 3.0
Motherboard Size 9.6 x 9.6 (microATX, mini-ITX)
Cooling Fan 3x80mm
Dimensions (WxHxD) 19.00" x 3.47" x 22.80"
482.6 mm x 88.1 mm x 579.1 mm
Notes - each hdd backplane (for 4 hard drives) requires two Molex power connectors from the power supply.
