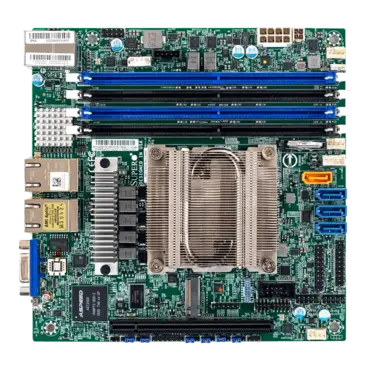

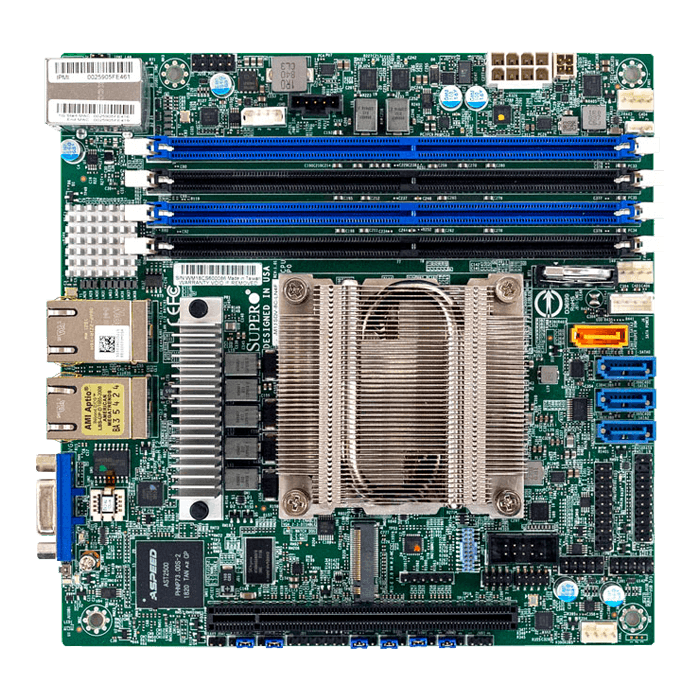

M11SDV-8C+-LN4F, AMD EPYC™ 3251 SoC Processor, DDR4-2666 128GB RDIMM / 4, SATA DOM, VGA, M.2, GbLAN / 4, Mini-ITX Retail

SKU: 12697641
Manufacturer: SUPERMICRO
MPN: MBD-M11SDV-8C+-LN4F-O
Availability: TEMPORARILY OUT OF STOCK

Price

$759.96

AMD EPYC™ 3251 SoC Processor, 8 Core/16 Thread, 50W
Up to 512GB ECC Registered, DDR4-2666MHz SDRAM in 4 DIMMs
1 PCI-E 3.0 x16 slot, 1 M.2 PCI-E 3.0 x4, 2280, M Key
SoC controller for 4 SATA 3.0
4 Gigabit Ethernet ports, 1 dedicated IPMI LAN
ASPEED AST2500 BMC graphics
Up to 2 USB 3.0 ports, Up to 6 USB 2.0 ports
1 COM port, TPM 2.0 header
3 fan header, 4-pin type fan header, 3 fans with tachometer monitoring

Product SKUs
MBD-M11SDV-8C+-LN4F	M11SDV-8C+-LN4F
Physical Stats
Form Factor	Mini-ITX
Dimensions	6.7" x 6.7" (17cm x 17cm)
Processor/Cache
CPU	Single AMD EPYC™ 3251 SoC Processor
Cores	8 Core/16 Thread
Chipset	System on Chip
System Memory
Memory Capacity	4 DIMM slots Supports up to 512GB Registered ECC DDR4 2666MHz SDRAM in 4 DIMMs 4-channel memory bus
Memory Type	DDR4 2666 MHz Registered ECC, 288-pin gold-plated DIMMs
DIMM Sizes	8GB, 16GB, 32GB, 64GB, 128GB
Memory Voltage	1.2V
Error Detection	Corrects single-bit errors Detects double-bit errors (using ECC memory)
On-Board Devices
SATA	SATA3 (6 Gbps)
Network Controllers	4x 1GbE with Intel® I350-AM4 1 Realtek RTL8211E PHY (dedicated IPMI)
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support ASPEED AST2500 BMC
VGA	ASPEED AST2500 BMC
Input / Output
SATA	4 SATA3 (6 Gbps) ports
LAN	4 RJ45 Gigabit Ethernet LAN ports 1 RJ45 Dedicated IPMI LAN port
USB	2 USB 3.0 ports 6 USB 2.0 ports
VGA	1 VGA port
Others	1 COM port header 1 TPM 2.0 header
Expansion Slots
PCI-Express	1 PCI-E 3.0 x16 slot
M.2	Interface: 1 PCI-E 3.0 x4 Form factor: 2280 Key: M-key
System BIOS
BIOS Type	AMI 128Mb Flash EEPROM
Management
Software	Super Doctor 5 Watch Dog NMI SUM IPMI 2.0, KVM with dedicated LAN
Power Configurations	ACPI Power Management Power-on mode control for AC power loss recovery
PC Health Monitoring
CPU	Monitors CPU Core Voltages, +1.8V, +3.3V, +12V CPU switching voltage regulator Supports system management utility VBAT
FAN	Up to 3 fan status tachometer monitoring Up to 3 4-pin fan headers Dual Cooling Zone Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment CPU Thermal Trip Support Thermal control for 6x Fan connectors I²C Temperature Sensing Logic
LED	CPU / System Overheat LED
Other Features	Chassis Intrusion Detection Chassis Intrusion Header UID
Operating Environment / Compliance
Environmental Specifications	Operating Temperature: 0°C to 60°C (32°F to 140°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)
