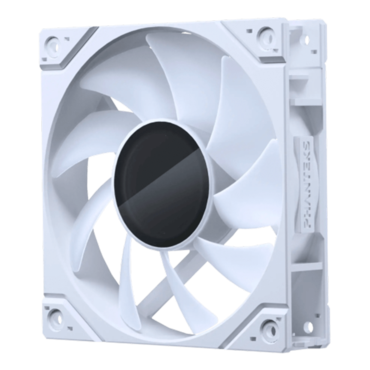

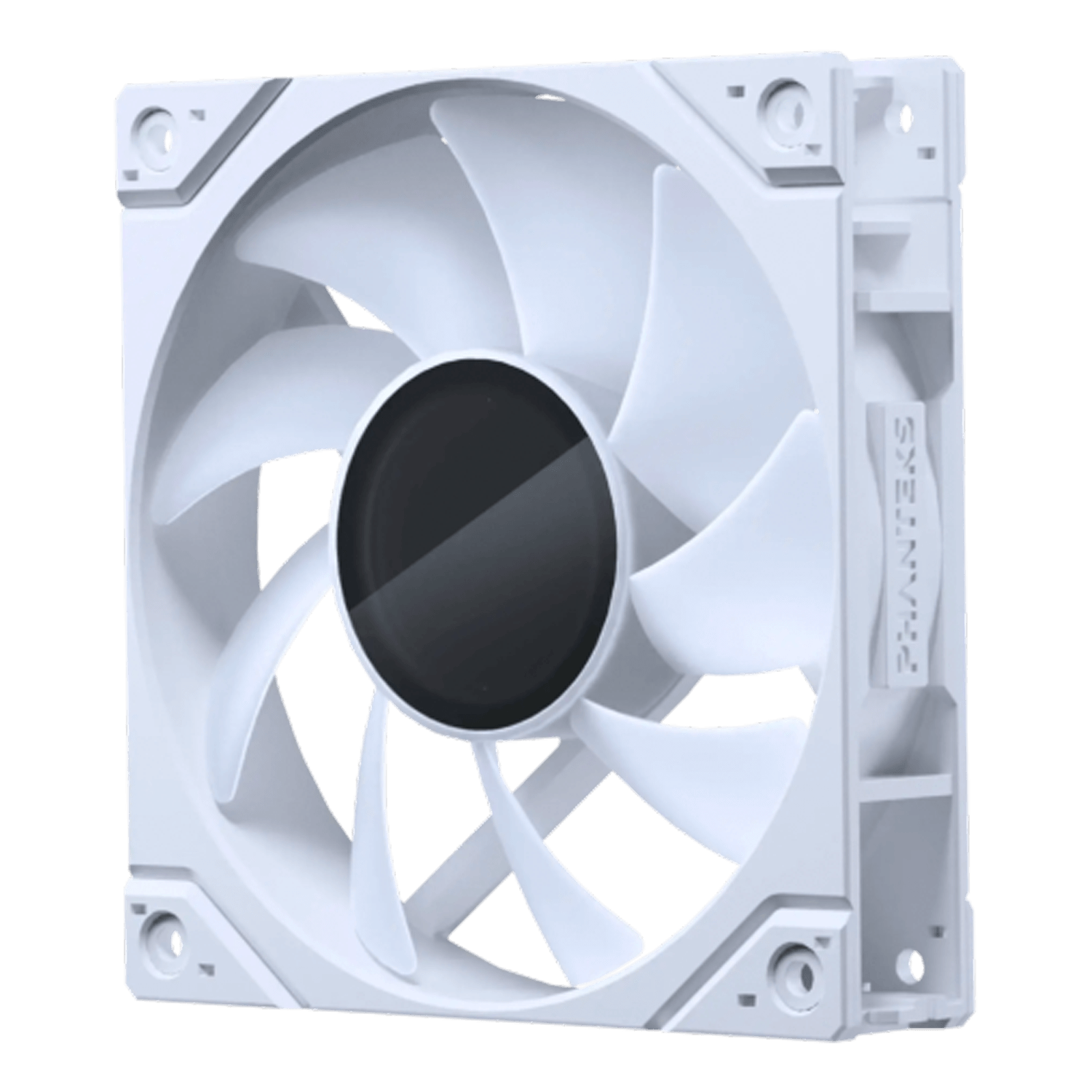

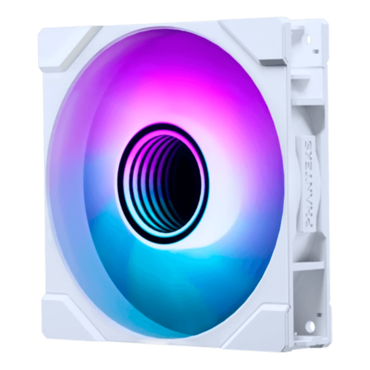

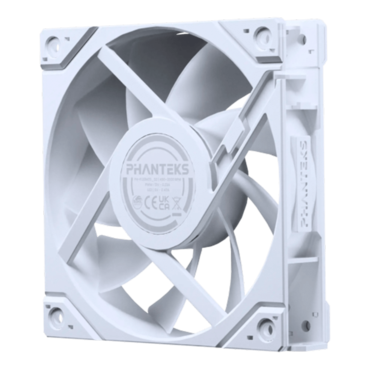

M25G2-120 120mm, White, D-RGB LEDs, 2000 RPM, 72.72 CFM, 35.13 dBA, Cooling Fan
- SKU: 18983001
- Manufacturer: PHANTEKS
- MPN: PH-F120M25_G2_DWT01
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Price
$22.97
| General | |
| Model No. |
Regular PH-F120M25_G2_DWT01 | PH-F120M25_G2_DWT01 _3P Reverse PH-F120M25R_G2_DWT01 | PH-F120M25R_G2_DWT01 _3P |
| UPC Code |
Regular 886523003489 | 886523003519 Reverse 886523003595 | 886523003618 |
| Frame Size | 120 x 120 x 25 mm | 4.72 x 4.72 x 0.98 in |
| Blade Geometry | Nine blades design |
| Color | White |
| Connector | Linq6 |
| Cable Length | 120 mm | 4.72 in Daisy-chain |
| Technical Details Regular | |
| Bearing Type | Hydraulic bearing |
| Rated Voltage | 12V |
| Noise Level | 35.13 dBA |
| Max. Airflow | 72.72 CFM |
| Max. Air Pressure | 2.51 mm H2O |
| Speed | 350~2000 ± 10% RPM |
| MTFB | 40.000 hours |
| Max Current | 0.30A |
| Max Power | 2.76W |
| Operating Voltage Range | DC 6 – 13.2V |
| LED Number | 12 |
| LED Rated Current | Max. 0.43A |
| Technical Details Reverse | |
| Bearing Type | Hydraulic bearing |
| Rated Voltage | 12V |
| Noise Level | 39.28 dBA |
| Max. Airflow | 73.69 CFM |
| Max. Air Pressure | 1.99 mm H2O |
| Speed | 350~2000 ± 10% RPM |
| MTFB | 40.000 hours |
| Max Current | 0.30A |
| Max Power | 2.76W |
| Operating Voltage Range | DC 6 – 13.2V |
| LED Number | 12 |
| LED Max Rated Current | 0.43A |
| Single Pack | |
| Net Weight | 154 ± 5 g | 5.43 ± 0.17 oz |
| Gross Weight | 224 ± 5 g | 7.90 ± 0.17 oz |
| Warranty | 3 Years |
| Scope of Delivery | 1x M25G2-120 fan |
| Accessories |
1x Linq6 extension cable 500 mm 4x Screw cover corner 2x Screw cover bridge |
| Screws | 5x Fan screw |
| Triple Pack | |
| Net Weight | 464 ± 5 g | 16.63 ± 0.17 oz |
| Gross Weight | 623 ± 5 g | 16.63 ± 0.17 oz |
| Warranty | 3 Years |
| Scope of Delivery | 3x M25G2-120 fans |
| Accessories |
2x Linq6 extension cable 500 mm 1x Linq6 adapter cable 500 mm 8x Screw cover corner 4x Screw cover bridge |
| Screws | 14x Fan Screw |
