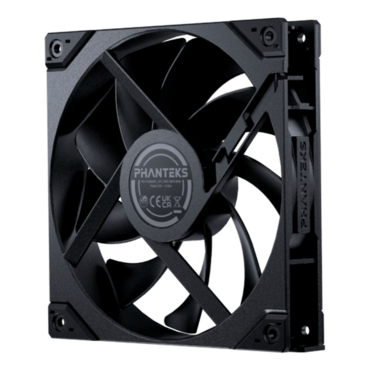

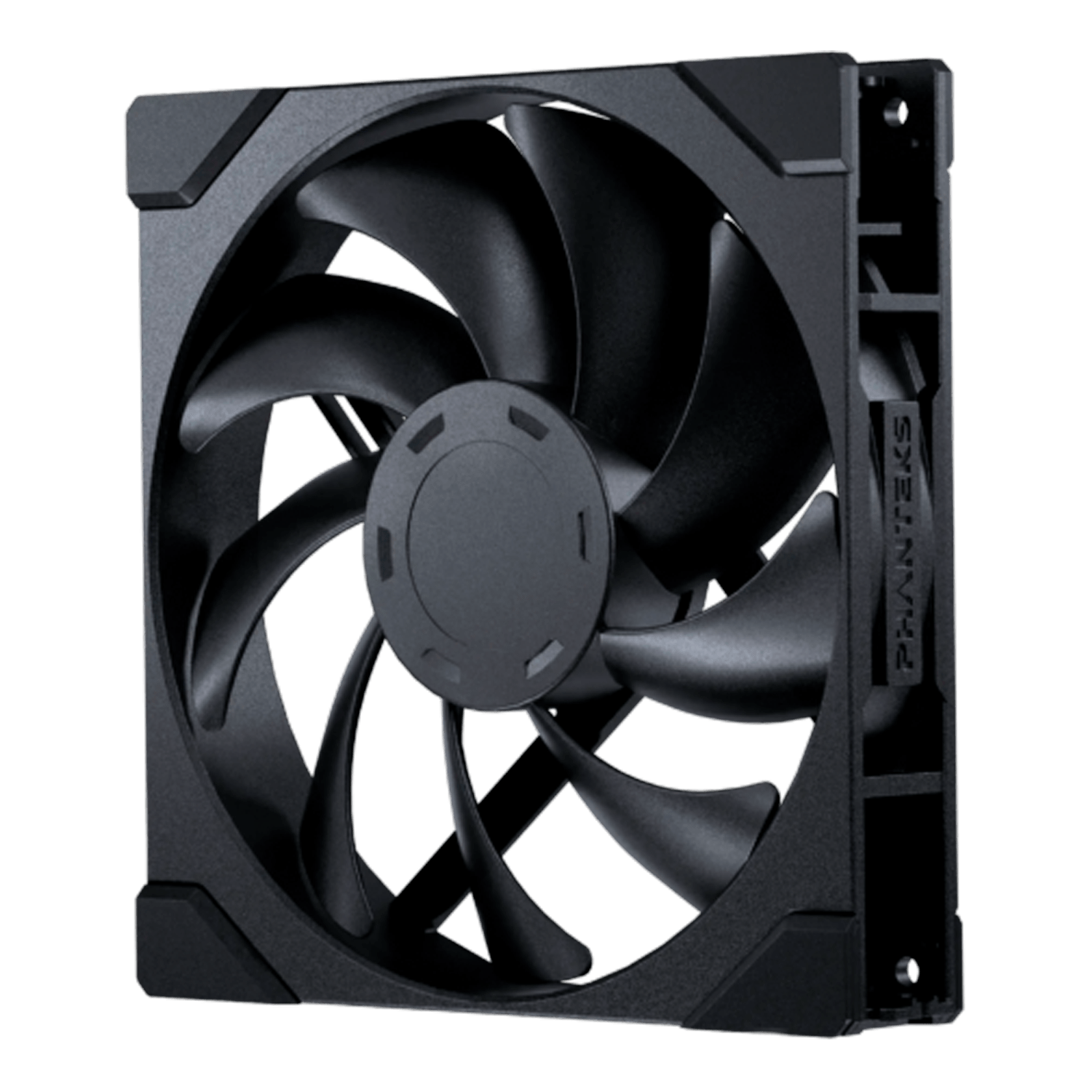

M25G2-140 140mm, 1800 RPM, 101.78 CFM, 36.40 dBA, Cooling Fan
- SKU: 19088046
- Manufacturer: PHANTEKS
- MPN: PH-F140M25_G2_BBK01
- Availability: TEMPORARILY OUT OF STOCK
Price
$13.00
| General | |
| Model No. | PH-F140M25_G2_BBK01 | PH-F140M25_G2_BBK01_3P |
| UPC Code | 886523003526 | 886523003557 |
| Frame Size | 140 x 140 x 25 mm | 5.51 x 5.51 x 0.98 in |
| Blade Geometry | Nine blades design |
| Color | Black |
| Connector | 4-Pin PWM |
| Cable Length | 140 mm | 5.51 in Daisy-chain |
| Technical Details | |
| Bearing Type | Hydraulic bearing |
| Rated Voltage | 12V |
| Noise Level | 36.40 dBA |
| Max. Airflow | 101.78 CFM |
| Max. Air Pressure | 2.23 mm H2O |
| Speed | 350~1800 ± 10% RPM |
| MTFB | 40.000 hours |
| Max Current | 0.30A |
| Max Power | 3.36W |
| Operating Voltage Range | DC 6 – 13.2V |
| LED Number | – |
| LED Rated Current | – |
| Single Pack | |
| Net Weight | 187 ± 5 g | 6.59 ± 0.17 oz |
| Gross Weight | 260 ± 5 g | 9.17 ± 0.17 oz |
| Warranty | 3 Years |
| Scope of Delivery | 1x M25G2-140 fan |
| Accessories |
1x PWM extension cable 500 mm 4x Screw cover corner 2x Screw cover bridge |
| Screws | 5x Fan screw |
| Triple Pack | |
| Net Weight | 563 ± 5 g | 19.85 ± 0.17 oz |
| Gross Weight | 732 ± 5 g | 25.82 ± 0.17 oz |
| Warranty | 3 Years |
| Scope of Delivery | 3x M25G2-140 fans |
| Accessories |
2x PWM extension cable 500 mm 1x PWM adapter cable 500 mm 8x Screw cover corner 4x Screw cover bridge |
| Screws | 14x Fan Screw |
