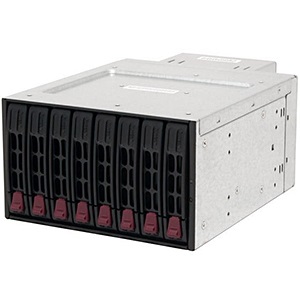

| Mobile Rack M28E1
The Supermicro M28E1/M28E2 mobile rack showcases advanced technology innovations in modular connectivity and data transferability and supplies reliable, effective, and scalable solutions for tomorrow’s data communications industry.
- 8x 2.5" Hot-swap SAS/SATA HDDs with SES2
- Overheat LED and Alarm
- Fan Failure LED and Alarm
- Drive Activity LED
- Drive Failure LED
- 2x 5.25" Drive Bay Enclosure
- 8cm Cooling Fan Subsystem
- 2x Expander Supporting SAS / SATA HDD (Dual Port SAS HDD Only)
Specifications:
| Dimensions |
- 5.8" (147mm) x 1.6" (40mm) x 7.9" (200mm) - With Fan
- 5.8" (147mm) x 1.6" (40mm) x 6.5" (174mm) - Without Fan
|
| Gross Weight |
- 6 lbs (2.6kg) - with package
- 4 lbs (1.8kg) - Mobile Rack only
|
| Available Colors |
- Black (CSE-M28E2B)
- White (CSE-M28E2)
|
| Occupancy |
|
| Capacity |
- 8x 2.5" Hot-swap SAS/SATA with SES2 Hard Disk Drives
|
| Cooling Subsystem |
|
| Maximum Bandwidth |
|
| Configuration |
- Cascadable ( ≥ 12 Mobile Racks)
|
| System Monitoring |
- Overheat LED and Alarm
- Fan Failure LED and Alarm
- Drive Activity LED and Failure LED
|
| Daughter Card |
|
| Cables |
- HBA SFF-8484 to Backplane Fan-out Cable (Included)
- Cascade Crossover Cable (Optional)
|
Included Parts List:
| |
Part Number |
Qty |
Description |
| Cable(s) |
CBL-0103L
CBL-0116L |
1
1 |
4-LANE SAS TO SATA CROSS-OVER 50CM,PBF
FP36K21-16-0F,IPASS TO 4SATA,CROSS OVER, PBF |
| Backplane |
CSE-SAS-M28E |
1 |
2.5"x8 SAS backplane w/expender slot |
| Mobile Rack |
CSE-M28P |
1 |
8 drive SAS mobile rack cage |
| Drive Trays |
CSE-PT84L |
8 |
2.5" HARD DRISK ASSEMBLY, PB FREE |
| Cooling Fan |
FAN-0084 |
1 |
FAN ASSY. M28 80x38 4200RPM |
| Part |
CSE-EXP-M28E2 |
1 |
LSI expender x 24 for SAS M28E |
| Manual |
MNL-0793 |
1 |
M28E1 / M28E2 MANUAL |
|
