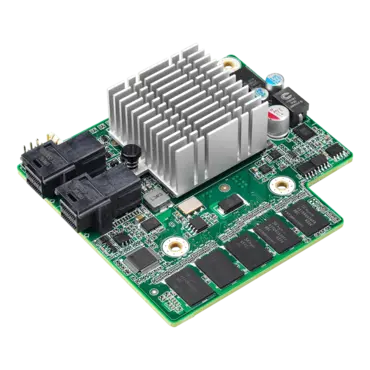

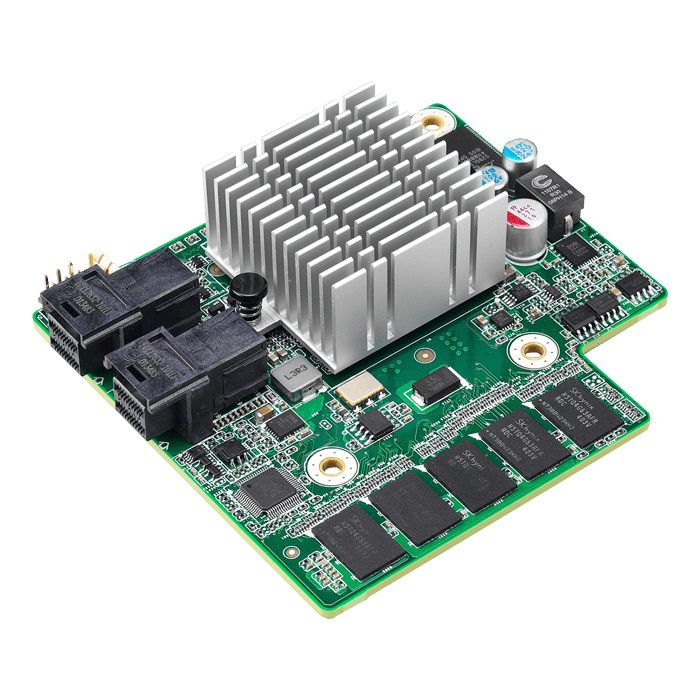

M7076-3108-8I, LSI 3108, SAS 12Gb/s, 8-port, RAID Controller with 1GB Cache
Quantity:
- SKU: 11527296
- Manufacturer: TYAN
- MPN: M7076-3108-8I
- Availability: CONTACT US
Starting At
$821.10
| TYAN M7076-3108-8I (M7076-3108-8I (BTO)) Specifications | |||
|---|---|---|---|
| SAS controller | Controller | LSI SAS3108 | |
| Data Transfer Rate | Up to 12Gb/s per port | ||
| Connector | Type/ Q'ty | (2) x4 internal mini-SAS HD connectors (SFF-8643) | |
| Device Support | Type/ Q'ty | Up to (8) SAS 12Gb/s or SATA 6Gb/s devices | |
| Host Bus Type | Interface | PCI-E Gen3 x8 host interface | |
| Recommended TYAN products | MB | S7076 | |
| BB | GT62B-B7076 / GT24B-B7076 | ||
| RAID | Level | RAID 0, 1, 10, 5 and 50 support (optional F/W key for RAID 6, RAID 60) | |
| Data Protection Features | Hot spare/ Auto Configuration / Fast initialization for array setup / RAID support before operating system loaded / Auto resume during array rebuild | ||
| Cache | Capacity | 1GB DDR3 | |
| Physical Dimension | Form Factor | TYAN Prop. | |
| Board Dimension | 3.31"x3.52" (84x89.5mm) | ||
| Regulation | CE (DoC) | Yes | |
| Operating Environment | Operating Temp. | 10° C ~ 35° C (50° F~ 95° F) | |
| In/Non-operating Humidity | 5%~95%, non-condensing | ||
| RoHS | RoHS 6/6 Compliant | Yes | |
| Package Contains | Card | (1) M7076-3108-8I Card | |
