M9a, 124.6mm Height, 120W TDP, Copper/Nickel CPU Cooler

Quantity:
  • SKU: 13590956
  • Manufacturer: CRYORIG
  • MPN: CR-M9a
  • Availability: CURRENTLY UNAVAILABLE
Starting At
$31.04

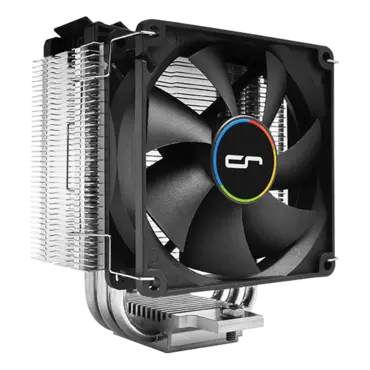

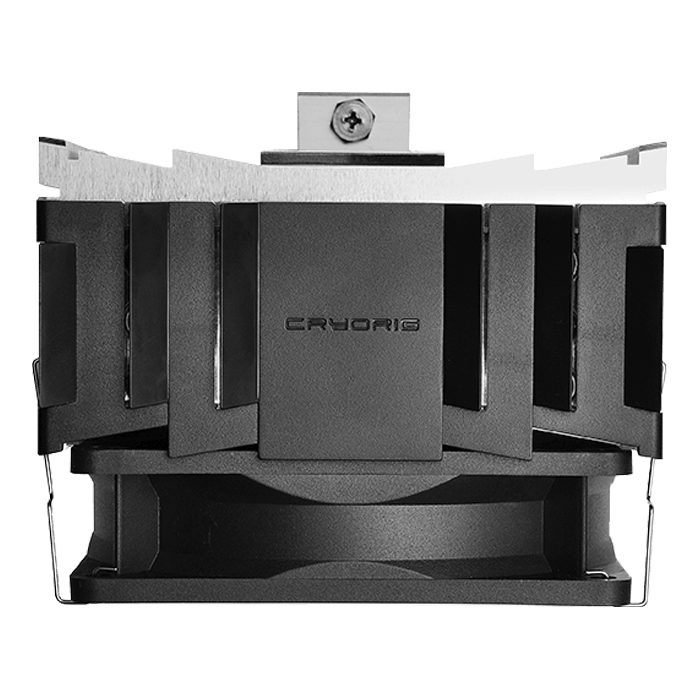

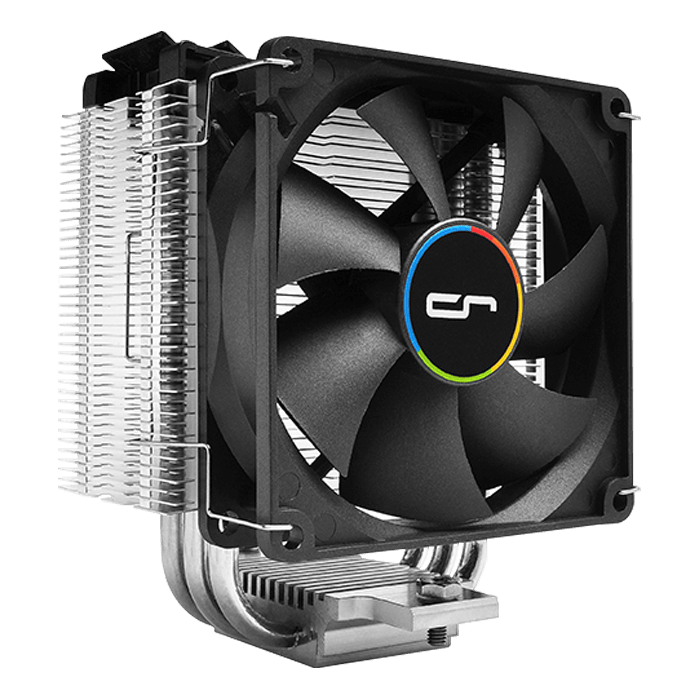

M9a, 124.6mm Height, 120W TDP, Copper/Nickel CPU Cooler

CRYORIG M9a (CR-M9a). Increased Air Exhaust Speed. Higher Cooling Efficiency. The CRYORIG M9i/M9a features CRYORIG proprietary Jet Fin Acceleration System™. By creating a structure of alternated fin stacks, the M9i/M9a has a wider air intake area and higher fin density air exhaust area to squeeze out air, heated air exits the system faster.

Heatsink Specification
Dimension ( with fan ) L87 mm x W102 mm x H124.6 mm
Weight ( with fan ) 425 g
Weight ( without fan ) 345 g
Heat pipes 6mm heatpipe x 3 units
Fin T = 0.4 mm ; Gap = 1.6 mm
Fin Pcs 40 pcs
Copper Base C1100 Pure copper nickel plated
RAM Height Limit Limitless
TDP 120 W
Fan Specification
Dimension L92 mm x W92 mm x H25.4 mm
Weight 80 g
Rated Speed 600 ~ 2200 RPM ±10 %
Noise Level 26.4 dBA
Air Flow 48.4 CFM
Air Pressure 3.1 mmH2O
Ampere 0.11 A
Motherboard Compatibility
Intel 1150, 1151, 1155, 1156, 1200
What's In The Box M9 x 1
AM4 Screw Pillar x 4
AM4 Mounting Plate x 1
Thumb Screw Caps x 4
Anti Vibration Strips x 2
CP-15 x 1
Installation Guide x 1
