MAG A1000GL PCIE5
- ATX 3.1 ready, native dual-color PCIe CEM 5.1 connector
- Supports NVIDIA® GeForce RTX™ 40 series graphics cards
- Fully modular design, flat cables
- 80 PLUS Gold certified for high efficiency
- Active PFC design
- Protection with OVP / OCP / OPP / OTP / SCP / UVP
- 135 mm fluid dynamic bearing fan
- LLC full bridge topology with DC-to-DC module design
MODULAR | Yes (fully modular) |
FAN BEARING | Fluid Dynamic Bearing |
POWER WATT | 1000W |
INPUT VOLTAGE RANGE | 100-240V~ |
POWER EXCURSION | 2000W (*up to 200% of the PSU's rated power for 100μs) |
INPUT FREQUENCY | 50-60Hz |

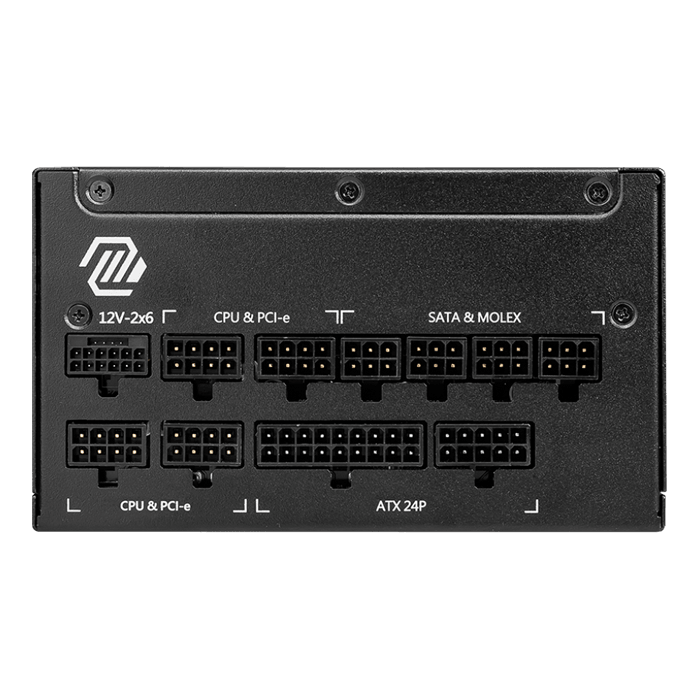

ATX (24 PIN) | 1 |
EFFICIENCY | 80 PLUS Gold (up to 90%) |
EPS (4+4 PIN) | 2 |
PCI-E 5.1 (16 PIN) | 1 (600W) |
FAN SIZE | 135 mm |
DIMENSION | 150 x 150 x 86 mm |
PCI-E (6+2 PIN) | 4 |
PFC TYPE | Active PFC |
SATA (15 PIN) | 12 |
PROTECTION | OCP / OVP / OPP / OTP / SCP / UVP |
MOLEX (4 PIN) | 4 |
FDD (4 PIN) | 1 |
UPC | 0824142339763 |
