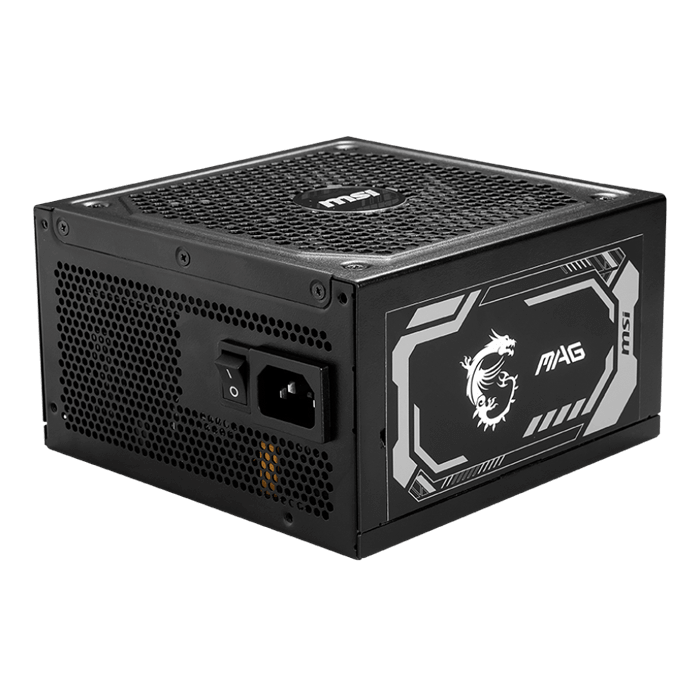

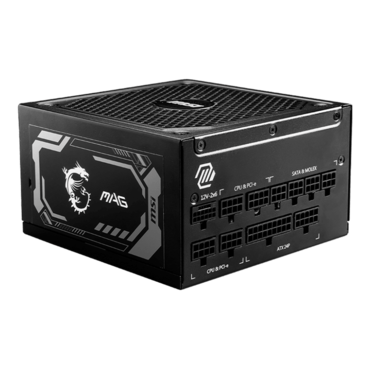

MAG A1250GL PCIE5, 80 PLUS Gold 1250W, Fully Modular, ATX Power Supply

Quantity:
  • SKU: 17321057
  • Manufacturer: MSI
  • MPN: MAGA1250GLPCIE5
  • Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$169.74
Quantity:

MAG A1250GL PCIE5

  • ATX 3.1 ready, native dual-color PCIe CEM 5.1 connector
  • Supports NVIDIA® GeForce RTX 40 series graphics cards
  • Fully modular design, flat cables
  • 80 PLUS Gold certified for high efficiency
  • Active PFC design
  • Protection with OVP / OCP / OPP / OTP / SCP / UVP

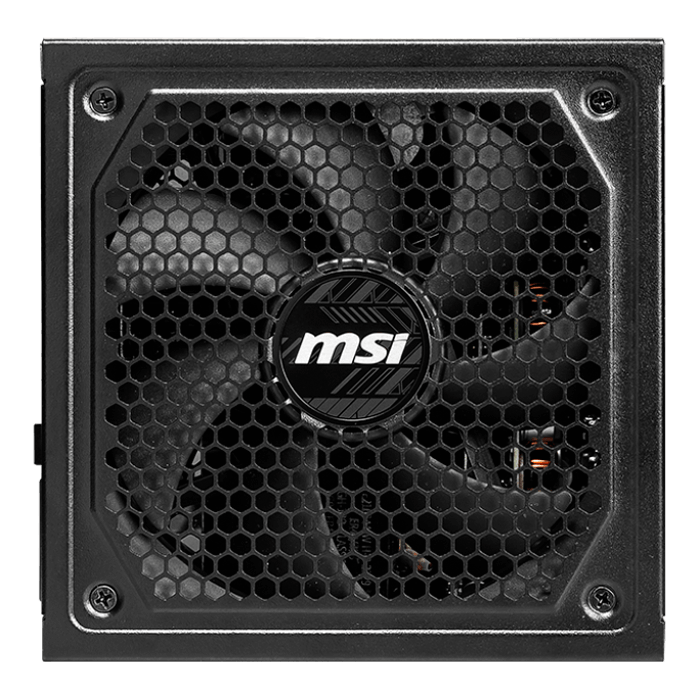

  • 135 mm fluid dynamic bearing fan
  • LLC full bridge topology with DC-to-DC module design
MODULAR Yes (fully modular)
FAN BEARING Fluid Dynamic Bearing
POWER WATT 1250W
INPUT VOLTAGE RANGE 100-240V~
POWER EXCURSION 2500W (*up to 200% of the PSU's rated power for 100μs)
INPUT FREQUENCY 50-60Hz

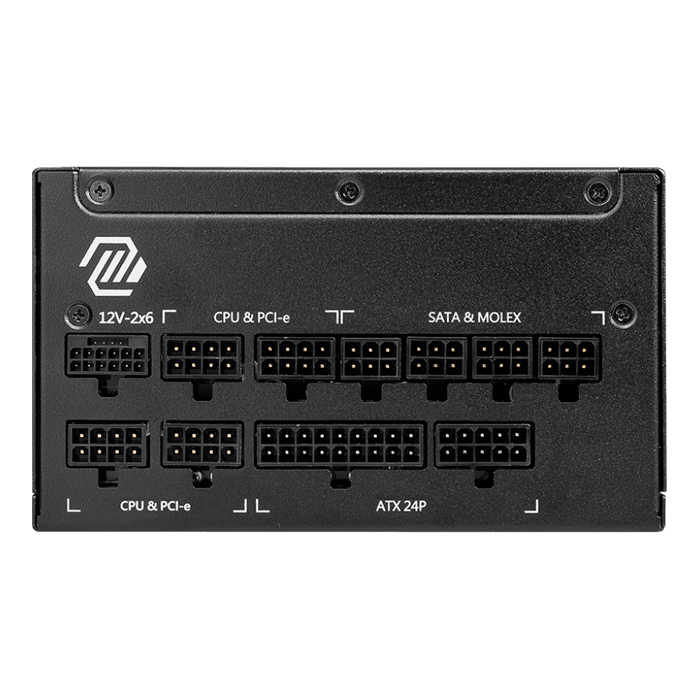

ATX (24 PIN) 1
EFFICIENCY 80 PLUS Gold (up to 90%)
EPS (4+4 PIN) 2
PCI-E 5.1 (16 PIN) 1 (600W)
FAN SIZE 135 mm
DIMENSION 150 x 150 x 86 mm
PCI-E (6+2 PIN) 4
PFC TYPE Active PFC
SATA (15 PIN) 12
PROTECTION OCP / OVP / OPP / OTP / SCP / UVP
MOLEX (4 PIN) 4
FDD (4 PIN) 1
UPC 0824142339756
