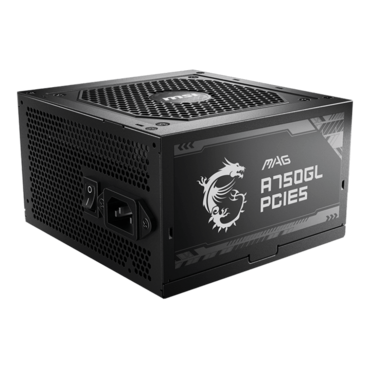

MAG A750GL PCIE5, 80 PLUS Gold 750W, Full Modular, ATX Power Supply
- SKU: 16322041
- Manufacturer: MSI
- MPN: MAGA750GLPCIE5
- Availability: TEMPORARILY OUT OF STOCK
Price
$83.50
- ATX 3.0 compatible, native PCIe 5.0 connector
- Supports NVIDIA® GeForce RTXTM 40 Series graphics cards
- Full modular design,Flat cables
- 80 Plus Gold certified for high efficiency
- Active PFC design,Industrial level protection with OVP,OCP,OPP,OTP, SCP,UVP

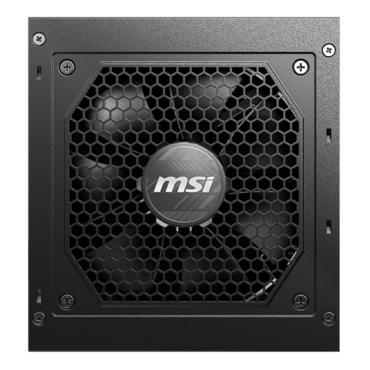

- 120mm Fluid Dynamic Bearing Fan
- LLC Full Bridge Topology with DC-DC module design
| EFFICIENCY RATING | 80 PLUS Gold (up to 90%) |
| MODULAR | Yes (full modular) |
| FAN SIZE | 120 mm |
| FAN BEARING | Fluid Dynamic Bearing |
| DIMENSIONS (DXWXH) | 140 x 150 x 86 mm |
| PFC TYPE | Active PFC |
| INPUT VOLTAGE RANGE | 100~240 VAC |
| POWER WATT | 750W |
| POWER EXCURSION | 1500W (*up to 200% of the PSU's rated power for 100μs) |
| INPUT FREQUENCY RANGE | 47-63Hz |
| PROTECTION | OCP / OVP / OPP / OTP / SCP / UVP |

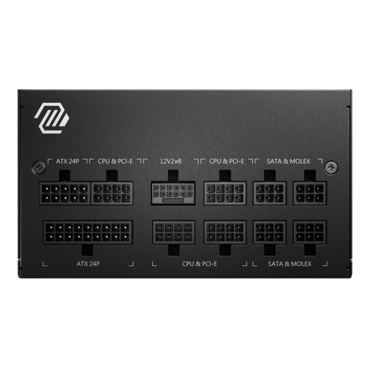

| ATX (24 PIN) | 1 |
| EPS (4+4 PIN) | 2 |
| PCI-E 5.0 (16 PIN) | 1 |
| PCI-E (6+2 PIN) | 3 |
| SATA (15 PIN) | 8 |
| MOLEX (4 PIN) | 4 |
| FDD (4 PIN) | 1 |
