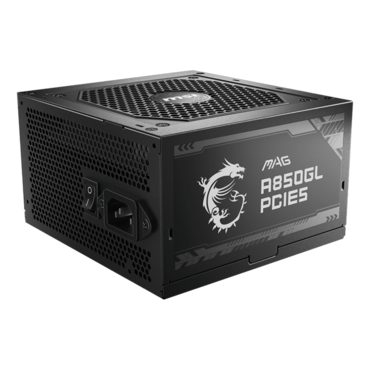

MAG A850GL PCIE5, 80 PLUS Gold 850W, Fully Modular, ATX Power Supply
Quantity:
- SKU: 16322042
- Manufacturer: MSI
- MPN: MAGA850GLPCIE5
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$140.73
MAG A850GL PCIE5, 80 PLUS Gold 850W, Fully Modular, ATX Power Supply
ATX 3.0 COMPATIBLE
It has an output port that is compliant with PCIe 5.0 and Intel PSDG(Power Supply Design Guide) ATX 3.0, also the MAG A850GL PCIE5 power supply can handle up to 2x total power excursion and 3x GPU power excursion.
- ATX 3.0 compatible, native PCIe 5.0 connector
- Supports NVIDIA® GeForce RTX™ 40 Series graphics cards

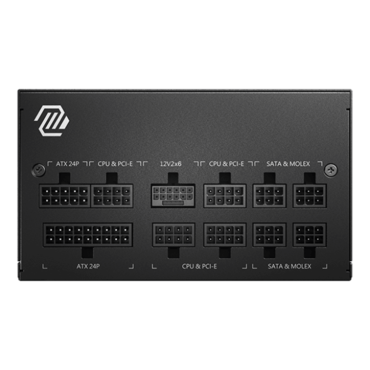

- Full modular design,Flat cables
- 80 Plus Gold certified for high efficiency
- Active PFC design,Industrial level protection with OVP,OCP,OPP,OTP, SCP,UVP

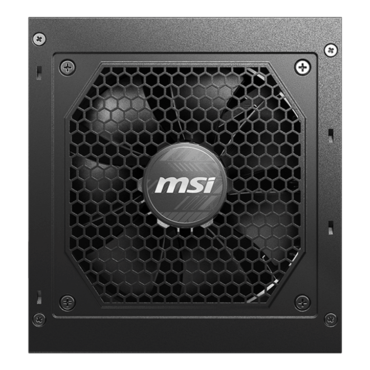

- 120mm Fluid Dynamic Bearing Fan
- LLC Full Bridge Topology with DC-DC module design
| Modular | Yes (full modular) | ||||
| Fan Bearing | Fluid Dynamic Bearing | ||||
| Maximum CPU Cooler Height | 185mm / 7.28 inches | ||||
| Power Watt | 850W | ||||
| Input Voltage Range | 100~240 VAC | ||||
| Power Excursion | 1700W (*up to 200% of the PSU's rated power for 100μs) | ||||
| Input Frequency | 47-63Hz | ||||
| ATX (24 pin) | 1 | ||||
| Efficiency | 80 PLUS Gold (up to 90%) | ||||
| EPS (4+4 PIN) | 2 | ||||
| Fan Size | 120 mm | ||||
| PCI-E 5.0 (16 pin) | 1 (600W) | ||||
| Dimension | 140 x 150 x 86 mm | ||||
| PCI-E (6+2 pin) | 4 | ||||
| PFC Type | Active PFC | ||||
| SATA (15 pin) | 8 | ||||
| Protection | OCP / OVP / OPP / OTP / SCP / UVP | ||||
| MOLEX (4 pin) | 4 | ||||
| FDD (4 pin) | 1 | ||||
| UPC | 0824142319222 | ||||
| SPECIFICATION / FICHE TECHNIQUE | |||||
| AC Input | 100-240V~, 12A , 47-63Hz | ||||
| DC Output | +5V | +3.3V | +12V | -12V | +5Vsb |
| 20.0A | 20.0A | 70.5A | 0.3A | 2.5A | |
| Total Power | 110W | 846W | 3.6W | 12.5W | |
| 850W | |||||
