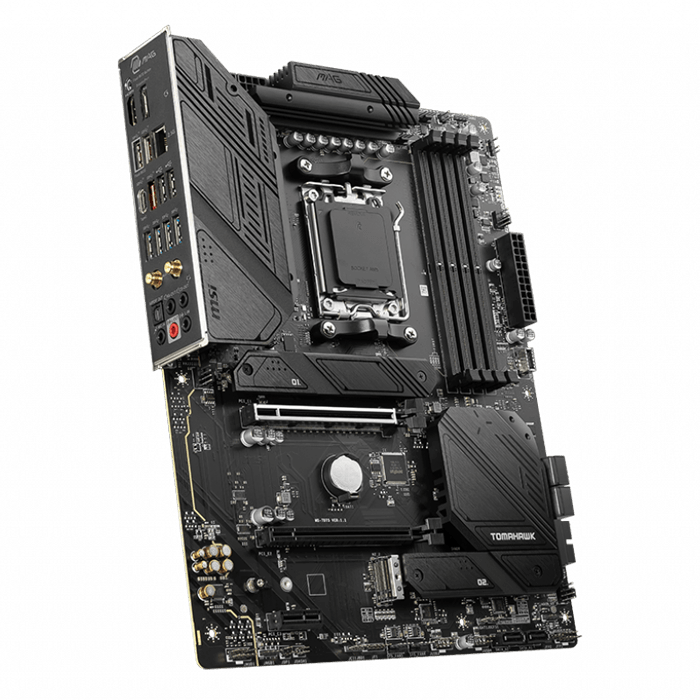

MAG B650 TOMAHAWK WIFI, AMD B650 Chipset, AM5, ATX Motherboard

Quantity:
  • SKU: 15154532
  • Manufacturer: MSI
  • MPN: B650TOMAHAWKWIFI
  • Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$190.46
Quantity:
MAG B650 TOMAHAWK WIFI, AMD B650 Chipset, AM5, ATX Motherboard

The MAG series fights alongside gamers in pursuit of honor. With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.

  • Supports AMD Ryzen™ 7000 Series Desktop Processors
  • Supports DDR5 Memory, up to 6400+(OC) MHz
  • Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
  • 2.5G LAN and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • Lightning M.2: Running at PCIe Gen 4 maximizes performance for NVMe based SSDs
  • Lightning USB 20G: Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1
  • AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
Chipset AMD B650
CPU SUPPORT Supports AMD Ryzen™ 7000 Series Desktop Processors
Socket AM5
Memory 4x DDR5, Maximum Memory Capacity 128GB
Memory Support DDR5 6600+(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200(OC)/5000(OC)/4800(JEDEC) MHz
Onboard Graphics 1x HDMI™
1x DisplayPort
Support HDMI TM 2.1 with HDR, maximum resolution of 4K 60Hz*
Support DP 1.4, maximum resolution of 8K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
EXPANSION SLOT 2x PCI-E x16 slot
Support x16/ x4
1x PCI-E x1 slot
PCI_E1 PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 PCIe 4.0 supports up to x4 (From Chipset)
PCI_E3 PCIe 3.0 supports up to x1 (From Chipset)
Storage 3x M.2 slot
M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_2 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_3 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
6x SATA 6G port
RAID Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices*
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
* SATA_A1_A2 do not support RAID function.
USB 2x USB 2.0 (Rear)
4x USB 2.0 (Front)
4x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)
3x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Front)
1x USB 3.2 Gen2x2 Type C (Rear)
LAN Realtek ® RTL8125B 2.5Gbps LAN
WIRELESS / BLUETOOTH AMD Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX
Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth ® 5.2**

" * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 21H1 and Windows 11.
** Bluetooth 5.2 will be ready in Windows 10 build 21H1 and Windows 11.
"
Audio Realtek ® ALC4080 Codec
7.1-Channel High Performance Audio
Supports S/PDIF output
Supports up to 32-Bit/384 kHz playback on front panel
Internal I/O 1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
6x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
2x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0
2x USB 3.2 Gen1 Type A
1x USB 3.2 Gen2 Type C
LED FEATURE 4x EZ Debug LED
BACK PANEL PORTS 1x DisplayPort 1.4
1x 2.5G LAN Port
2x USB 2.0 Port
4x USB 3.2 Gen 1 5Gbps Type-A
2x Wi-Fi / Bluetooth Antenna
5x HD Audio Connectors
1x Flash BIOS Button
1x HDMI™ 2.1 Port
3x USB 3.2 Gen 2 10Gbps Type-A
1x USB 3.2 Gen 2x2 20Gbps Type-C
1x Optical S/PDIF OUT
OPERATING SYSTEM Support for Windows ® 11 64-bit, Windows ® 10 64-bit
PCB Dimension ATX
243.84mmx304.8mm
