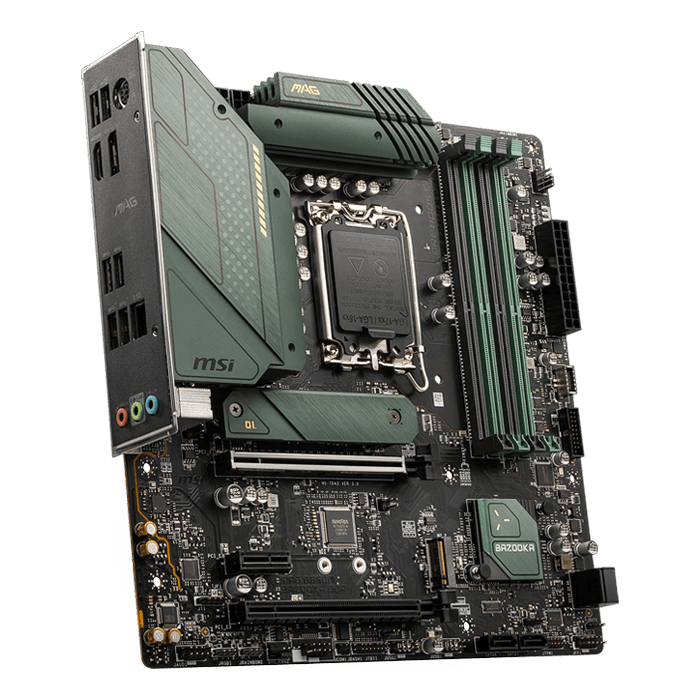

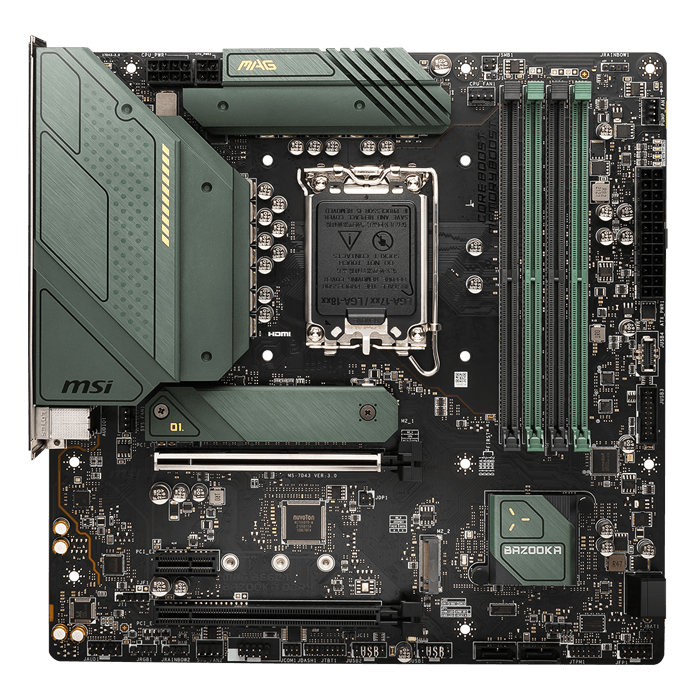

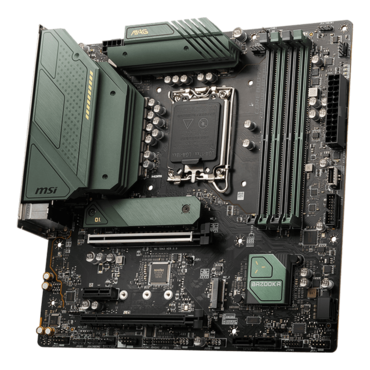

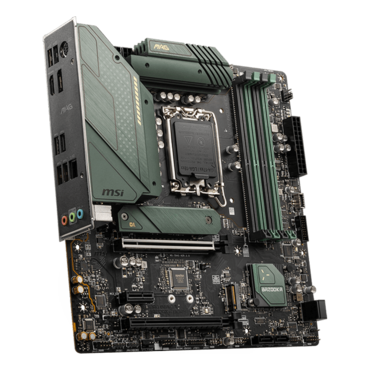

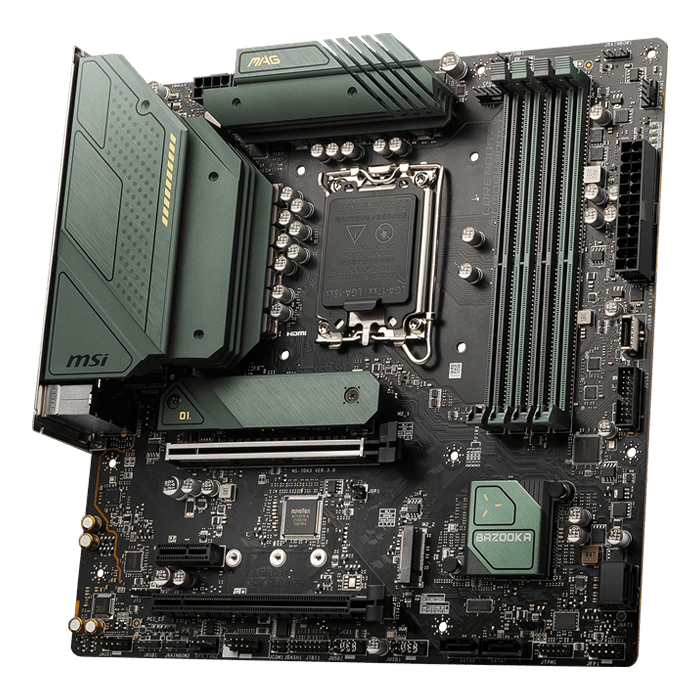

MAG B660M BAZOOKA DDR4, Intel® B660 Chipset, LGA 1700, DP, microATX Motherboard

Quantity:
  • SKU: 14826789
  • Manufacturer: MSI
  • MPN: B660MBZKAD4
  • Availability: TEMPORARILY OUT OF STOCK
Starting At
$164.11
Quantity:
MAG B660M BAZOOKA DDR4, Intel® B660 Chipset, LGA 1700, DP, microATX Motherboard

PRE-INSTALLED IO SHIELD

Featuring the pre-installed IO shield, makes your installation process easier and safer. The patent-pending design protect your IO ports and also prevent electrostatic discharge damage, makes your motherboard a strong gaming foundation.

  • Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
  • Supports DDR4 Memory, up to 4800+(OC) MHz
  • Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
  • Latest Network Solution: Onboard 2.5G LAN plus Gigabit LAN with LAN Manager deliver the best online experience without lag
  • Lightning M.2: Running at PCIe Gen 4 maximizes performance for NVMe based SSDs
  • Audio Boost: Reward your ears with studio grade sound quality
  • Multi-GPU: With Steel armor PCIe slots. Supports AMD Crossfire™
Processor
  • Supports 12th Gen Intel ® Core™ Processors 1
  • Processor socket LGA1700
  1. Please go to www.msi.com to get the newest support status as new processors are released
Chipset

Intel ® B660 Chipset

Memory
  • 4x DDR4 memory slots, support up to 128GB 1
  • Supports 1R 2133/ 2666/ 3200 MHz (by JEDEC & POR)
  • Max overclocking frequency:
    • 1DPC 1R Max speed up to 4800+ MHz
    • 1DPC 2R Max speed up to 4000+ MHz
    • 2DPC 1R Max speed up to 4000+ MHz
    • 2DPC 2R Max speed up to 3600+ MHz
  • Supports Dual-Channel mode
  • Supports non-ECC, un-buffered memory
  • Supports Intel ® Extreme Memory Profile (XMP)
  1. Please refer to www.msi.com for more information on compatible memory.
Expansion Slot
  • 2x PCIe x16 slots
    • PCI_E1 slot (From CPU)
      • Supports PCIe 4.0 x16
    • PCI_E3 slot (From B660 Chipset)
      • Supports PCIe 3.0 x4
  • 1x PCIe 3.0 x1 slot (From B660 chipset)
Multi-GPU
  • Supports 2-Way AMD ® CrossFire™ Technology
Onboard Graphics
  • 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1 / 2
  • 1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz 1 / 2
  1. Available only on processors featuring integrated graphics.
  2. Graphics specifications may vary depending on the CPU installed.
Storage
  • 4x SATA 6Gb/s ports (SATA5~8, from B660 Chipset) 1
  • 2x M.2 slots (Key M)
    • M2_1 slot (From CPU)
      • Supports PCIe 4.0 x4
      • Supports 2242/ 2260/ 2280 storage devices
    • M2_2 slot (From B660 Chipset) 1
      • Supports PCIe 4.0 x4
      • Supports SATA 6Gb/s
      • Supports 2242/ 2260/ 2280 storage devices
      • Supports Intel ® Optane™ Memory
  • Supports Intel ® Smart Response Technology for Intel Core™ processors
  1. SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
RAID
  • Supports RAID 0, RAID 1 , RAID 5 and RAID 10 for SATA storage devices
USB Intel ® B660 Chipset
  • 2x USB 3.2 Gen 2 10Gbps Type-A ports on the back panel
  • 3x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 1 Type-C available through the internal connector)
  • 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 Type-A ports available through the internal connectors)
Asmedia ASM1074
  • 2x USB 3.2 Gen 1 5Gbps Type-A ports through the internal connector
Audio Realtek ® ALC897 Codec
  • 7.1-Channel High Definition Audio
LAN
  • 1x Realtek ® 8125BG 2.5Gbps LAN controller
Internal connectors
  • 1x 24-pin ATX main power connector
  • 1x 8-pin ATX 12V power connector
  • 1x 4-pin ATX 12V power connector
  • 4x SATA 6Gb/s connectors
  • 2x M.2 slots (M-Key)
  • 1x USB 3.2 Gen 1 5Gbps Type-C port
  • 1x USB 3.2 Gen 1 5Gbps Type-A connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
  • 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 1x 4-pin CPU fan connector
  • 1x 4-pin water-pump fan connector
  • 2x 4-pin system fan connectors
  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x Chassis Intrusion connector
  • 1x TPM module connector
  • 1x Clear CMOS jumper
  • 1x TBT connector (supports RTD3)
  • 1x Serial port
  • 1x Tuning Controller connector
LED Feature
  • 1x 4-pin RGB LED connector
  • 2x 3-pin RAINBOW LED connectors
  • 4x EZ Debug LED
Back panel ports
  • 1x Keyboard / Mouse
  • 1x DisplayPort
  • 1x 2.5G LAN
  • 3x Audio Connectors
  • 2x USB 2.0
  • 1x HDMI
  • 2x USB 3.2 Gen 1 5Gbps Type-A
  • 2x USB 3.2 Gen 2 10Gbps Type-A
Dimensions
  • Micro-ATX Form Factor
  • 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
