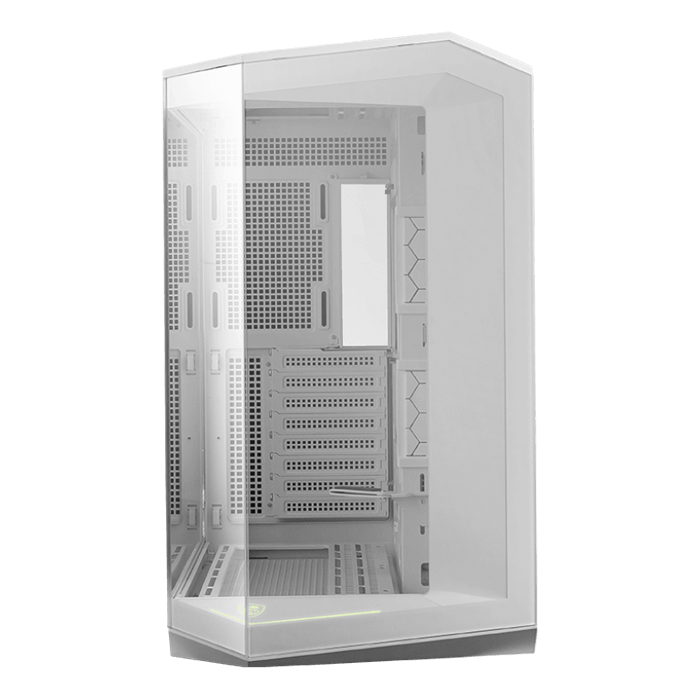

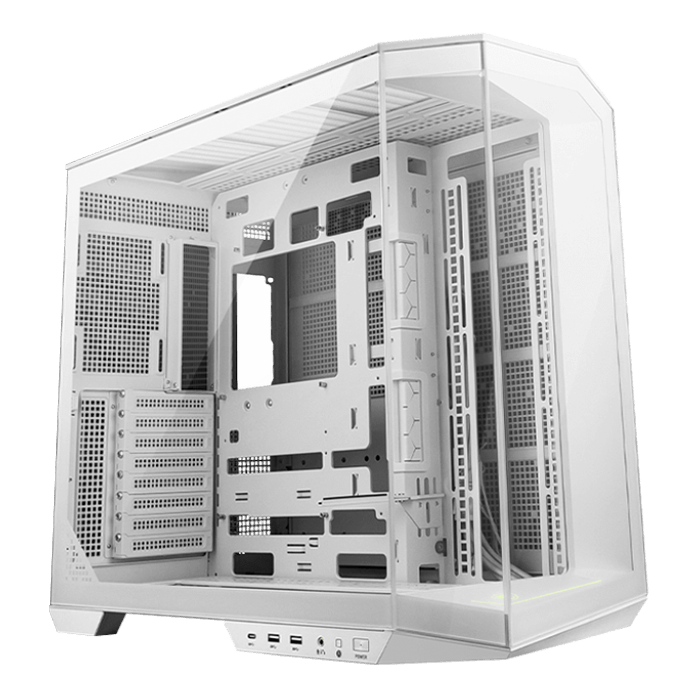

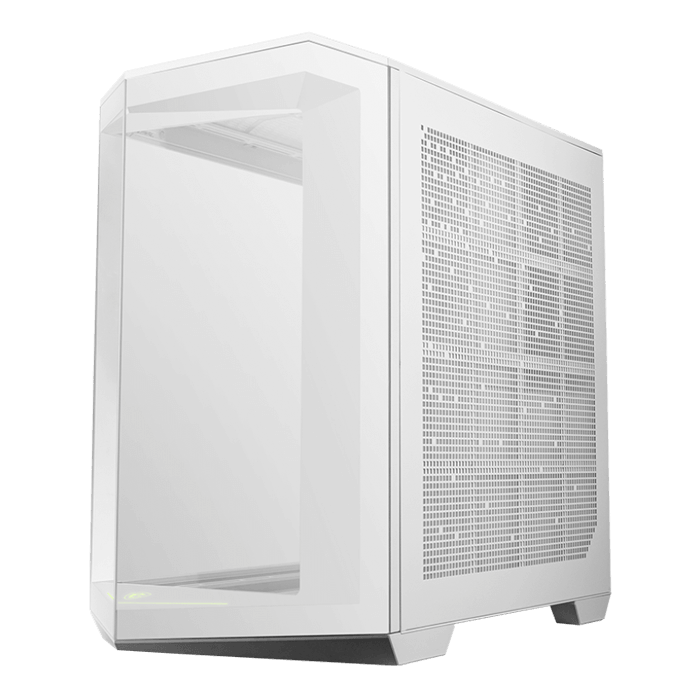

MAG PANO 100L PZ, Tempered Glass, No PSU, ATX, White, Mid Tower Case
Quantity:
- SKU: 17753125
- Manufacturer: MSI
- MPN: PANO100LPZWHT
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$189.73
- Compatible with ATX and Micro-ATX Back-connect motherboard.
- Supports 360 mm radiator on the top, side and bottom
- 270-degree panoramic tempered glass.
- Supports up to 10 x 120 mm system fans.
- Synergize with a compatible MSI motherboard through bridging with a USB 20Gbps Type-C (20Gbps) port for high speed data transmission.
- Removable dust filter at the top, side and bottom being easily removed for cleaning.
- UNI front panel cable make your DIY process easier and create more possibilities to your system.
| PRODUCT NAME | MAG PANO 100L PZ |
| CASE FORM FACTOR | Mid Tower |
| MOTHERBOARD FORM FACTOR SUPPORT |
Regular: ATX / Micro-ATX / Mini-ITX Back-connect: ATX / Micro-ATX |
| I/O PORTS |
1 x USB 20Gbps Type-C 2 x USB 5Gbps Type-A 1 x Audio-Out / Mic-in 1 x Reset Button 1 x Power Button |
| DRIVE MOUNT SUPPORT |
3 x 2.5” 2 x 2.5”/3.5” combo |
| EXPANSION SLOTS | 8 |
| MAXIMUM GPU LENGTH | 380 mm / 14.96 inches |
| MAXIMUM CPU COOLER HEIGHT | 166 mm / 6.54 inches |
| POWER SUPPLY SUPPORT | ATX |
| MAXIMUM PSU LENGTH | 200 mm / 7.87 inches |
| FAN SIZE SUPPORT |
Top: 3 x 120 mm / 3 x 140 mm Front: NA Rear: 1 x 120 mm Side: 3 x 120 mm / 2 x 140 mm Bottom: 3 x 120 mm / 2 x 140 mm / 2 x 160 mm |
| RADIATOR SIZE SUPPORT |
Top: 120 / 240 / 360 mm Front: NA Rear: 120 mm Side: 120 / 240 / 360 mm Bottom: 120 / 240 / 360 mm |
| DIMENSIONS (DXWXH) | 518.7 x 290 x 482 mm / 20.42 x 11.42 x 18.98 inches |
| NET WEIGHT | 11.30 kg / 24.91 lbs |
| GROSS WEIGHT | 14.10 kg / 31.09 lbs |
| CONNECTION |
1x USB 3.2 Gen 2x2 Type-C 2x USB 3.2 Gen 1 Type-A Mic In/ Audio Out Reset Button Power Button |
