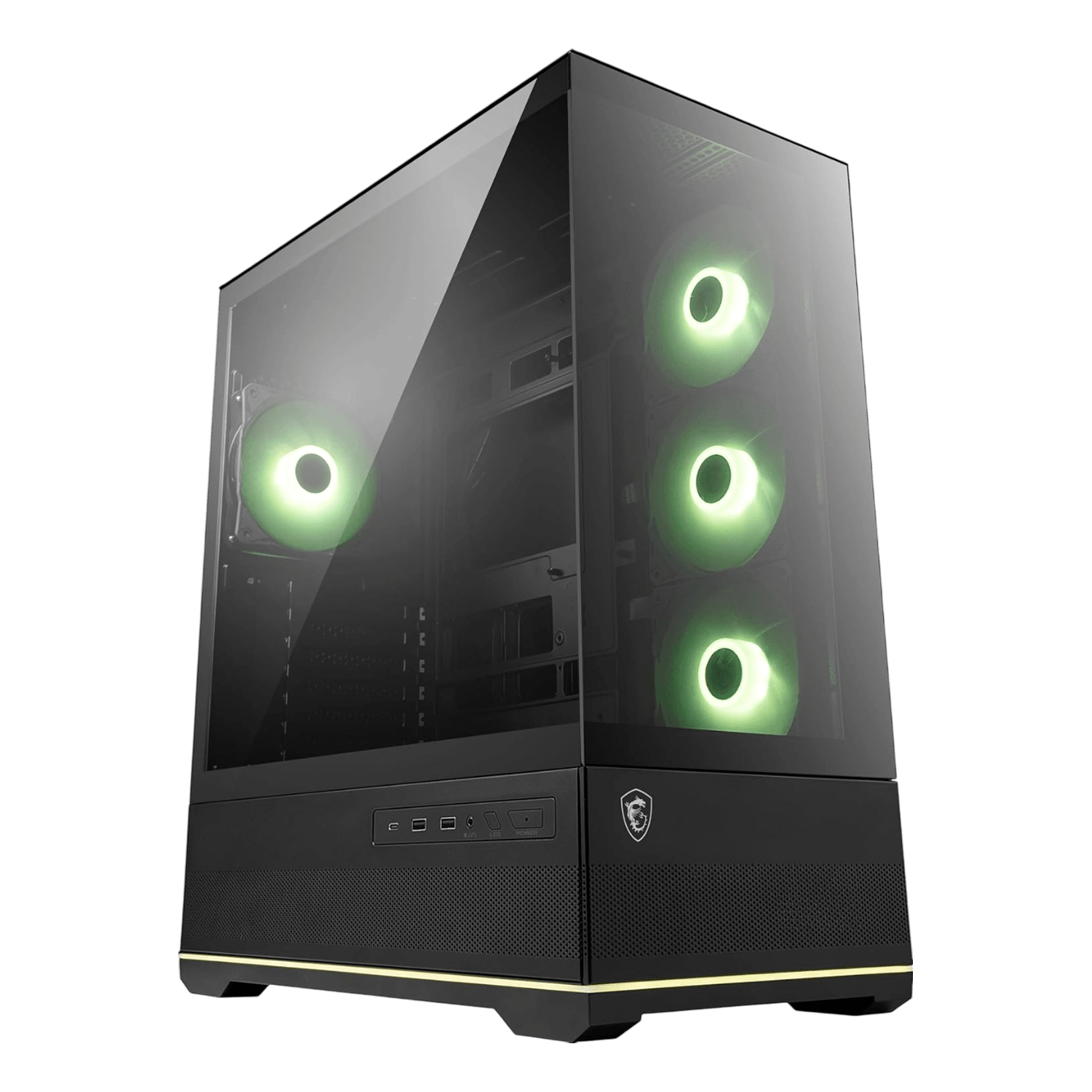

- 270-Degree Display: The chassis features a 270-degree panoramic design with tempered glass, providing an expansive view to showcase detailed components.
- Measurements: Supports multiple motherboard sizes, including regular ATX, Micro-ATX, Mini-ITX and back-connect ATX and Micro-ATX, allowing users to customize their PC setup.

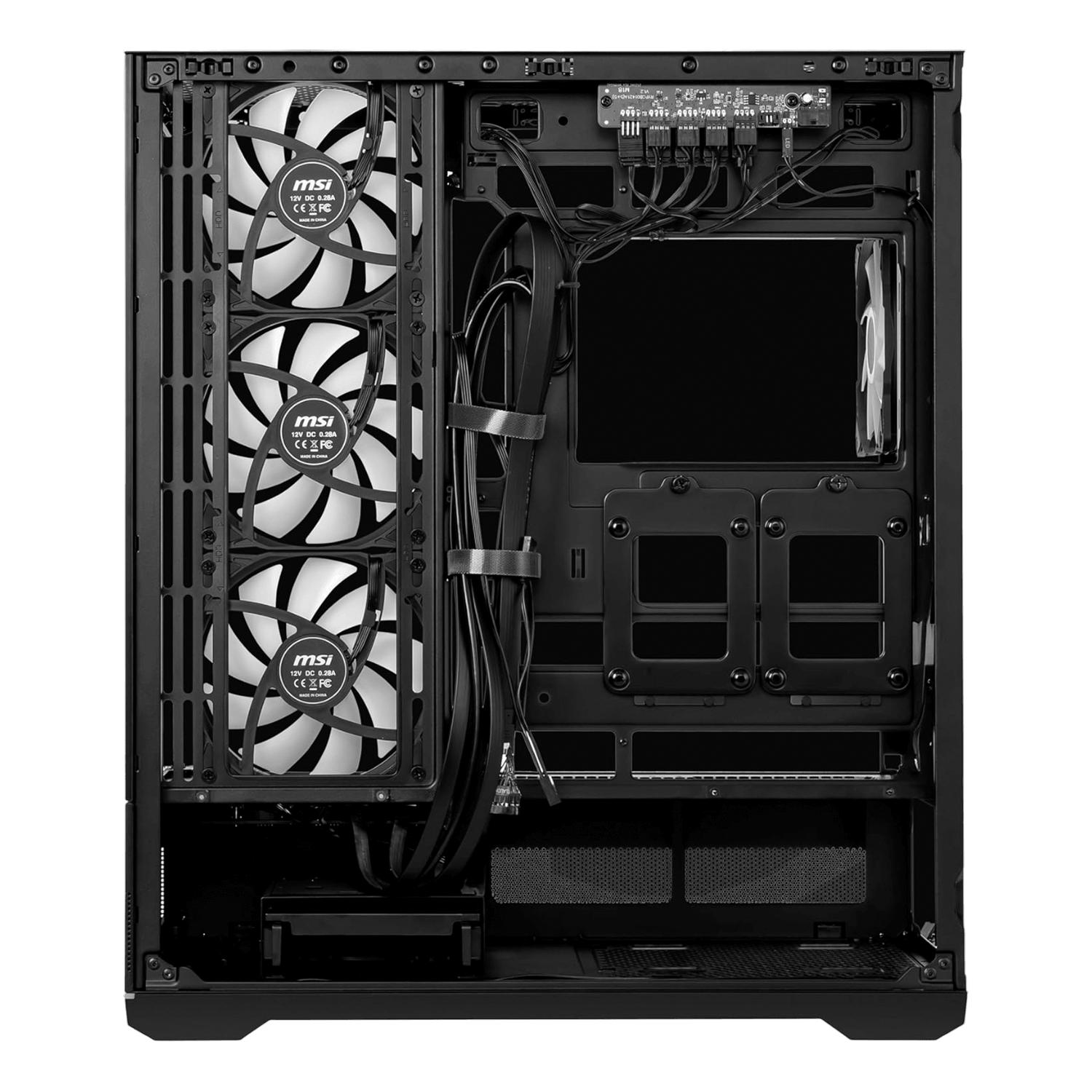

- Pre-build with Reverse Blades Fan: Pre-installed reverse blade fans on the side ensure an unobstructed display of the ARGB fan’s lighting effects, free from interference by fan frames.
- ARGB-Fan Control Board: The 1-to-5 ARGB fan control board supports up to 5 ARGB fans, allowing users to adjust 18 ARGB lighting effects with a single LED switch button
- Upgrade Airflow Layout: Supports up to 10 fans, a 360mm radiator on top and a 120mm radiator at rear. The lower chamber, surrounded by vents, further enhances heat dissipation for optimal performance.
Product Name | MAG PANO 110R PZ / WHITE |
Case Form Factor | Mid-Tower |
Motherboard Form Factor Support |
Regular: ATX / Micro-ATX / Mini-ITX Back-connect: ATX / Micro-ATX |
I/O Ports |
1 x USB 20Gbs (Type-C) 2 x USB 5Gbs (Type-A) 1 x Audio-Out / Mic-in 1 x LED Button 1 x Power Button |
Drive Mount Support |
2 x 2.5“ 2 x 3.5“ 2 x 2.5"/3.5" combo |
Expansion Slots | 7 |
Maximum GPU Length | 400 mm / 15.75 inches |
Maximum CPU Cooler Height | 160 mm / 6.30 inches |
Power Supply Support | ATX |
Maximum PSU Length | 200 mm / 7.87 inches |
Fan Size Support |
Top: 3 x 120 mm / 2 x 140 mm Front: NA Rear: 1 x 120 mm Side: 3 x 120 mm / 2 x 140 mm Bottom: 3 x 120 mm (Above the power shroud) |
Pre-installed Fan Size |
Side: 3 x 120 mm Rear: 1 x 120 mm |
Pre-installed Fan Type |
Side: 3 x ARGB Fan (Reverse Blades Fan) Rear: 1 x ARGB Fan |
Radiator Size Support |
Top: 120 / 140 / 240 / 280 / 360 mm Front: NA Rear: 120 mm Side: NA Bottom: NA |
Dimensions (DxWxH) | 420 x 225 x 485 mm / 16.54 x 8.86 x 19.09 inches |
