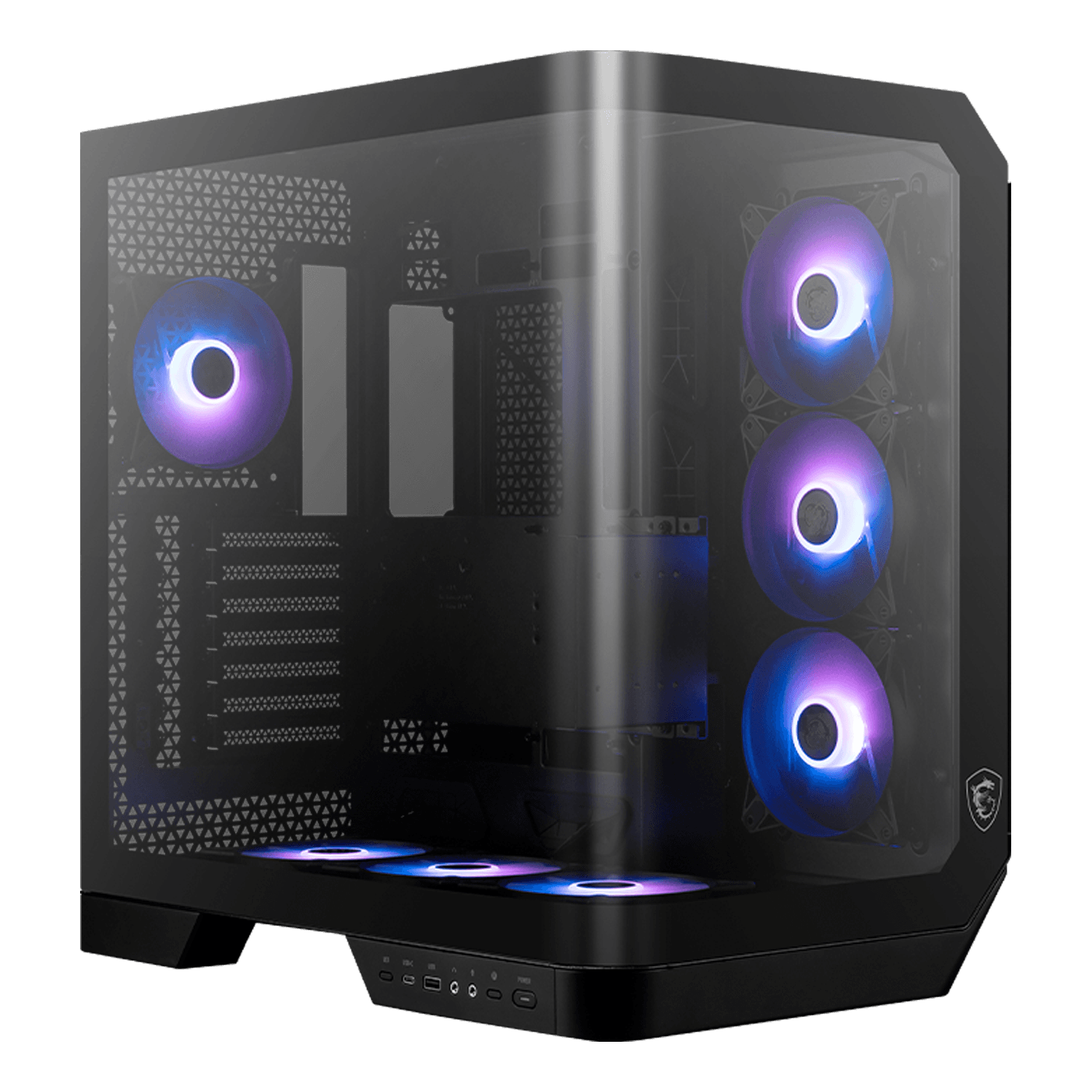

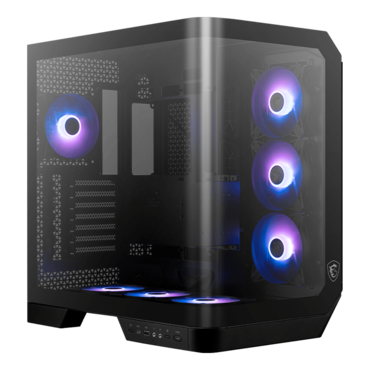

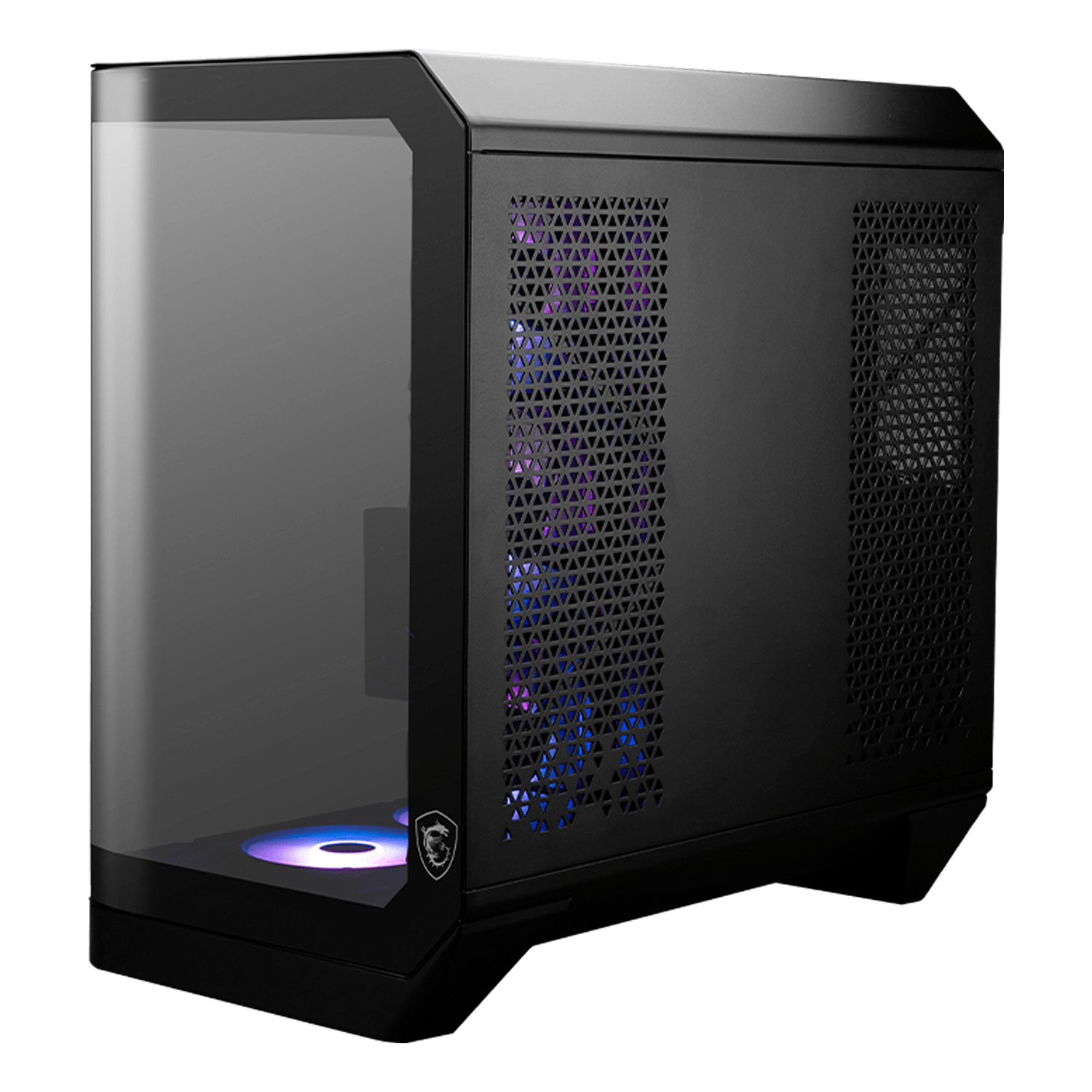

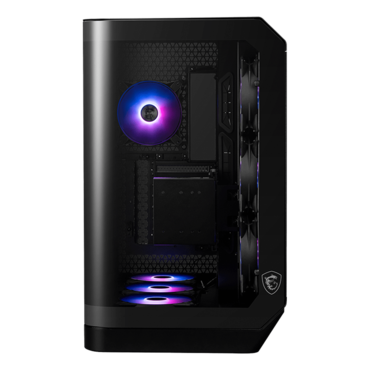

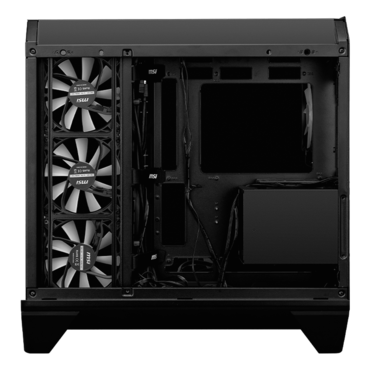

MAG PANO 120R PZ, Tempered Glass, No PSU, ATX, Black, Mid Tower Case
- SKU: 19191402
- Manufacturer: MSI
- MPN: PANO120RPZ
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Price
$250.86
- Can install up to 10 x system fans, providing ventilation and stable performance to the whole system.
- Compatible with ATX Back-connect motherboard.
- Support dual 360 mm radiator at the top and side simultaneously.
- Synergize with a compatible MSI motherboard through bridging with a USB 3.2 Gen 2x2 Type-C (20Gbps) port for high speed data transmission.
| Support MB Form Factor |
E-ATX (up to 305 x 280 mm) ATX (Back-connect supported) M-ATX / ITX |
| Form Factor | Mid-Tower |
| Product Name | MAG PANO 120R PZ |
| Drive Bays |
1x 2.5" SSD 2x 3.5" HDD |
| Dimension | 470 x 301 x 496 mm / 18.5 x 11.85 x 19.53 inches |
| I/O Ports |
1 x Power Button 1 x Reset Button 1 x USB 3.2 Gen 1 1 x USB 3.2 Gen 2x2 Type-C 1 x Audio-Out 1 x Mic-in 1 x LED Button |
| Pre-install Fan |
Top: N/A Front: N/A Rear: 1x 120mm PWM ARGB Fan (regular) Side: 3x 120mm PWM ARGB Fan (reverse-blade) Bottom: 3x 120mm PWM ARGB Fan (reverse-blade) |
| FAN SIZE SUPPORT |
Top: 3x 120 mm / 2x 140 mm Front: NA Rear: 1x 120 mm / 1x 140mm Side: 3x 120 mm Bottom: 3x 120 mm / 2x 140 mm |
| Maximum PSU Length | 200mm / 7.87 inches |
| Maximum GPU Length | 338 mm / 13.31 inches |
| Maximum CPU Cooler Length | 180 mm / 7.09 inches |
| Radiator Layout |
Top: 240 / 280 / 360 mm (thickness up to 55mm) Front: N/A Rear: 120 mm Side: 240 / 360 mm (thickness up to 55mm) Bottom: 240 / 360 mm (thickness up to 55mm) |
| Power Supply | ATX |
