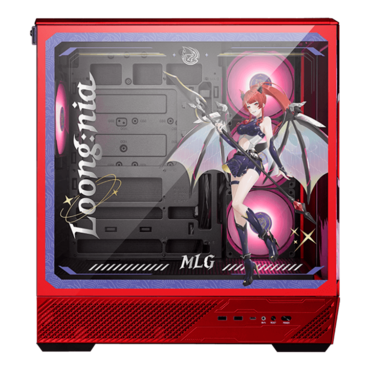

MAG PANO 130R MLG EDITION, Tempered Glass, No PSU, ATX, Red/Black, Mid Tower Case
- SKU: 19686514
- Manufacturer: MSI
- MPN: PANO 130R MLG EDITION
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Price
$218.61
- Support Back-Connect Motherboard: Supports ATX and Micro-ATX Back-Connect PROJECT ZERO motherboards, simplifying cable management for a clean, clutter-free, and aesthetically pleasing setup.
- Upgrade Airflow Layout: This model supports up to 10 fans and 360 mm radiator on top and side. The lower chamber also surrounded by vents further enhance heat dissipation for optimal performance.
- Dust Filter: Magnetic top and removable bottom dust filters enhance airflow while keeping your system clean, protecting internal components from dust buildup.
- Pre-build with Reverse Blades Fan: Pre-installed reverse blade fans on the side allow the unobstructed display of the ARGB fan's beauty without interference.
| Product Name | PANO 130R MLG EDITION |
| Case Form Factor | Mid-Tower |
| Motherboard Form Factor Support | Regular: ATX / Micro-ATX / Mini-ITX Back-connect: ATX / Micro-ATX |
| I/O Ports |
2 x USB 5Gbps (Type-A) 1 x USB 20Gbps (Type-C) 1 x Audio-Out / Mic-in 1 x Reset Button 1 x Power Button |
| Drive Mount Support |
Up to 3 x 2.5” SSD Up to 2 x 3.5” HDD (Maximum of 3 drives can be mounted at once, depending on configuration) |
| Expansion Slots | 7 |
| Maximum GPU Length | 400 mm / 15.75 inches |
| Maximum CPU Cooler Height | 165 mm / 6.50 inches |
| Power Supply Support | ATX |
| Maximum PSU Length | 180 mm / 7.09 inches |
| Fan Size Support |
Top: 3 x 120 mm / 2 x 140 mm Front: N/A Rear: 1 x 120 mm Side: 3 x 120 mm Bottom: 3 x 120 mm (Above the power shroud) |
| Pre-installed Fan Type | Rear: 1 x 120 mm ARGB Fan Side: 3 x 120 mm ARGB Fan (Reverse Blade Fan) |
| Radiator Size Support |
Top: 120 / 140 / 240 / 280 / 360 mm Front: N/A Rear: 120 mm Side: 120 / 240 / 360 mm Bottom: 1 x 360 mm (Above the power shroud) |
| Dimensions (DxWxH) | 460 x 232 x 490 mm / 18.11 x 9.25 x 19.29 inches |
| Net Weight | 8.38 kg / 18.47 lbs |
| Gross Weight | 10.5 kg / 23.15 lbs |
