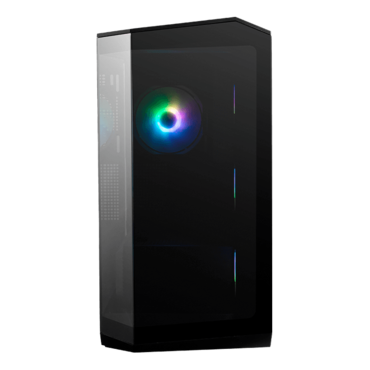

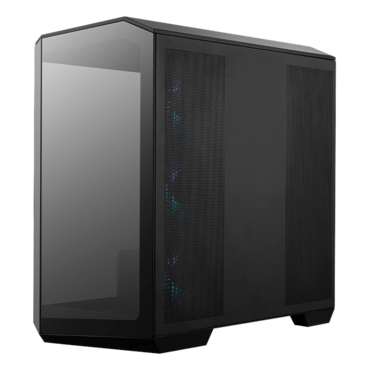

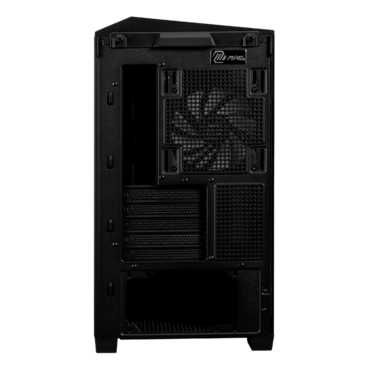

MAG PANO M100R PZ, Tempered Glass, No PSU, microATX, Black, Mini Tower Case

Quantity:
  • SKU: 17269922
  • Manufacturer: MSI
  • MPN: MAG PANO M100R PZ
  • Availability: TEMPORARILY OUT OF STOCK
Starting At
$145.70
Quantity:

MAG PANO M100R PZ / Black

  • Micro-ATX Back-connect motherboard compatible.
  • Supports up to 360 mm AIO liquid cooler on the top.
  • 270-degree panoramic tempered glass.
  • Supports up to 10 x 120 mm system fans.
  • Built-in 1-to-4 ARGB-PWM fans and control board, providing striking lighting and vivid lighting effects.
  • The Magnetic Dust Filter at the bottom being easily removed for cleaning.
  • DIY Friendly cables make your DIY process easier and create more possibilities to your system.
SUPPORT MB FORM FACTOR M-ATX(Back-connect supported) / ITX
FORM FACTOR Micro- ATX Tower
PRODUCT NAME MAG PANO M100R PZ / Black
DRIVE BAYS 1 x 2.5”
1 x 2.5”/3.5” combo
(up to 2 x 2.5” or 1 x 2.5”+ 1 x 3.5”)
DIMENSION 440 x 235 x 405 mm / 17.32 x 9.25 x 15.94 inches
WEIGHT 19.42 lbs
I/O PORTS 1 x USB 3.2 Gen 1 Type-A
1 x USB 3.2 Gen 2x2 Type-C
1 x Audio-Out / Mic-in
1 x LED Switch Button
1 x Power Button
CASE EXPANSION SLOTS 5

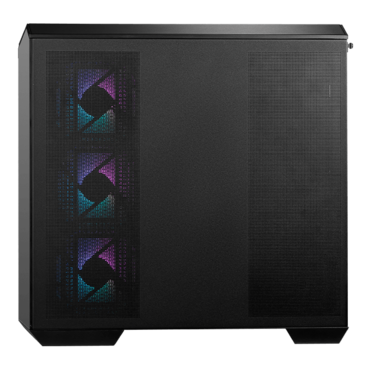

PRE-INSTALL FAN Side: 3 x 120 mm
Rear: 1 x 120 mm
FAN SIZE SUPPORT Top: 3 x 120 mm / 2 x 140 mm
Front: NA
Rear: 1 x 120 mm / 1 x 140 mm
Side: 3 x 120 mm
Bottom: 1 x 120 mm
PSU Shroud: 2 x 120 mm
MAXIMUM PSU LENGTH 200 mm / 7.87 inches
MAXIMUM GPU LENGTH 390 mm / 15.35 inches
*Support horizontal installation only.
MAXIMUM CPU COOLER LENGTH 175 mm / 6.9 inches
RADIATOR LAYOUT Top: 120 / 240 / 360 mm
Front: NA
Rear: 120 / 140 mm
Side: NA
Bottom: NA
LIGHTNING Side: 3 x ARGB Fan (Reverse-blade)
Rear: 1 x ARGB Fan
POWER SUPPLY Standard ATX
(PSU Not Included)
GROSS WEIGHT TBD
