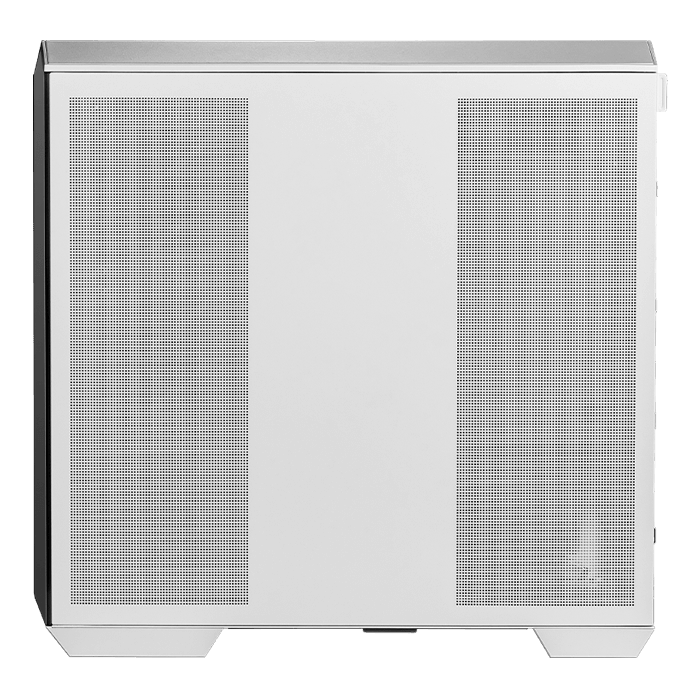

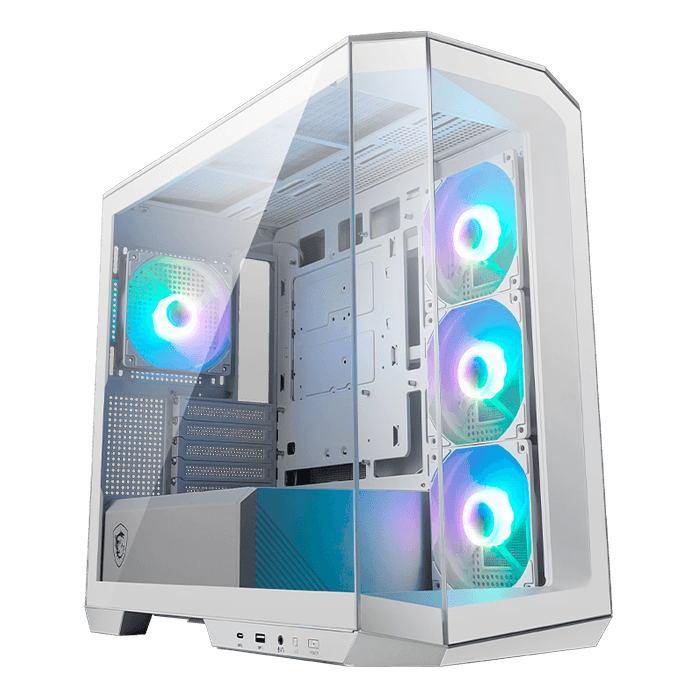

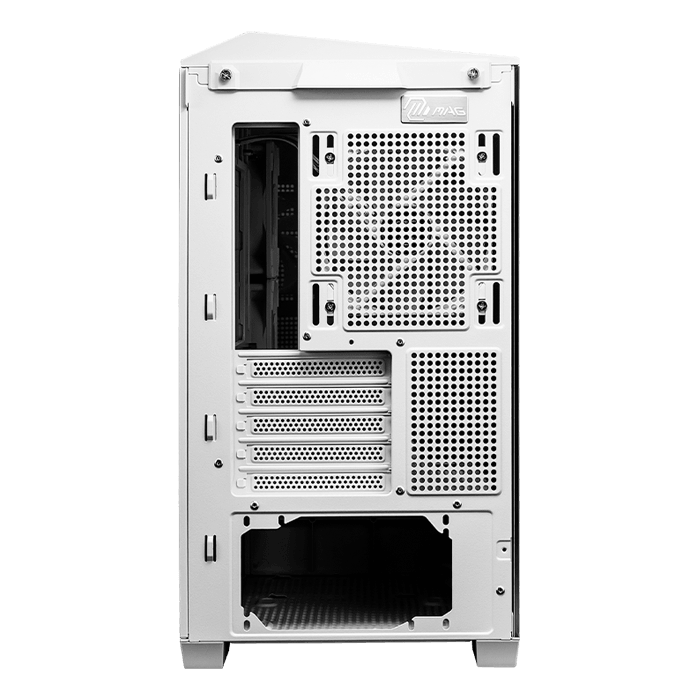

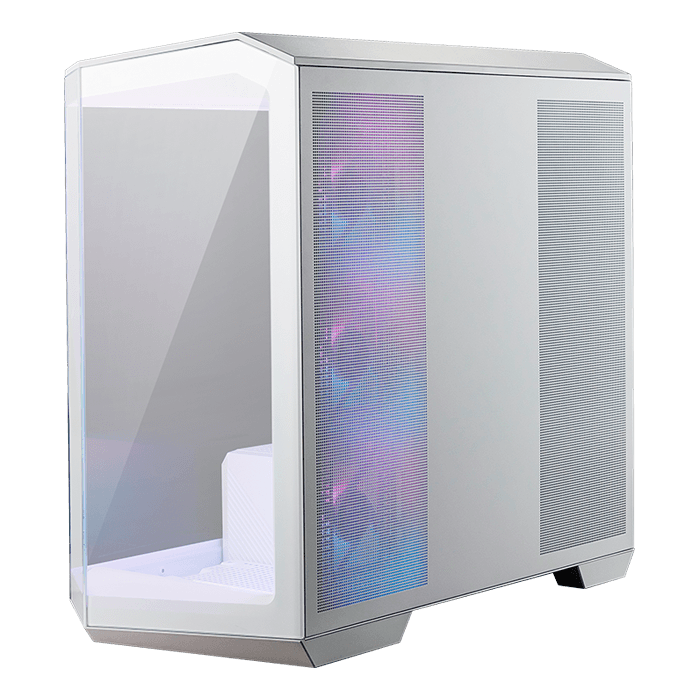

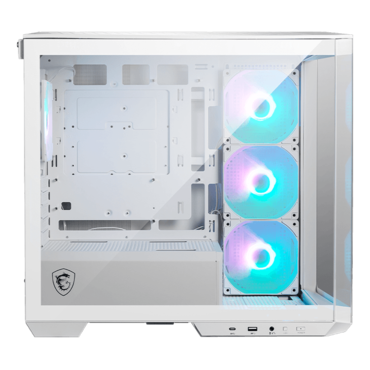

MAG PANO M100R PZ, Tempered Glass, No PSU, microATX, White, Mini Tower Case
Quantity:
- SKU: 17227592
- Manufacturer: MSI
- MPN: MAG PANO M100R PZ WHITE
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$98.02
MAG PANO M100R PZ / White
- Micro-ATX Back-connect motherboard compatible.
- Supports up to 360 mm AIO liquid cooler on the top.
- 270-degree panoramic tempered glass.
- Supports up to 10 x 120 mm system fans.
- Built-in 1-to-4 ARGB-PWM fans and control board, providing striking lighting and vivid lighting effects.
- The Magnetic Dust Filter at the bottom being easily removed for cleaning.
- DIY Friendly cables make your DIY process easier and create more possibilities to your system.
| SUPPORT MB FORM FACTOR | M-ATX(Back-connect supported) / ITX |
| FORM FACTOR | Micro- ATX Tower |
| PRODUCT NAME | MAG PANO M100R PZ / White |
| DRIVE BAYS |
1 x 2.5” 1 x 2.5”/3.5” combo (up to 2 x 2.5” or 1 x 2.5”+ 1 x 3.5”) |
| DIMENSION | 440 x 235 x 405 mm / 17.32 x 9.25 x 15.94 inches |
| WEIGHT | 19.42 lbs |
| I/O PORTS |
1 x USB 3.2 Gen 1 Type-A 1 x USB 3.2 Gen 2x2 Type-C 1 x Audio-Out / Mic-in 1 x LED Switch Button 1 x Power Button |
| CASE EXPANSION SLOTS | 5 |
| PRE-INSTALL FAN |
Side: 3 x 120 mm Rear: 1 x 120 mm |
| FAN SIZE SUPPORT |
Top: 3 x 120 mm / 2 x 140 mm Front: NA Rear: 1 x 120 mm / 1 x 140 mm Side: 3 x 120 mm Bottom: 1 x 120 mm PSU Shroud: 2 x 120 mm |
| MAXIMUM PSU LENGTH | 200 mm / 7.87 inches |
| MAXIMUM GPU LENGTH |
390 mm / 15.35 inches *Support horizontal installation only. |
| MAXIMUM CPU COOLER LENGTH | 175 mm / 6.9 inches |
| RADIATOR LAYOUT |
Top: 120 / 240 / 360 mm Front: NA Rear: 120 / 140 mm Side: NA Bottom: NA |
| LIGHTNING |
Side: 3 x ARGB Fan (Reverse-blade) Rear: 1 x ARGB Fan |
| POWER SUPPLY |
Standard ATX (PSU Not Included) |
| GROSS WEIGHT | TBD |
