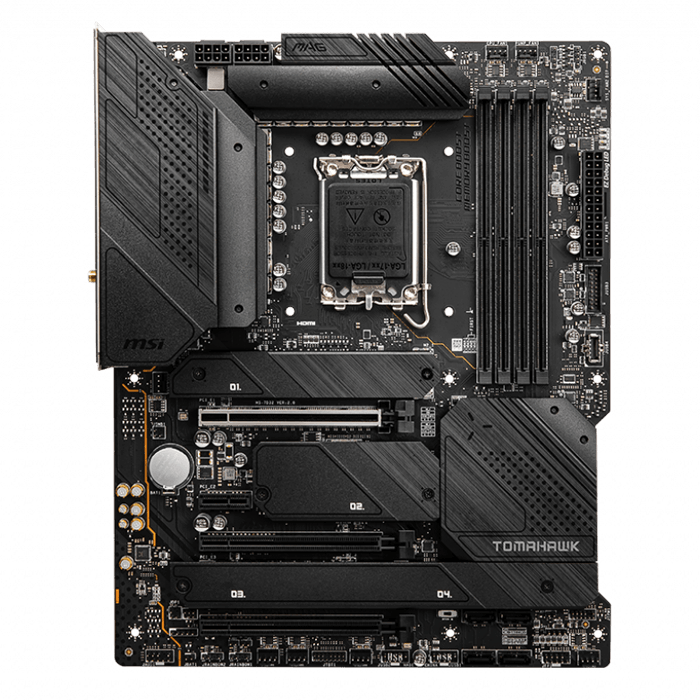

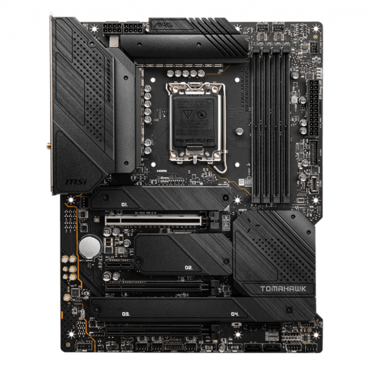

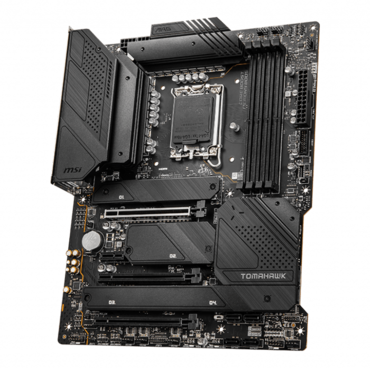

Processor |
- Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors 1
- Processor socket LGA1700
- Please go to msi.com to get the newest support status as new processors are released.
|
Chipset |
Intel® Z690 Chipset
|
Memory |
- 4x DDR5 memory slots, supporting up to 128GB 1
- Supports 1R 4800 MHz (by JEDEC & POR)
- Max overclocking frequency:
- 1DPC 1R Max speed up to 6400+ MHz
- 1DPC 2R Max speed up to 5400+ MHz
- 2DPC 1R Max speed up to 4000+ MHz
- 2DPC 2R Max speed up to 4000+ MHz
- Supports Intel® XMP 3.0 OC
- Supports Dual Controller Dual-Channel mode
- Supports non-ECC, un-buffered memory
- Please refer to www.msi.com for more information on compatible memory.
|
Expansion Slot |
- 3x PCIe x16 slots
- PCI_E1 (From CPU)
- Support up to PCIe 5.0 x16
- PCI_E3 (From Z690 chipset)
- Support up to PCIe 3.0 x4
- PCI_E4 (From Z690 chipset)
- Support up to PCIe 3.0 x1
- 1x PCIe 3.0 x1 slot (From Z690 chipset)
|
Multi-GPU |
- Supports AMD® CrossFire™ Technology
|
Onboard Graphics |
- 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1 / 2
- 1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz 1 / 2
- Available only on processors featuring integrated graphics.
- Graphics specifications may vary depending on the CPU installed.
|
Storage |
- 6x SATA 6Gb/s ports (From Z690 chipset)
- 4x M.2 slots (Key M)
- M2_1 slot (From CPU)
- Supports up to PCIe 4.0 x4
- Supports 2242/ 2260/ 2280/ 22110 storage devices
- M2_2 slot (From Z690 chipset)
- Supports up to PCIe 4.0 x4
- Supports 2242/ 2260/ 2280 storage devices
- M2_3 slot (From Z690 chipset)
- Supports up to PCIe 3.0 x4
- Supports up to SATA 6Gb/s
- Supports 2242/ 2260/ 2280 storage devices
- M2_4 slot (From Z690 chipset)
- Supports up to PCIe 4.0 x4
- Supports up to SATA 6Gb/s
- Supports 2242/ 2260/ 2280 storage devices
- Intel® Optane™ Memory Ready for M.2 slots from Z690 Chipset
- Supports Intel® Smart Response Technology for Intel Core™ processors
|
RAID |
- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
- Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
|
USB |
Intel® Z690 Chipset
- 1x USB3.2 Gen2x2 20Gbps Type-C port on the back panel
- 4x USB 3.2 Gen 2 10Gbps ports (1 Type-C internal connector, 3 Type-A ports on the back panel)
- 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports through the internal connector)
- 1x USB 2.0 Type-A port on the back panel
Hub-GL850G
- 5x USB 2.0 ports (1 Type-A port on the back panel, 4 Type-A ports available through internal connectors)
|
Audio |
Realtek® ALC4080 Codec
- 7.1-Channel High Definition Audio
- Supports S/PDIF output
|
LAN |
- 1x Intel® I225V 2.5Gbps LAN controller
|
Wireless LAN & Bluetooth® |
- Intel® Wi-Fi 6E
- The Wireless module is pre-installed in the M.2 (Key-E) slot
- Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz up to 2.4Gbps
- Supports 802.11 a/ b/ g/ n/ ac/ ax
- Supports Bluetooth® 5.2
|
Internal connectors |
- 1x 24-pin ATX main power connector
- 2x 8-pin ATX 12V power connectors
- 6x SATA 6Gb/s connectors
- 4x M.2 slots (M-Key)
- 1x USB 3.2 Gen 2 10Gbps Type-C port
- 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
- 2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports)
- 1x 4-pin CPU fan connector
- 1x 4-pin water-pump fan connector
- 6x 4-pin system fan connectors
- 1x Front panel audio connector
- 2x System panel connectors
- 1x Chassis Intrusion connector
- 1x TPM module connector
- 1x Clear CMOS jumper
- 1x TBT connector (supports RTD3)
- 1x Tuning Controller connector
|
LED Feature |
- 1x EZ LED Control switch
- 1x 4-pin RGB LED connectors
- 3x 3-pin RAINBOW LED connectors
- 4x EZ Debug LED
|

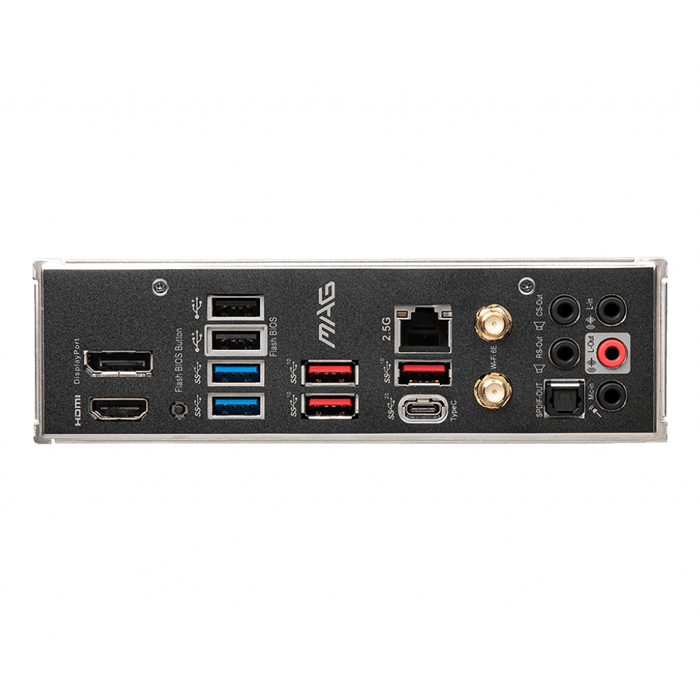

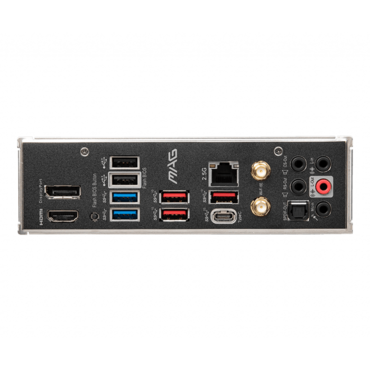

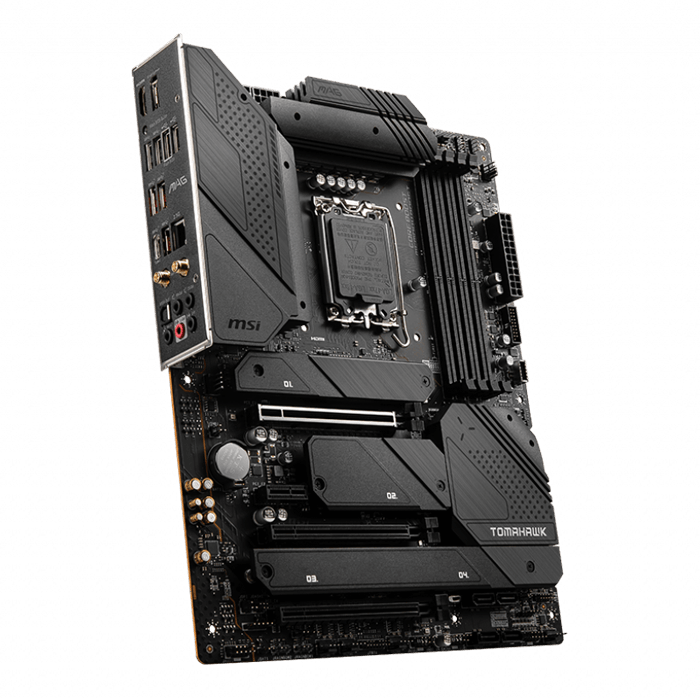

Back panel ports |
- 1x DisplayPort 1.4
- 2x USB 2.0 Port
- 3x USB 3.2 Gen 2 10Gbps Type-A
- 1x 2.5G LAN Port
- 2x Wi-Fi / Bluetooth Antenna
- 5x HD Audio Connectors
- 1x HDMI 2.1 Port
- 1x Flash BIOS Button
- 2x USB 3.2 Gen 1 5Gbps Type-A
- 1x USB 3.2 Gen 2x2 20Gbps Type-C
- 1x Optical S/PDIF OUT
|
Dimensions |
- ATX Form Factor
- 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
|
