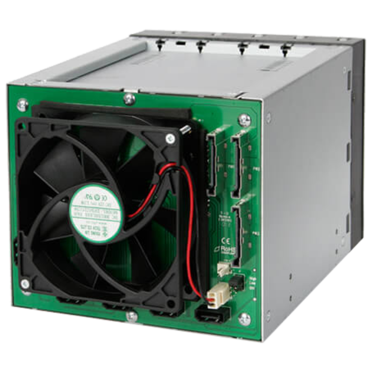

MB155SP-B, 3x 5.25" to 5x 3.5", SATA 6Gb/s, HDD, Black Hot Swap Module
Introducing the FatCage MB155SP-B, a 5-in-3 SATA 6Gbps hot swappable internal RAID backplane cage. This is the lite version of the MB45X series by removing the monitoring features, increasing the cooling performance, and reducing the overall cost, while keeping the same 3 year warranty and the core tray system for hot swapping and maintenance are kept for the best reliability in the market.
Introducing the FatCage MB155SP-B, a 5-in-3 SATA 6Gbps hot swappable internal RAID backplane cage. This is the lite version of the MB45X series by removing the monitoring features, increasing the cooling performance, and reducing the overall cost, while keeping the same 3 year warranty and the core tray system for hot swapping and maintenance are kept for the best reliability in the market.
- 5 in 3 RAID backplane module.
- Fits five 3.5” SATA I / II / III (SATA 6Gbps) hard drives in three 5.25” device bay & fully supports SATA Hot-Swap function.
- Large 92mm cooling fan with full metal body for excellent heat dissipation for the most intense applications.
- Compact and space saving to fit multiple drives.
- Interchangeable EZ-Tray tray design for internal drive security, exchangeability, expandability and maintenance capabilities. Compatible with DataCage
- Classic MB45X, ICYBento MB559 & ICYCube MB561 series.
- Enhanced Direct Air Flow Design – Shuts off most vents while adding larger ventilation slots on the backplane PCB.
Model Number :
|
MB155SP-B
|
Color :
|
Black
|
Drive Fit :
|
5 x 3.5” SATA 1.5 / 3 / 6 Gbit/s hard drives
|
Drive Bay :
|
3 x 5.25" half height device bay
|
Host Interface :
|
5 x 7pin SATA port
|
Power Input :
|
3 x 15pin SATA Power
|
Transfer Rate :
|
Up to 6Gb/sec. (depending on hard drive speed)
|
Insert& Extract connection via :
|
Direct SATA hard drive connection
|
Structure :
|
Metal body w/ partial plastic
|
Drive Cooling :
|
Replaceable 92 x 92 x 25mm cooling fan
Compatible with most 92mm fans with 2pin/ 3pin connector Metal chassis heat dispersion 3 mode fan speed jumper of high / low / off |
Power Indicator :
|
Solid Green LED (Power On)
|
HDD Access Indicator :
|
Flashing Amber LED
|
Dimension (L x W x H) :
|
200.4 ? 146.4 ?125mm
|
Weight :
|
1261g
|
