MB830SP-B flexiDOCK, 2x 5.25" to 3x 3.5", SAS/SATA 6Gb/s, HDD, Black Hot Swap Module
SKU: 13018228
Manufacturer: ICY DOCK
MPN: MB830SP-B
Availability: Low Stock

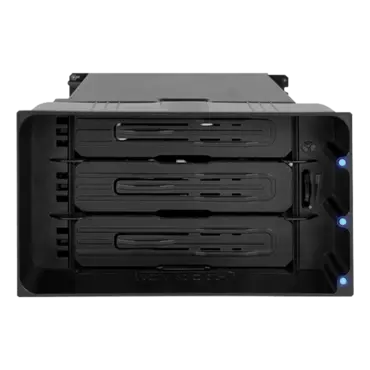

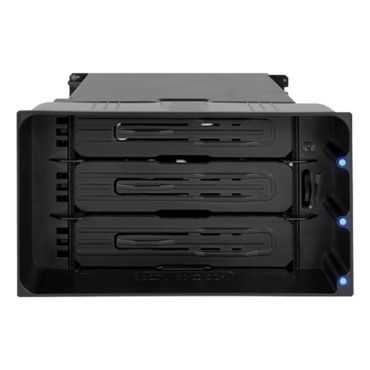

ICY DOCK flexiDOCK (MB830SP-B). Introducing the flexiDOCK MB830SP-B professional removable HDD docking enclosure. It offers the ability to hot-swap up to 3 x 3.5-inch SAS and SATA hard drives using only two 5.25-inch external drive bays. The 100% tool-less and tray-less design means drive installation and removal happens by hand in seconds, not minutes, saving valuable time whether you’re a home user, computer forensic specialist, computer repair technician, HDD duplicator or a media workstation editor. A strong full-metal body ensures a long product life, better heat dissipation and keeps your sensitive drives protected at all time. To prevent overheating damage in active environments, the large user-adjustable cooling fan works together with the well-ventilated metal chassis to provide ample cooling performance.
- Fits 3 x 3.5-inch SAS/SATA HDDs into 2 x 5.25-inch external ODD/device bays
- Supports full SATA III (6 Gb/s) transfer speeds
- Supports SAS single-channel operation (SAS host required)
- Compact and space saving design to fit multiple drives
- 100% tool-less and screw-less drive installation

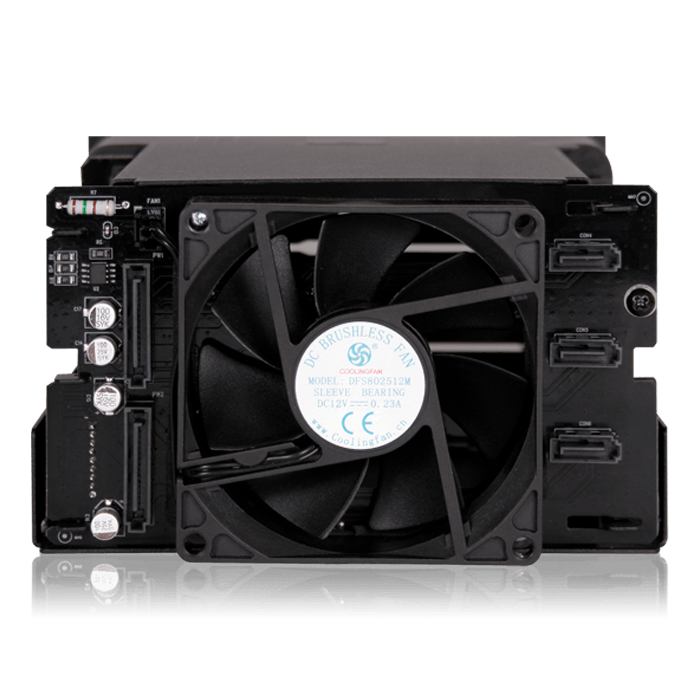

- Large 80mm cooling fan with easy access fan speed control wheel
- Cooling fan is upgradable with any standard 80mm 3-pin cooling fan
- Sturdy full-metal chassis adds heat dissipation and extra protection
- Ample ventilation holes for supreme cooling performance
- Spring-loaded dust cover to prevent harmful dust and debris buildup
- Dust cover acts as drive guiding peck for improved drive stability
- Supports SATA data and power cables with locking latch designs
- Package includes 3 x locking latch SATA data cables
- Requires only 2 x SATA power cables to power all 3 drives
- Flush drive insertion design fully protects drives from possible environmental damage
- Active Power Technology (APT) – Cooling fan and LEDs only power up when a drive is installed
- Industry leading 3-year full warranty
- Complimentary technical support by ICY DOCK trained support professionals
| Product Name | Tray-less 3 Bay 3.5-inch SATA/SAS Hard Drive Removable Docking Enclosure in 2 x 5.25-inch External Bays (w/ Cables) |
| Model Number | MB830SP-B |
| Color | Black |
| Support Drive Size | 3.5" HDD |
| Compatible Drive Type | SATA / SAS |
| Number of Drives | 3 |
| Drive Bay | 2 x external 5.25" drive bays |
| Host Interface | 3 x SATA 7pin |
| Power Input | 2 x 15 pin SATA power connector |
| Transfer Rate | Up to 6Gbps (Depending on hard drive speed) |
| Support HDD Capacity | No Limitation |
| Drive Cooling | 80mm cooling fan & Metal heat dispersion |
| Structure / Material | Metal and ABS plastic |
| Support Hot-Swap | Yes |
| Product Dimension (W x H x D) | 145.8 x 85.8x 180.4mm |
| Product Net Weight | 663g |
| Package Gross Weight | 994g |
| Drive Activity LED Indication | Drive power: solid blue; HDD access: flashing blue |
| Package contents | Device, user manual, screws, 3x SATA 7-pin cables |
| SATA Connector Insertion Rate | 10,000 |
| Humidity | 5%~65% RH |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -35°C to 70°C (-31°F to 158°F) |
| Compliance | CE, RoHS, REACH |
| Warranty | 3 years |
