MB994IPO-3SB, 1x 5.25" to 3x 2.5", SAS/SATA 6Gb/s, SSD/HDD/ODD, Black Hot Swap Module

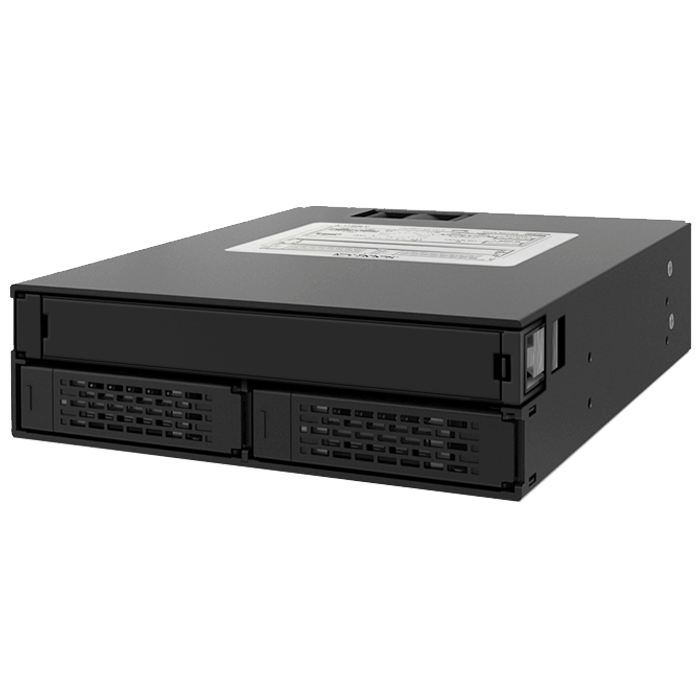

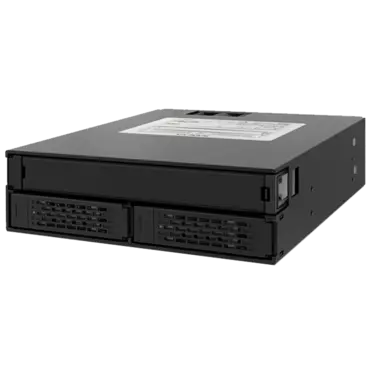

Introducing the MB994IPO-3SB, a full metal dual bay 2.5” SATA/SAS hard drive / SSD mobile rack backplane designed with a Slim Optical Disk Drive (ODD) slot for use in a single 5.25” device bay. It is a device designed with a full metal build commercially designed for: Medical & Military systems, Media servers, IPCs, HTPC, and All-In-One computers, approved & used by Tier 1 companies. Dual 4-pin power connectors are used to ensure secured and consistent power supply to both drives and ODD, whether they are low power consumption 2.5” SATA SSD’s or power hungry 15000 RPM 2.5” SAS drives. Also included is a single 40mm cooling fan with on & off switch to assist the drives running at their optimal temperatures, in even the most intense applications.
Introducing the MB994IPO-3SB, a full metal dual bay 2.5” SATA/SAS hard drive / SSD mobile rack backplane designed with a Slim Optical Disk Drive (ODD) slot for use in a single 5.25” device bay. It is a device designed with a full metal build commercially designed for: Medical & Military systems, Media servers, IPCs, HTPC, and All-In-One computers, approved & used by Tier 1 companies. Dual 4-pin power connectors are used to ensure secured and consistent power supply to both drives and ODD, whether they are low power consumption 2.5” SATA SSD’s or power hungry 15000 RPM 2.5” SAS drives. Also included is a single 40mm cooling fan with on & off switch to assist the drives running at their optimal temperatures, in even the most intense applications.

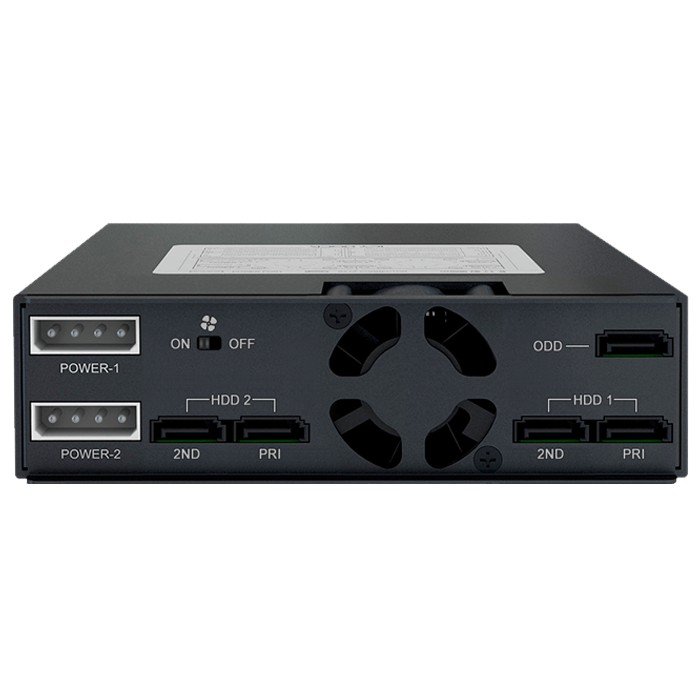

- 2 x 4 pin power connector to properly power all components.
- 40mm cooling fan with On & off switch, reduce the power usage and fan noise when using SSD.
- Full Metal EZ Slide Mini Tray & EZ-ODD Tray system with Full Cage Design.
- Top cover for the tray adds extra drive/ODD protection.

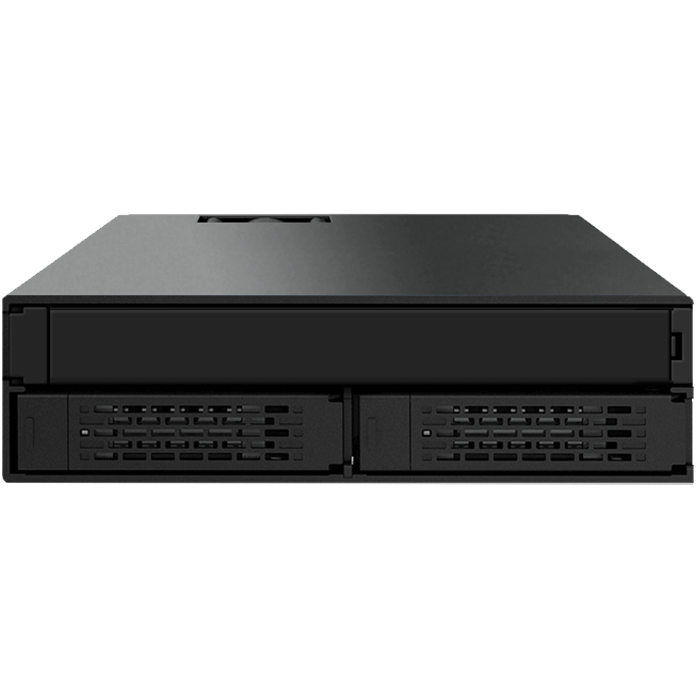

- Status LED on Front for each drive.
- Full aluminum body construction.
Model Number :
|
MB994IPO-3SB
|
Color :
|
Black
|
Host Interface :
|
Two 2 x 7pin SATA for each drive bay (SAS dual channel)
Single 7pin SATA for slim ODD bay |
Drive Fit :
|
2 x 2.5" SAS / SATA HDD or SSD
One Slim type ODD (12.5mm height ODD only) |
Drive Bay :
|
Single 5.25" half height device bay
|
Transfer Rate :
|
Up to 6 Gb/sec. (depending on hard drive speed)
|
Power Input :
|
2 x 4pin Molex power port
|
Insert& Extract connection Via :
|
Direct SAS/ SATA hard drive connection
|
Structure :
|
Aluminum & SECC
|
Drive Cooling :
|
One 40mm rear cooling fan + fan power switch
Metal heat dispersion |
Power Indicator :
|
Solid Green LED (Power On)
|
HDD Access Indicator :
|
Flashing Amber LED
|
Dimension (L x W x H) :
|
6.70" x 5.75" x 1.63"
|
Weight :
|
1.77 lbs
|
