MB994SP-4S, 1x 5.25" to 4x 2.5", SAS/SATA 6Gb/s, SSD/HDD, Black Hot Swap Module

  • SKU: 4706560
  • Manufacturer: ICY DOCK
  • MPN: MB994SP-4S
  • Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
MB994SP-4S, 1x 5.25" to 4x 2.5", SAS/SATA 6Gb/s, SSD/HDD, Black Hot Swap Module

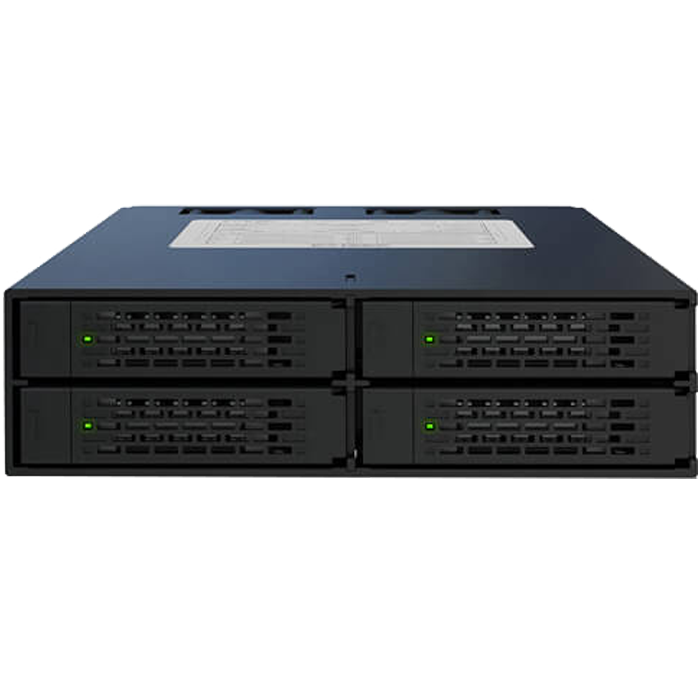

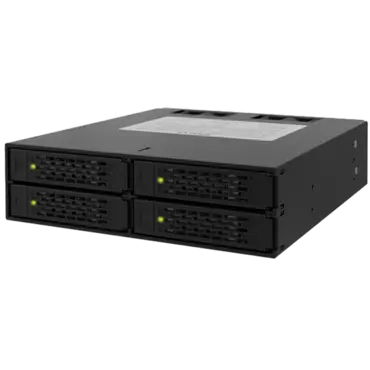

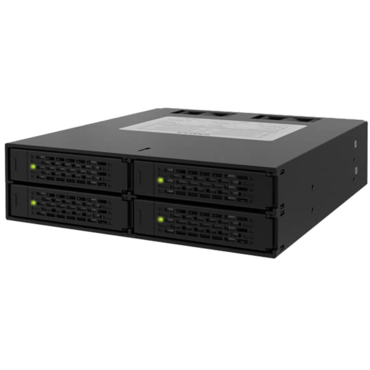

Introducing the Icy Dock ToughArmor Series MB994SP-4S Quad Bay 2.5" SAS / SATA SSD & Hard Drive Hot Swap Mobile Rack Cage for use in a single 5.25" device bay. This product is constructed of heavy duty metal to hold up in the toughest of conditions. It includes ventilation slots on the front & back for maximum airflow to keep both SATA and SAS drives running cool, and an LED is placed on the front of each drive tray to give the user drive status at all times. Dual 4-pin power connectors are used to ensure a consistent power supply to all 4 drives, whether they are low power SSD’s or power hungry 15000 RPM SAS drives. Also included are dual 40mm cooling fans to keep the drives running in at optimal temperatures in even the most intense applications. This is a device commercially designed for: Medical & Military systems, Media servers, IPCs, HTPC, and All-In-One computers, approved & used by Tier 1 companies.
  • Heavy duty full metal construction with commercially designed for Medical & Military systems, Media servers, and IPCs, approved & used by Tier 1 companies.
  • Perfect for rugged applications and complies with flammability requirements.
  • Fits 4 x 7mm to 15mm 2.5” SAS/SATA HDD or SSD in a single 5.25” bay for high performance RAID applications.
  • Anti-Vibration Technology (AVT) - creates a safe environment for hard drives or SSDs.
  • Active Power Technology (APT) - individual led & cooling fan only powers up if there is a drive installed in the bay.
  • Eagle-hook lock system keeps drives secured within the enclosure.
  • Removable EZ-Slide Mini tray system for easy maintenance.
  • Top Cover for the Tray Adds Extra Drive Protection.
  • Supports SATA 6Gbps and hot swap.
  • Heavy Duty Full Metal Construction.
  • Status LED on Front for Each Drive.
  • Dual 40mm cooling fans
  • Small Form Factor Perfect for IPC, Servers, and Small Form Factor Cases.
Model Number :
Color :
Host Interface :
4 x 7pin SATA
Drive Fit :
4 x 2.5" SAS or SATA I/ II/ III HDD/ SSD
Drive Bay :
Single 5.25" half height device bay
Transfer Rate :
Up to 6 Gb/sec. (depending on hard drive speed)

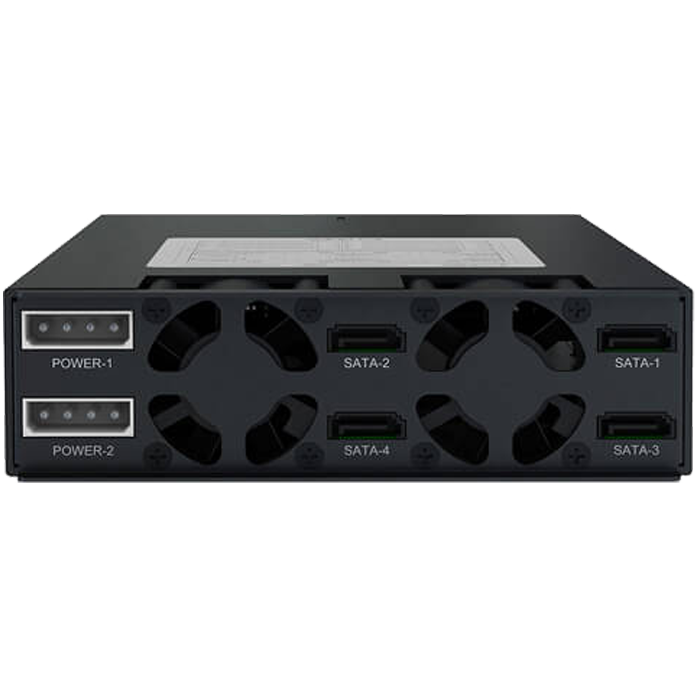

Power Input :
2 x 4pin Molex power port
Insert& Extract connection Via :
Direct SAS/ SATA hard drive connection
Structure :
Aluminum & SECC
Drive Cooling :
40mm rear cooling fan x 2 & metal heat dispersion
LED Indication :
Device Power & Drive Activity
LED Display Color :
Green : Device Power ; Amber : Drive Activity
Dimension (L x W x H) :
6.70" x 5.75 " x 1.63 "
Weight :
1.77 lbs
