MB994SP-4SB-1, 1x 5.25" to 4x 2.5", SATA 6Gb/s, SSD/HDD, Black Hot Swap Module

Quantity:
  • SKU: 6752040
  • Manufacturer: ICY DOCK
  • MPN: MB994SP-4SB-1
  • Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$142.91
Quantity:
MB994SP-4SB-1, 1x 5.25" to 4x 2.5", SATA 6Gb/s, SSD/HDD, Black Hot Swap Module

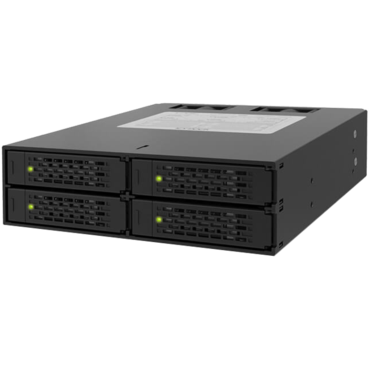

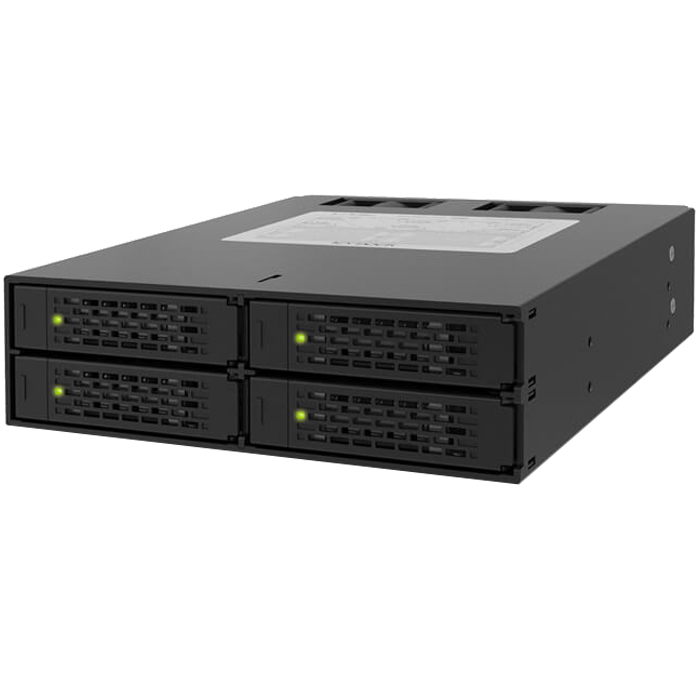

Introducing the Icy Dock ToughArmor MB994SP-4SB-1 Full Metal Quad Bay 2.5" SATA 6Gbps Hard Drive/SSD Hot Swap Mobile Rack Cage for use in a single 5.25" device bay. The MB994SP-4SB-1 is predicated off the incredibly popular MB994SP-4S, while taking its general concept but, with a SATA only interface and adding the fan power switch. In addition, there is only one 4 pin power connector that will reduce the amount of cables required. The MB994SP-4SB-1 allows for many more users to use this backplane in their homes with the reduced cost. The dual 40mm cooling fans to in addition to the power switch for the fans allow for the best flexibility – Turn off when using SSD’s and on when using mechanical SATA hard drives. Furthermore, this device utilizes Active Power Technology, so that the device only power up if there are drives installed.

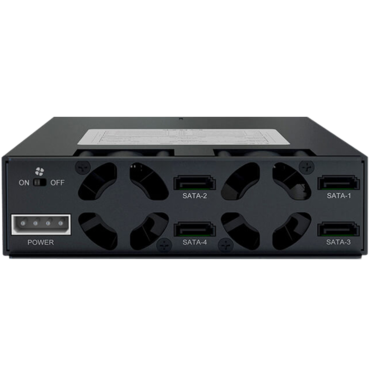

  • 1 x 4 pin power connector to reduce cable connections.
  • Dual 40mm cooling fans with fan power switch allow user to turn off the fans when using SSD.
  • 3-Mode Fan Speed Control - adjust cooling settings (High, Low, or Off) for your specific needs.
  • Eagle-hook lock system keeps drives secured within the enclosure.
  • Removable EZ-Slide Mini tray system for easy maintenance.
  • Top Cover for the Tray Adds Extra Drive Protection.
  • Supports SATA 6Gbps and hot swap.
  • Heavy Duty Full Metal Construction.
  • Status LED on Front for Each Drive.
  • Small Form Factor Perfect for IPC, Servers, and Small Form Factor Cases.
Model Number :
MB994SP-4SB-1
Color :
Black
Host Interface :
4 x 7pin SATA
Drive Fit :
4 x 2.5" SATA I / II / III SSD or hard drive
Drive Bay :
Single 5.25" half height device bay
Transfer Rate :
Up to 6 Gb/sec. (depending on hard drive speed)
Power Input :
Single 4pin Molex power port
Insert& Extract connection Via :
Direct SATA hard drive connection
Structure :
Aluminum & SECC
Drive Cooling :
Dual 40mm rear cooling fan + fan power switch
Metal heat dispersion
Power Indicator :
Solid Green LED
HDD Access Indicator :
Flashing Amber LED
Dimension (L x W x H) :
6.70" x 5.75" x 1.63"
Weight :
1.77 lbs
