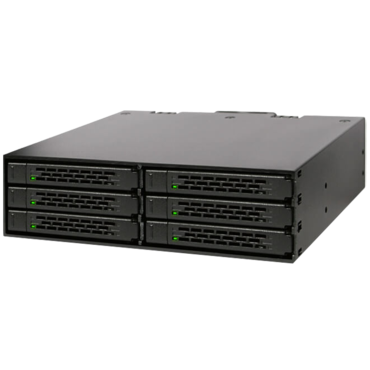

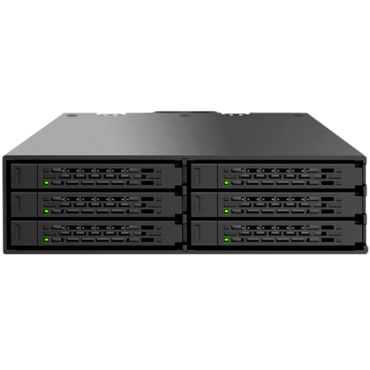

MB996SP-6SB, 1x 5.25" to 6x 2.5", SATA 6Gb/s, SSD/HDD, Black Hot Swap Module
Quantity:
- SKU: 7282302
- Manufacturer: ICY DOCK
- MPN: MB996SP-6SB
- Availability: LOW STOCK
Starting At
$192.51
As low as $16.04/ Month*
MB996SP-6SB, 1x 5.25" to 6x 2.5", SATA 6Gb/s, SSD/HDD, Black Hot Swap Module
The 5.25” device bay has been a long standard in computer history. It started from the 90s legacy industrial PC cases all the way to today’s Micro ATX cases. The 5.25” bay has been widely used for optical drives such as DVD and Blue-ray, or with even a single 3.5” hard drive with mobile rack. However, it is almost impossible to use a single 5.25” bay to create complex RAID storage until the MB996SP-6SB Full Metal 6 x 2.5” SATA Hard Drive & SSD Backplane. This is a device commercially designed for: Medical & Military systems, Media servers, IPCs, HTPC, and All-In-One computers, approved & used by Tier 1 companies.
The 5.25” device bay has been a long standard in computer history. It started from the 90s legacy industrial PC cases all the way to today’s Micro ATX cases. The 5.25” bay has been widely used for optical drives such as DVD and Blue-ray, or with even a single 3.5” hard drive with mobile rack. However, it is almost impossible to use a single 5.25” bay to create complex RAID storage until the MB996SP-6SB Full Metal 6 x 2.5” SATA Hard Drive & SSD Backplane. This is a device commercially designed for: Medical & Military systems, Media servers, IPCs, HTPC, and All-In-One computers, approved & used by Tier 1 companies.
- Heavy duty full metal construction with commercially designed for: Medical & Military systems, Media servers, and IPCs, approved & used by Tier 1 companies.
- Perfect for rugged applications and complies to flammability requirements.
- Fits 6 x 7mm to 9.5mm 2.5” SATA HDD or SSD in a single 5.25” bay for high performance RAID applications.
- Full Metal construction with aluminum body, to protect your drives.
- Anti-Vibration Technology (AVT) - creates a safe environment for hard drives or SSDs.
|
Model Number :
|
MB996SP-6SB
|
|
Color :
|
Black
|
|
Host Interface :
|
6 x 7pin SATA
|
|
Drive Fit :
|
6 x 2.5" SATA I / II / III SSD or HDD (9.5mm thickness)
|
|
Device Fit :
|
Single 5.25" half height device bay
|
|
Transfer Rate :
|
Up to 6 Gb/sec. (depending on hard drive speed)
|
|

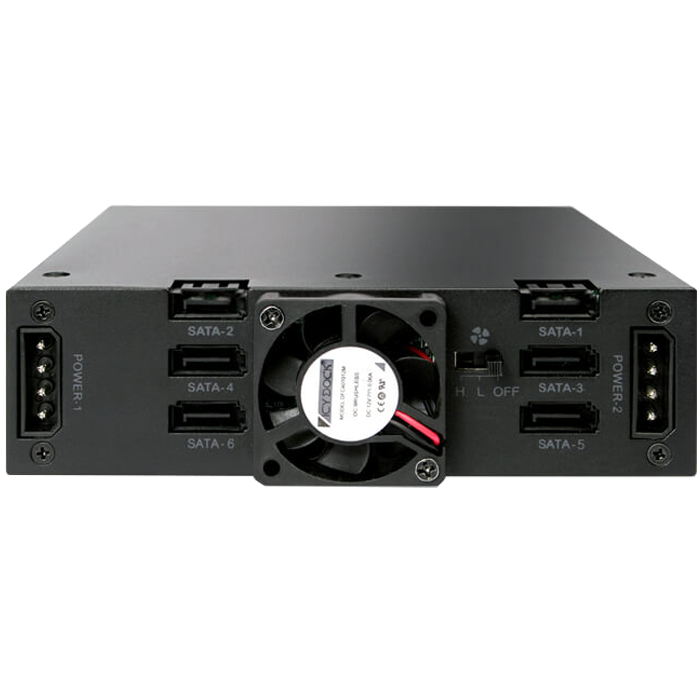

Power Input :
|
2 x 4pin Molex power port or 2 x 15pin SATA power port
(w/ included 4 to 15pin adapter cables) |
|
Insert& Extract connection Via :
|
Direct SATA hard drive connection
|
|
Structure :
|
Aluminum & SECC
|
|
Drive Cooling :
|
40mm rear cooling fan with fan switch (High/ Low/ Off)
Metal heat dispersion |
|
Power Indicator :
|
Solid Green LED
|
|
HDD Access Indicator :
|
Flashing Amber LED
|
|
Dimension (L x W x H) :
|
5.84" x 5.75" x 1.63"
|
|
Weight :
|
1.77 lbs
|
