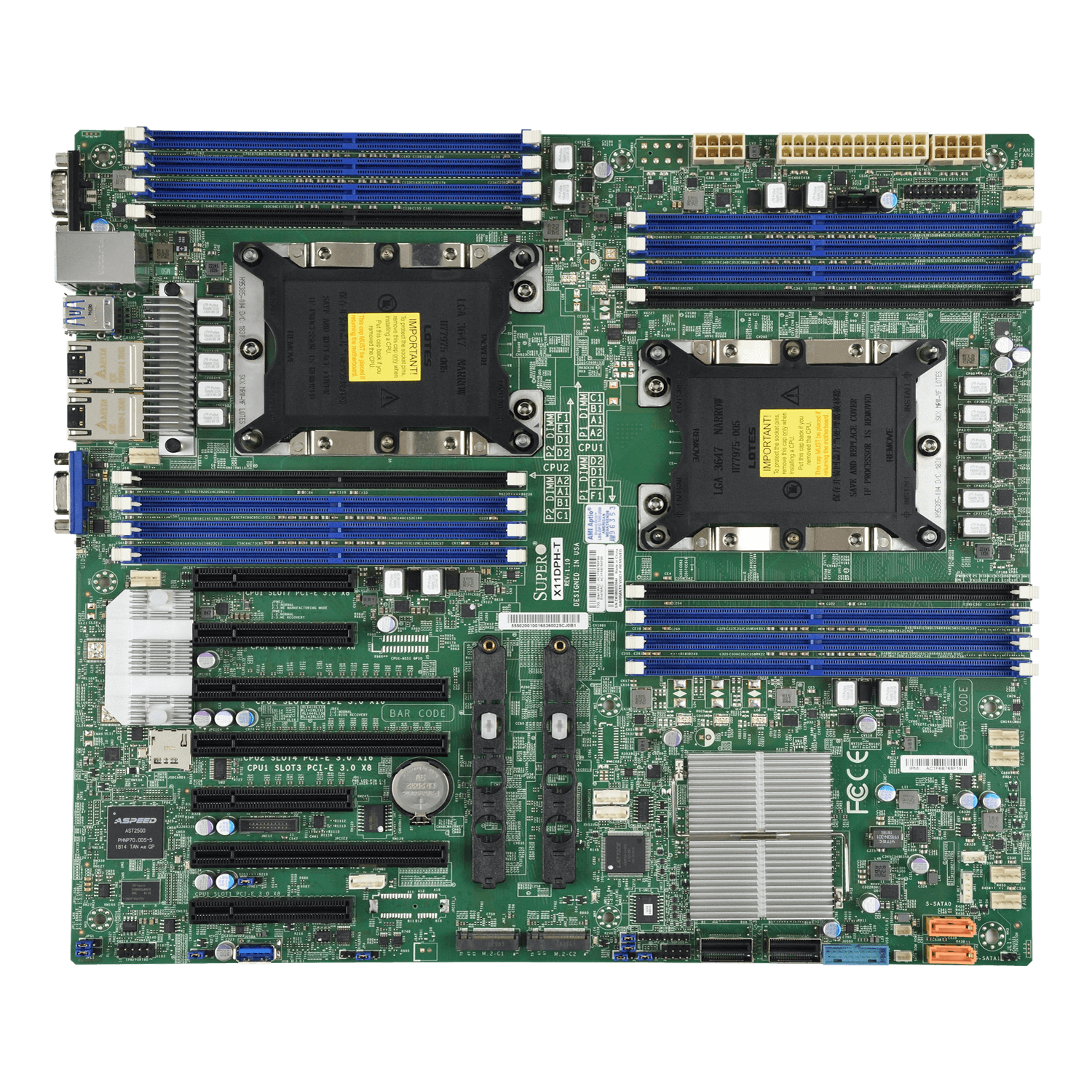

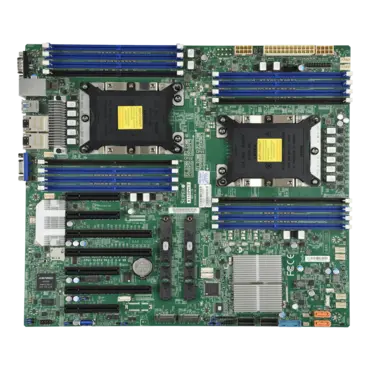

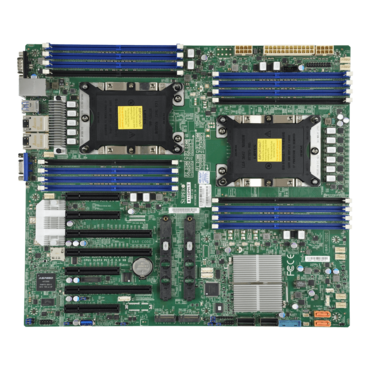

MBD-X11DPH-T, Intel® C622, LGA 3647 / 2, DDR4-2933 4TB 3DS LRDIMM / 16, VGA, M.2 / 2, SATADOM / 2, 10GbLAN / 2, E-ATX OEM

Quantity:

SKU: 11552199
Manufacturer: SUPERMICRO
MPN: MBD-X11DPH-T-B
Availability: CONTACT US

Starting At

$775.10

Product SKUs	MBD-X11DPH-T
Physical Stats
Form Factor	E-ATX
Dimension	12" x 13" (30.48cm x 33.02cm)
Processor
CPU	2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors Dual Socket Socket P (LGA-3647) supported, CPU TDP supports Up to 205W TDP, 3 UPI up to 10.4 GT/s
Note	BIOS version 3.0a or above is required to support 2nd Generation Intel Xeon Scalable Processors-SP BIOS version 3.0a or above is required to support 2nd Generation Intel Xeon Scalable Processors-SP BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R)
System Memory
Memory Capacity	16 DIMM slots Up to 2TB Intel® Optane™ Persistent Memory 100 Series, DDR4-2666MT/s Up to 4TB 3DS ECC LRDIMM, DDR4-2933MT/s; Up to 4TB 3DS ECC RDIMM, DDR4-2933MT/s Up to 2TB Intel® Optane™ DC Persistent Memory in memory mode (Cascade Lake only)
Memory Type	2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
DIMM Sizes	LRDIMM: 64GB RDIMM: 64GB
Memory Voltage	1.2V
Error Detection	Corrects single-bit errors Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset	Intel® C622
SATA	Intel® C622 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI	ASPEED AST2500
Network Controllers	Dual LAN with 10GBase-T with Intel® X722 + X557
Input / Output
SATA	10 SATA3 (6Gbps) port(s)
LAN	2 RJ45 10GBase-T ports
USB	7 USB 3.2 Gen1 port(s) (2 via header; 4 rear; 1 type A)
Video Output	1 VGA port(s)
Serial Port	1 COM Port(s) (1 rear)
DOM	2 SATA DOM (Disk on Module) power connector support
TPM	1 TPM Header
Expansion Slots
PCIe	3 PCIe 3.0 x16, 4 PCIe 3.0 x8
M.2	M.2 Interface: 2 PCIe 3.0 x4, RAID 0,1 Form Factor: 2242/2260/2280/22110 Key: M-Key
System BIOS
BIOS Type	AMI UEFI
Management
Software	SuperDoctor® 5, SUM, KVM with dedicated LAN, SPM, Intel® Node Manager, SSM, IPMI2.0, Watchdog
PC Health Monitoring
Voltage	Monitors CPU voltages, Chipset Voltage, 1.05 (PCH), +5V standby, +5V, +3.3V, +12V, +1.8V, Memory Voltages
LED	UID/Remote UID Power LED BMC/IPMI Heartbeat LED
Temperature	Monitoring for CPU and chassis environment CPU thermal trip support Thermal Control for 8 Fan Connectors
FAN	8x 4-pin fan headers (up to 8 fans) PWM fan speed control 8x fans with tachometer monitoring
Other Features	WOL, UID, RoHS, CPU thermal trip support for processor protection, Chassis intrusion header, Chassis intrusion detection, ATX Power connector, ACPI power management, 8-pin 12v DC power connector, SDDC, NCSI header
Operating Environment
Operating Temperature Range	10°C - 35°C (50°F - 95°F)
Non-Operating Temperature Range	-40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range	8% - 90% (non-condensing)
Non Operating Relative Humidity Range	5% - 95% (non-condensing)
