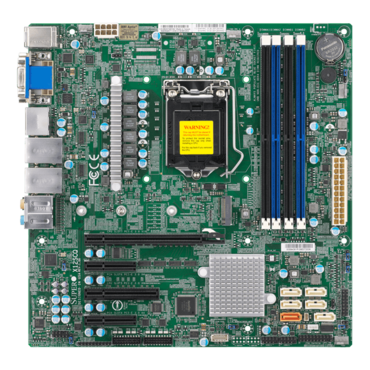

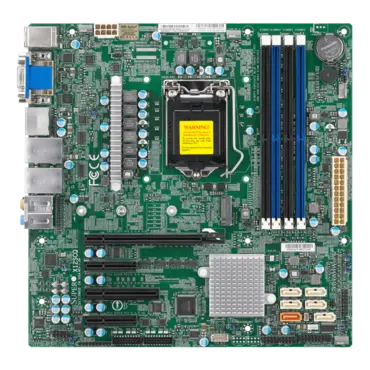

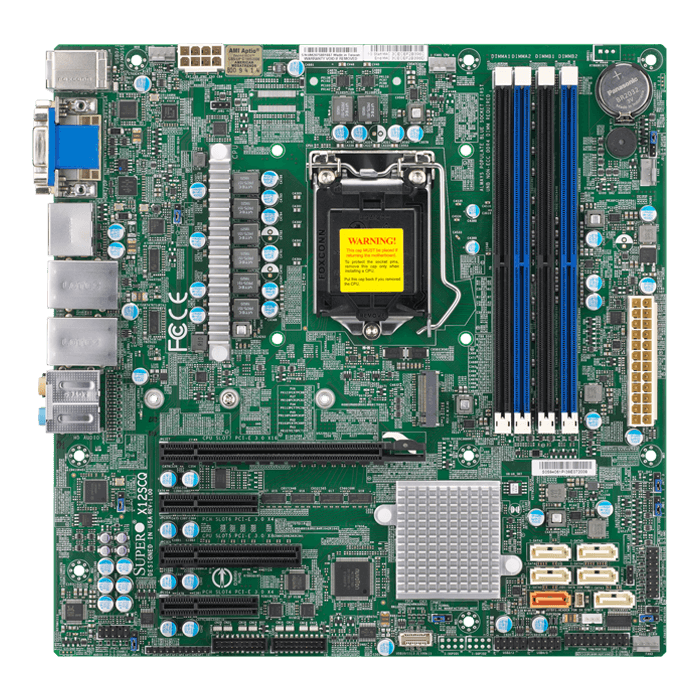

MBD-X12SCQ, Intel® Q470E, LGA 1200, DDR4-2933 UDIMM / 4, DisplayPort, M.2, GbLAN / 2, microATX OEM

Quantity:
  • SKU: 13811538
  • Manufacturer: SUPERMICRO
  • MPN: MBD-X12SCQ-B
  • Availability: TEMPORARILY OUT OF STOCK
Starting At
$384.95
Quantity:
Product SKUs
MBD-X12SCQ
  • X12SCQ
Physical Stats
Form Factor
  • microATX
Dimensions
  • 9.6" x 9.6" (24.38cm x 24.38cm)
Processor/Cache
CPU
  • 10th Generation Intel® Core™ i9/Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processor
  • Single Socket LGA-1200 (Socket H5) supported, CPU TDP supports Up to 125W TDP
System Memory
Memory Capacity
  • Up to 128GB Unbuffered non-ECC UDIMM, DDR4-2933MHz, in 4 DIMM slots
Memory Type
  • N/A
DIMM Sizes
  • N/A
Memory Voltage
  • N/A
On-Board Devices
Chipset
  • Intel® Q470E
SATA
  • Intel® Q470 controller for 6 RAID 0,1,5,10
Network Controllers
  • Single LAN with Intel® PHY I219LM LAN controller
    Single LAN with Intel® Ethernet Controller I210-AT
Graphics
  • Intel® HD Graphics
Input / Output
SATA
  • 6 SATA3 (6Gbps) port
LAN
  • 2 RJ45 Gigabit Ethernet LAN ports
USB
  • 6 USB 2.0 ports (2 rear + 4 via headers)
  • 6 USB 3.1 Gen2 ports (2 Rears Type A + 2 Rears Type C, 2 via headers)
Video Output
  • 1 VGA port, 1 HDMI port, 1 DP (DisplayPort) port, 1 DVI - D port
Serial Port / Header
  • 4 COM Ports (4 headers)
TPM
  • 1 TPM Header & Chip both
Expansion Slots
PCI-E
  • 1 PCI-E 3.0 x16 (in x16 slot),
  • 1 PCI-E 3.0 x8,
  • 2 PCI-E 3.0 x4
M.2
  • M.2 Interface: 1 PCI-E 3.0 x4, RAID 0 & 1
  • Form Factor: 2242/2280
  • Key: M-Key
System BIOS
BIOS Type
  • AMI UEFI
BIOS Features
  • ACPI 6.1
  • SMBIOS 3.0 or later
  • PCI FW 3.0
  • UEFI 2.7
  • RTC (Real Time Clock) Wakeup
Management
Software
  • AMT, SUM, SuperDoctor® 5, vPro, Watchdog
Power Configurations
  • ATX Power connector
PC Health Monitoring
Voltage
  • +1.35V, +1.5V, +1.8V, +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), 4 -fan status, 4 fans with tachometer monitoring, VBAT
Temperature
  • CPU thermal trip support, Monitoring for CPU and chassis environment
LED
  • Power LED
Other Features
  • ACPI power management, ATX Power connector, Chassis intrusion detection, M.2 NGFF connector, RoHS
Operating Environment
Operating Temperature Range
  • 0°C ~ 60°C (32°F ~ 140°F)
Non-Operating Temperature Range
  • -40°C - 85°C (-40°F - 185°F)
Operating Relative Humidity Range
  • 10% ~ 85% (non-condensing)
Non-Operating Relative Humidity Range
  • 5% - 95% (non-condensing)
