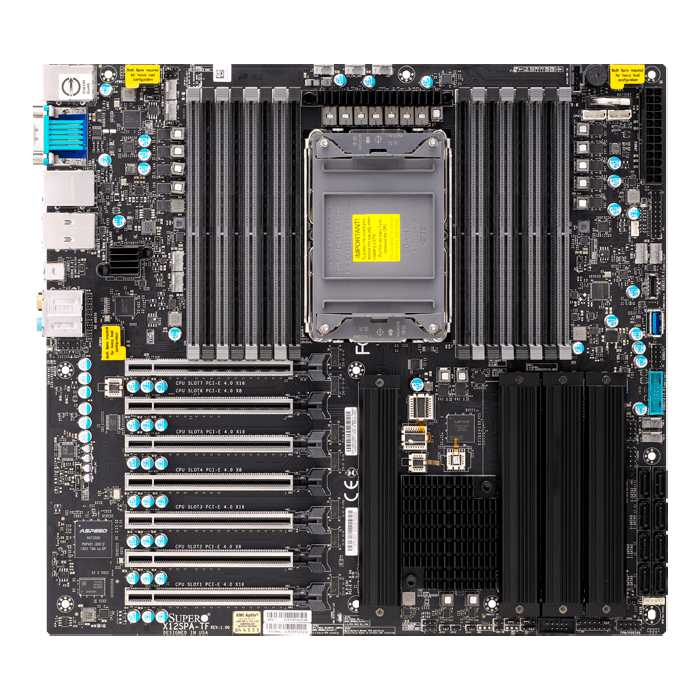

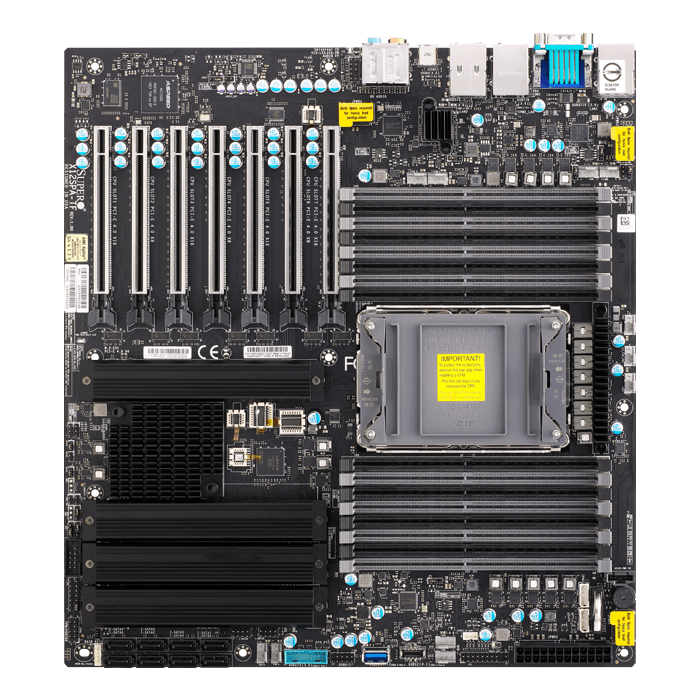

MBD-X12SPA-TF-O, Intel® C621A Chipset, LGA 4189, DDR4-3200 4TB 3DS LRDIMM / 16, VGA, M.2 NVMe / 4, Type-C / 2, 1GbLAN / 1, 10GbLAN / 1, E-ATX Retail
MBD-X12SPA-TF-O, Intel® C621A Chipset, LGA 4189, DDR4-3200 4TB 3DS LRDIMM / 16, VGA, M.2 NVMe / 4, Type-C / 2, 1GbLAN / 1, 10GbLAN / 1, E-ATX Retail

MBD-X12SPA-TF-O, Intel® C621A Chipset, LGA 4189, DDR4-3200 4TB 3DS LRDIMM / 16, VGA, M.2 NVMe / 4, Type-C / 2, 1GbLAN / 1, 10GbLAN / 1, E-ATX Retail

  • SKU: 14433309
  • Manufacturer: SUPERMICRO
  • MPN: MBD-X12SPA-TF-O
  • Availability: TEMPORARILY OUT OF STOCK
Price
$774.85
Quantity:
Product SKUs
MBD-X12SPA-TF
  • X12SPA-TF
Physical Stats
Form Factor
  • E-ATX
Dimensions
  • 13" x 12" (33.02cm x 30.48cm)
Processor/Cache
CPU
  • 3rd Gen Intel® Xeon® Scalable processors
  • Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP
Cores / Cache
  • Up to 40 cores
System Memory
Memory Capacity
  • Up to 4TB 3DS ECC RDIMM, DDR4-3200MHz; Up to 4TB 3DS ECC LRDIMM, DDR4-3200MHz
  • Up to 4TB Intel® Optane™ Persistent Memory 200 Series, DDR4-3200MHz, in 16 DIMM slots
Memory Type
  • N/A
DIMM Sizes
  • 4GB, 8GB, 16GB, 32GB, 64GB, 128GB
Memory Voltage
  • 1.2V
On-Board Devices
Chipset
  • Intel® C621A
SATA
  • Intel® C621A controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI
  • ASPEED AST2500
Network Controllers
  • Single LAN with Intel® Ethernet Controller I210-AT
    Single LAN with Marvell AQC113
    Single LAN with Realtek RTL8211F PHY (dedicated IPMI)
Audio
  • ALC 888S HD Audio
Graphics
  • ASPEED AST2500 BMC
  • VGA connector is dedicated for IPMI.
Input / Output
LAN
  • 1 RJ45 Gigabit Ethernet LAN ports
  • 1 RJ45 10GBase-T ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 4 USB 2.0 ports (2 rear + 2 via headers)
  • 6 USB 3.2 Gen1 ports (4 rear + 2 via headers)
  • 2 USB 3.2 Gen2 ports (1 Type A, 1 Type C)
  • 1 USB 3.2 Gen2x2 ports (1 Type C); USB 3.2 Gen2 (1 Type A Vertical, 1 Type C header)
Video Output
  • 1 VGA port,
  • VGA connector is dedicated for IPMI.
Serial Port / Header
  • 2 COM Ports (1 rear, 1 header)
TPM
  • 1 TPM Header
Expansion Slots
PCI-E
  • 4 PCI-E 4.0 x16,
  • 3 PCI-E 4.0 x8 (in x16 slot)
M.2
  • M.2 Interface: 4 PCI-E 4.0 x4
  • Form Factor: 2260/2280/22110
  • Key: M-Key
  • M.2 support to RAID 0,1, 5, 10, VROC key is required for RAID.
System BIOS
BIOS Type
  • 256Mb SPI Flash with AMI BIOS
BIOS Features
  • ACPI 3.0 / 4.0
  • SMBIOS 2.7
  • PCI FW 3.0
  • RTC (Real Time Clock) Wakeup
Management
Software
  • IPMI (Intelligent Platform Management Interface) v2.0 with KVM support, SPM, SUM, SuperDoctor® 5, Watchdog
System Management Software
  • IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
  • SuperDoctor 5
Power Configurations
  • ACPI Power Management
  • Main Switch Override Mechanism
  • Power-on mode for AC power recovery
  • CPU thermal trip support for processor protection
PC Health Monitoring
Voltage
  • +1.8V, +12V, +3.3V, +5V, +5V standby, 10 -fan status, 3.3V standby, HT, Memory, VBAT
Temperature
  • CPU thermal trip support, Monitoring for CPU and chassis environment, PECI
LED
  • CPU / System Overheat LED, Suspend static indicator LED
Other Features
  • N/A
Operating Environment
Operating Temperature Range
  • 0°C ~ 50°C (32°F ~ 122°F)
Non-Operating Temperature Range
  • -20°C ~ 60°C (-4°F ~ 140°F)
