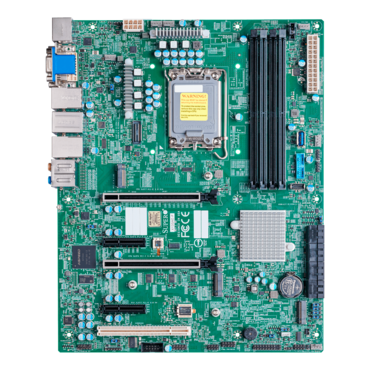

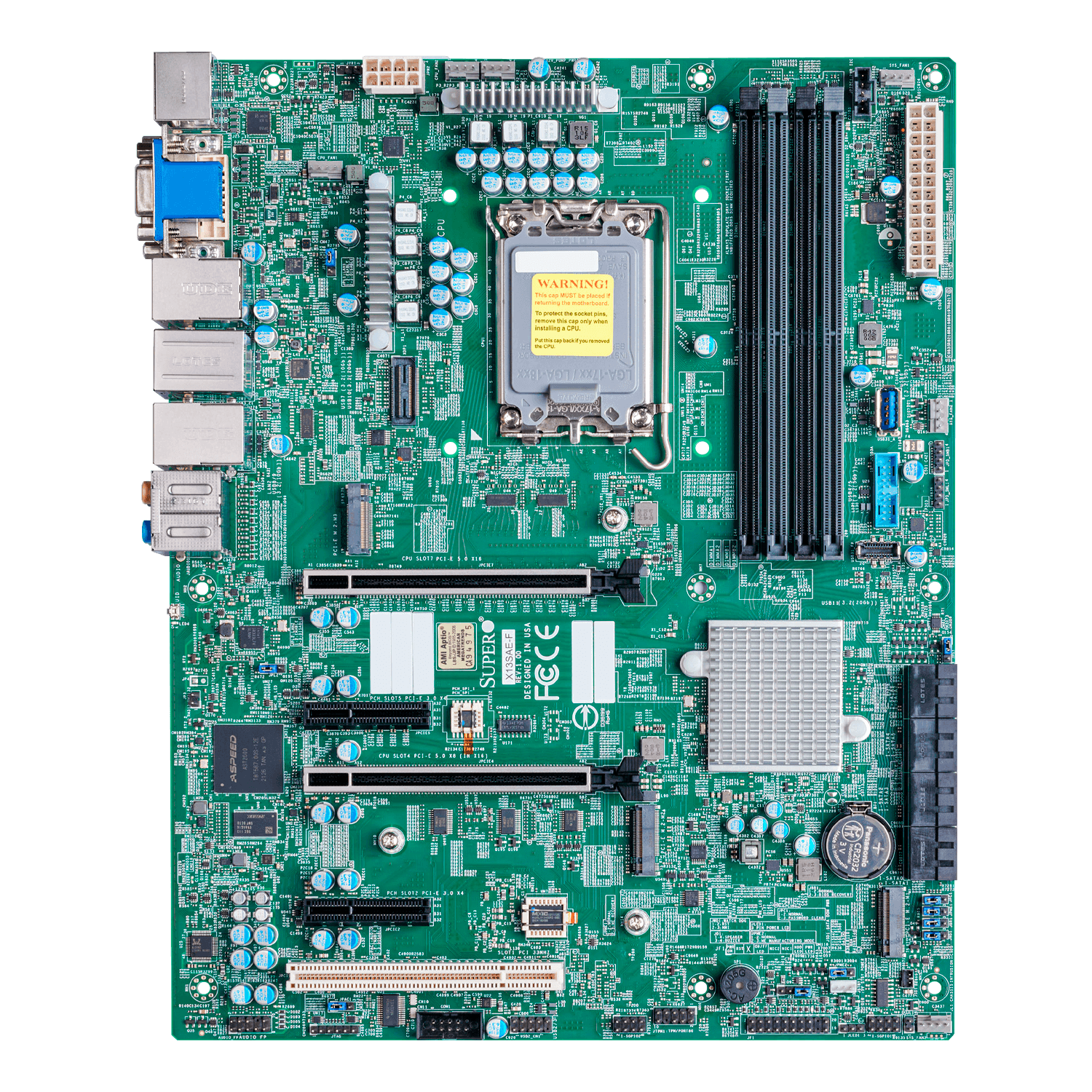

MBD-X13SAE-F-O, Intel® W680, LGA-1700, DDR5-4400 192GB ECC/non-ECC UDIMM / 4, VGA, M.2 / 3, USB 3.2 Gen2 / 4, 2.5GbLAN, 1GbLAN, ATX Retail
MBD-X13SAE-F-O, Intel® W680, LGA-1700, DDR5-4400 192GB ECC/non-ECC UDIMM / 4, VGA, M.2 / 3, USB 3.2 Gen2 / 4, 2.5GbLAN, 1GbLAN, ATX Retail

MBD-X13SAE-F-O, Intel® W680, LGA-1700, DDR5-4400 192GB ECC/non-ECC UDIMM / 4, VGA, M.2 / 3, USB 3.2 Gen2 / 4, 2.5GbLAN, 1GbLAN, ATX Retail

  • SKU: 15768184
  • Manufacturer: SUPERMICRO
  • MPN: MBD-X13SAE-F-O
  • Availability: TEMPORARILY OUT OF STOCK
Price
$483.01
Quantity:
Product SKUs MBD-X13SAE-F
Physical Stats
Form Factor
  • ATX
Dimension
  • 12" x 9.6" (30.48cm x 24.38cm)
Processor
CPU
  • 14th/13th/12th Gen Intel® Core™ i3/i5/i7/i9 Processors
  • Single Socket Socket V0 (LGA-1700) supported, CPU TDP supports Up to 150W TDP
Core
  • Up to 24 (8+16) cores
System Memory
Memory Capacity
  • 4 DIMM slots
  • Up to 192GB Unbuffered ECC/non-ECC UDIMM, DDR5-4400MT/s
Memory Type
  • 4400/4000/3600 MT/s 192GB
DIMM Sizes
  • 8GB, 16GB, 24GB, 32GB, 48GB
  • UDIMM: 8GB, 16GB, 24GB, 32GB, 48GB
Memory Voltage
  • 1.1V
On-Board Devices
Chipset
  • Intel® W680
SATA
  • Intel® W680 controller for 8 SATA3 (6 Gbps) ports; RAID 0, 1, 5, 10
Audio
  • ALC 888S HD Audio
Network Controllers
  • Single LAN with Intel® Ethernet i225V
  • Single LAN with Intel® PHY I219LM LAN controller
Input / Output
LAN
  • 1 RJ45 Gigabit Ethernet LAN ports
  • 1 RJ45 2.5 Gigabit Ethernet LAN port
USB
  • 3 USB 3.2 Gen1x1 port(s) (1 Vertical Type A; 2 via header)
  • 4 USB 2.0 port(s) (2 via header; 2 rear)
  • 2 USB 3.2 Gen2x2 port(s) (1 rear type C; 1 via header)
  • 3 USB 3.2 Gen2x1 port(s) (3 rear type A)
Video Output
  • 1 DVI - D port(s), 1 DP 1.4a port(s), 1 HDMI 2.0b port(s)
Serial Port
  • 1 COM Port(s) (1 header)
TPM
  • 1 TPM Header
Expansion Slots
PCIe
  • 2 PCIe 5.0 x16 slots (16/NA or 8/8),
  • 2 PCIe 3.0 x4
M.2
  • M.2 Interface: 3 PCIe 4.0 x4, RAID 0, 1, 5
  • Form Factor: 2280
  • Key: M-Key
Note
  • 1 5V PCI 32bit
System BIOS
BIOS Type
  • 32MB SPI Flash with AMI BIOS
BIOS Features
  • ACPI 6.0
  • Plug and Play (PnP)
  • BIOS rescue hot keys
  • Riser card auto-detection support
  • SMBIOS 3.0 or later
Management
Software
Power Configurations
  • Power-on mode for AC power recovery, ACPI Power Management, Power button override mechanism, Wake-on-LAN
PC Health Monitoring
Voltage
  • VBAT, System temperature, CPU temperature, 3.3V standby, 1.05 (PCH), +5V standby, +5V, +3.3V, +12V, CPU thermal trip support, +1.8V PCH
LED
  • Power LED
  • Catastrophic Error LED
FAN
  • 5x 4-pin fan headers (up to 5 fans)
  • Fan speed control
  • Overheat LED indication
Other Features
  • CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion detection, ATX Power connector, ACPI power management, 8-pin 12v DC power connector
Operating Environment
Operating Temperature Range
  • 0°C - 50°C (32°F - 122°F)
Non-Operating Temperature Range
  • -20°C - 60°C (-4°F - 140°F)
