| Product SKUs |

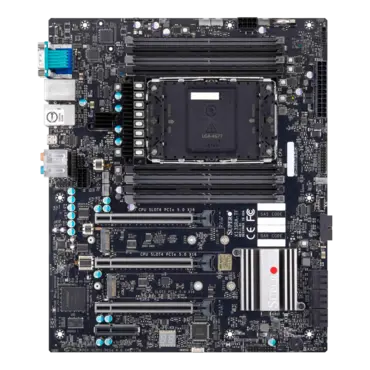

MBD-X13SRA-TF |
| Physical Stats |
| Form Factor |
|
| Dimension |
- 12" x 10" (30.48cm x 25.4cm)
|
| Processor |
| CPU |
|
| Core Count |
|
| Note |
- Supports up to 385W TDP CPUs
|
| System Memory |
| Memory |
- Slot Count: 8 DIMM Slots
- Max Memory (2DPC): Up to 1TB 4800MT/s ECC DDR5 RDIMM/LRDIMM
|
| DIMM Sizes |
- RDIMM:16GB, 32GB, 64GB, 128GB, 256GB
|
| Memory Voltage |
|
| On-Board Devices |
| Chipset |
|
| SATA |
- 6 SATA (6Gbps) via Intel® W790; RAID 0/ 1/ 5/ 10 support
|
| Network Controller |
- Single LAN with Intel® Ethernet Controller I210-AT, 1x 1GbE LAN Port with Intel i210AT, share with IPMI
- Single LAN with Marvell AQC113, 1x 10GbE RJ45 LAN port with AQC113C
|
| Input / Output |
| USB |
- 2 USB 2.0 port(s) (header)
- 1 USB 3.2 Gen2x2 Type-C port(s) (Rear)
- 1 USB 3.2 Gen2x2 port(s) (Header)
- 4 USB 3.2 Gen2x1 Type-A port(s) (Rear)
- 2 USB 3.2 Gen1x1 port(s) (Header)
|
| Video |
|
| Serial |
|
| Audio |
|
| Expansion Slots |
| PCI-Express (PCIe) Configuration |
- 1 PCIe 4.0 x4 slot
- 3 PCIe 5.0 x16 slots
|
| M2 |
- 2 M.2 PCIe 5.0 x4 slots (M-key 2280/22110)
|
| System BIOS |
| BIOS Type |
|
| BIOS Features |
- ACPI 6.0
- Plug and Play (PnP)
- SMBIOS 3.0 or later
- BIOS rescue hot keys
- Riser card auto-detection support
|
| Management |
| Software |
|
| Power Configurations |
- Power-on mode for AC power recovery
- ACPI Power Management
- Power button override mechanism
|
| Security |
| Hardware |
- Trusted Platform Module (TPM) 2.0
|
| PC Health Monitoring |
| FAN |
- 5x 4-pin fan headers (up to 5 fans)
|
