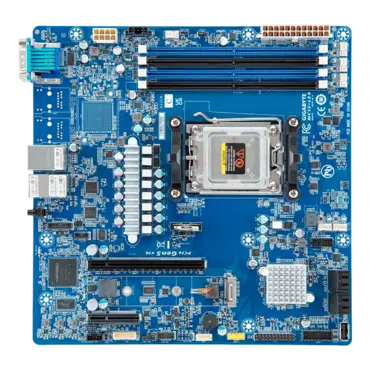

MC13-LE0, AMD B650E, AM5, DDR5-5200 128GB ECC/non-ECC UDIMM / 4, VGA, M.2, USB 3.2 Gen1 / 2, 1GbLAN / 2, microATX Retail
- SKU: 16183982
- Manufacturer: GIGABYTE
- MPN: MC13-LE0
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Price
$374.88
- AMD Ryzen™ 7000 Series Processors
- Dual Channel ECC / Non-ECC Unbuffered DDR5, 4 DIMMs
- 2 x 1GbE LAN ports (Intel® I210)
- 1 x Dedicated management port
- BMC ASPEED AST2600
- PCIe Gen5 Ready x16 slot and M.2 slot
- 4 x SATA 6Gb/s ports
| Form Factor |
microATX 244W x 244D mm |
| CPU |
AMD Ryzen™ 7000 Series Processors Note: - Recommend to install 170 watts CPU with water cooling kit. - When installing water cooling kit for CPU or GPU, please keep proper airflow for ventilation to prevent heat accumulation. |
| Socket | AM5 |
| Chipset | B650E |
| Memory |
4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules Support non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Memory speed: up to 5200 MHz (1DPC), 3600 MHz (2DPC) |
| LAN |
2 x 1GbE LAN ports (Intel® I210 ) 1 x 10/100/1000 management LAN |
| Video |
Integrated in Aspeed® AST2600 2D Video Graphic Adapter with PCIe bus interface 1920x1200@60Hz 32bpp |
| Audio | N/A |
| SAS | N/A |
| SATA | 4 x SATA 6Gb/s ports |
| RAID | RAID 0/1/10 |
| Expansion Slots |
Slot_3 (PCIe x16): 1 x PCIe x16 (Gen5 x16 bus) slot, from CPU Slot_1 (PCIe x4): 1 x PCIe x4 (Gen4 x4 bus) slot, from FCH 1 x M.2 slot: - M-key - PCIe Gen5 x4, from CPU - Supports NGFF-2242/2280 |
| Internal I/O |
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 4 x SATA ports 1 x M.2 slot 1 x HDD backplane board header 1 x CPU fan header 5 x System fan headers 1 x USB 3.2 Gen1 header with 2-ports 1 x USB 2.0 type-A connector 1 x USB 2.0 header with 2-ports 1 x TPM header 1 x Front panel header 1 x IPMB connector 1 x PMBUS connector 1 x Clear CMOS jumper |
| Rear I/O |
2 x USB 3.2 Gen1 type A 1 x VGA 1 x COM 2 x 1GbE RJ45 LAN 1 x MLAN 1 x ID button with LED |
| TPM |
1 x TPM header with SPI interface Optional TPM2.0 kit: CTM010 |
| OS Compatibility |
Windows 11 64-bit Windows 10 64-bit |
| Board Management |
Aspeed® AST2600 management controller GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
|
| PSU Connectors |
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector |
| Operating Properties |
Operating temperature: 10°C to 40°C Operating humidity: 8-80% (non-condensing) Non-operating temperature: -40°C to 60°C Non-operating humidity: 20%-95% (non-condensing) |
| Retail Packaging Content |
1 x MC13-LE0 1 x I/O shield 1 x Quick start guide 4 x SATA cables Single Box dimensions: 321 x 308.5 x 78.5 mm Carton dimensions: 630 x 420 x 345 mm Quantity: 10 x single boxes in one carton |
| Bulk Packaging Content |
10 x MC13-LE0 10 x I/O shields Carton dimensions: 609 x 581 x 362 mm MOQ: 10 PCS MC13-LE0 |
| Reference Numbers |
Retail: 9MC13LE0MR-000-1* Bulk: 9MC13LE0NR-000-1* Part Numbers: - I/O shield: 12AIO-MC13LE-00R - SATA 6Gb/s cable: 12CF1-2SAT01-31R (1 set 2 cables) |
|
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice. * Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration. * All trademarks and logos are the properties of their respective holders. * Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount. |
|
