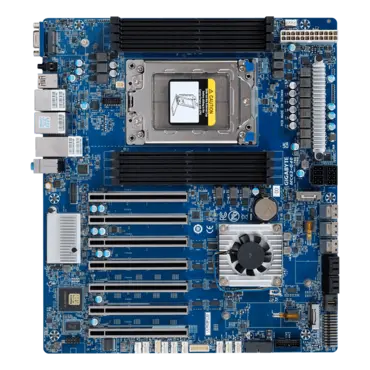

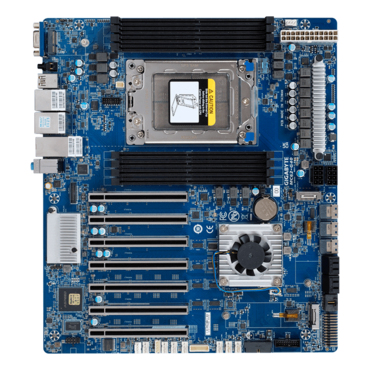

MC62-G40, AMD WRX80 Chipset, LGA sWRX8, VGA, CEB Motherboard
Quantity:
- SKU: 14871147
- Manufacturer: GIGABYTE
- MPN: MC62-G40
- Availability: CONTACT US
Starting At
$748.65
MC62-G40, AMD WRX80 Chipset, LGA sWRX8, VGA, CEB Motherboard
GIGABYTE MC62-G40. For the professional workstation users that rely on workloads for visual effects design or rendering, there is the AMD Ryzen™ Threadripper™ PRO. Engineering, data science, and oil & gas exploration are among the fields that need the highest possible CPU platform to handle the large amounts of data in an efficient manner.
- AMD Ryzen™ Threadripper™ PRO 3000WX Processors
- 8-Channel DDR4 UDIMM/RDIMM/3DS RDIMM/LRDIMM 8 x DIMMs
- Dual Intel® 10GbE and 1GbE LAN Ports
- 1 x Dedicated Management Port
- 7 x PCIe 4.0 Slots for Multi-GPU
- 4x SATA Ports, 3x SlimSAS Ports (PCIe Gen4 or SATA)
- Dual M.2 (PCIe Gen4 or SATA) and USB 3.2 Gen2
| Form Factor |
CEB 305W x 267D (mm) |
| CPU |
AMD Ryzen™ Threadripper™ PRO 3000WX Series Processors Processor up to 64-core, 128 threads Processor TDP up to 280W |
| Socket | sWRX8 Socket |
| Chipset | AMD® WRX80 |
| Memory |
8 x DIMM slots DDR4 memory module supported only 8 channel memory architecture Support for 3200/2933/2666/2400/2133 MHz; ECC & non-ECC; buffered & unbuffered; UDIMM, RDIMM, 3DS R-DIMM, LRDIMM Total up to 2TB of system memory (256GB single LRDIMM capacity) NOTE: When installing memory modules, make sure to begin with the first socket of each channel, such as DIMM_P0_A0, DIMM_P0_B0, DIMM_P0_C0, DIMM_P0_D0 |
| LAN |
2 x 10GbE LAN (Intel® X550-AT2) 1 x GbE LAN (Intel® i210) 1 x 10/100/1000 management LAN |
| Video |
Integrated in Aspeed® AST2600 2D Video Graphic Adapter with PCIe bus interface 1920x1200@60Hz 32bpp |
| Audio |
Realtek® ALC4080 HD audio codec Supports 7.1 channel configurations 3 ports Audio Jack (Audio in/Audio out/Mic) |
| SAS | NA |
| SATA |
- 4 x SATA III 6Gb/s ports - 2 x M.2 slot for storage (PCIe Gen4 x4 or SATA III 6Gb/s) - 3 x SlimSAS ports (PCIe Gen4 x4 or 4x SATA III 6Gb/s each) |
| RAID | RAID 0, RAID 1, RAID 5 and RAID 10 |
| Expansion Slots |
Slot_7: 1 x PCIe x16 (Gen4 x16) slot Slot_6: 1 x PCIe x16 (Gen4 x16) slot Slot_5: 1 x PCIe x16 (Gen4 x16) slot Slot_4: 1 x PCIe x16 (Gen4 x16) slot Slot_3: 1 x PCIe x16 (Gen4 x16) slot Slot_2: 1 x PCIe x16 (Gen4 x8) slot Slot_1: 1 x PCIe x16 (Gen4 x16) slot 2 x M.2 slot for storage: - M-key - PCIe Gen4 x4 or 4x SATA 6Gb/s - Supports NGFF-2242/2280 card 1 x M.2 slot for Wi-Fi: - E-key - Supports NGFF-2230 card 3 x U.2 connector: - SlimSAS type - PCIe Gen4 x4 or 4x SATA III 6Gb/s |
| Internal I/O |
1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x PCH fan header 8 x System fan headers 2 x USB 3.0 headers for 4 ports 1 x PMBus connector 4 x SATA III 6Gb/s ports 2 x M.2 slot for storage 1 x M.2 slot for Wi-Fi 3 x U.2 connector 1 x Front panel header 1 x Back plane board header 1 x PMBus header 1 x IPMB header 1 x TPM header 1 x COM header |

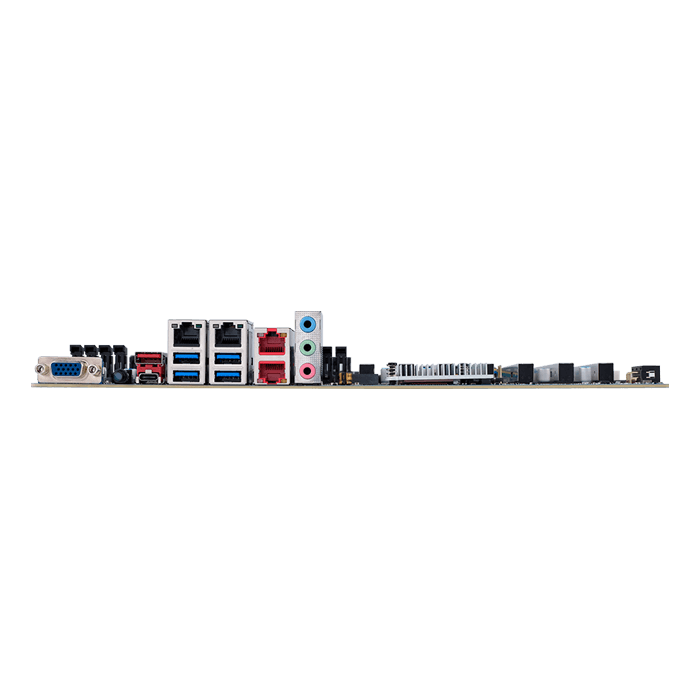

| Rear I/O |
1 x VGA 1 x ID Button 2 x USB 3.2 gen2 (Type-A + Type-C®) 1 x RJ45 (GbE LAN) 1 x MLAN 4 x USB 3.2 gen2 Type-A 2 x RJ45 (red) (10GbE LAN) 1 x 3 in 1 Audio jacks |
| TPM |
1 x TPM header with SPI interface Optional TPM2.0 kit: CTM010 |
| OS Compatibility |
Windows 10 (64bit) Red Hat Enterprise Linux 8.2 (64bit) Red Hat Enterprise Linux 8.3 (64bit) Ubuntu 20.04 LTS (64bit) |
| Board Management | ASPEED® AST2600 |
| PSU Connectors |
1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connector |
| Operating Properties |
Operating temperature: 10°C to 40°C Operating humidity: 8-80% (non-condensing) Non-operating temperature: -40°C to 60°C Non-operating humidity: 20%-95% (non-condensing) |

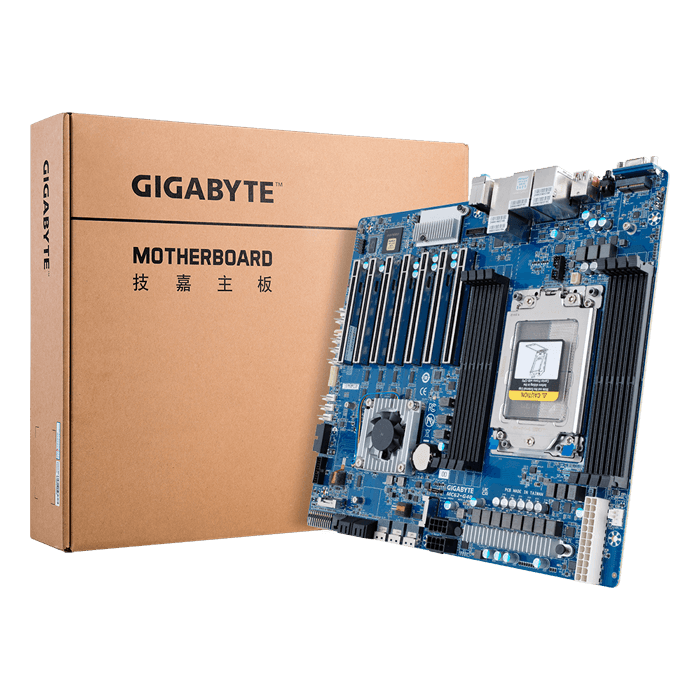

| Retail Packaging Content |
1 x MC62-G40 1 x I/O shield 1 x Quick start guide 4 x SATA III 6Gb/s cables (500mm) 1 x slimSAS to 4 SATA III 6Gb/s cable Single Box dimensions: 360 x 330 x 80 mm Carton dimension: 674 x 424 x 385 mm Quantity: 10 x single box with one carton |
| Bulk Packaging Content |
10 x MC62-G40 10 x I/O shields Carton dimensions: 600 x 473 x 495 mm |
| Reference Numbers |
Retail: 9MC62G40MR-00 Bulk: 9MC62G40NR-00-10B1 I/O shield: 12AIO-MC62G4-00R Fan-sink: 25ST1-243103-A0R (in option) |
