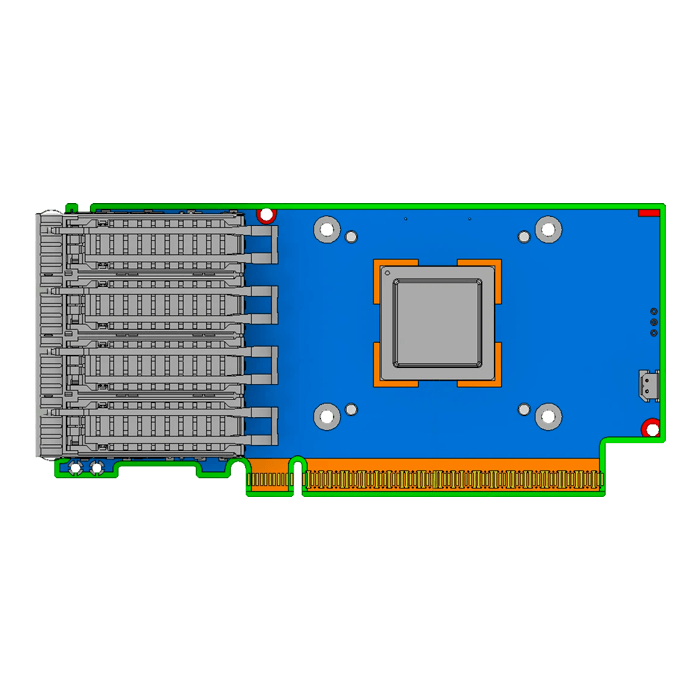

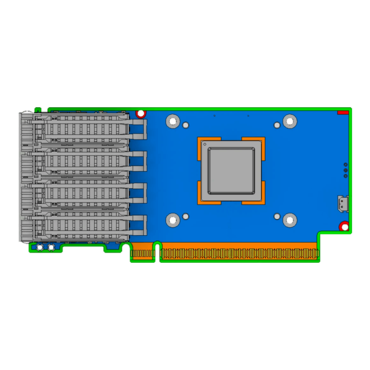

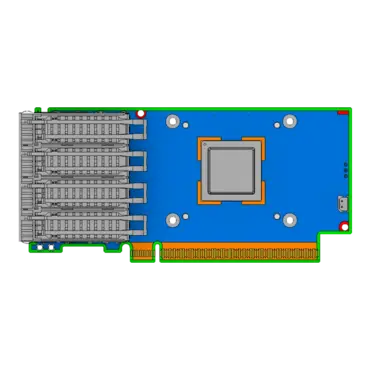

MCX713104AS-ADAT, 50Gbps, 4xSFP56, PCIe Network Adapter
- SKU: 17185188
- Manufacturer: NVIDIA
- MPN: MCX713104AS-ADAT
- Availability: TEMPORARILY OUT OF STOCK
Price
$919.25
| Physical | PCIe Half Height, Half Length 2.71 in. x 5.64 in. (68.90mm x 143.50 mm) | ||
| Interfaces | See Supported Interfaces | ||
| PCI Express Gen 4.0: SERDES @ 16GT/s, x16 lanes (4.0 and 3.0 compatible) | |||
| Networking Port: Quad-port SFP56 Ethernet (copper and optical) | |||
| Protocol Support | Data Rate | Ethernet | 50/25GbE |
| Ethernet Protocols: 50GAUI-2 C2M, 50GAUI-1 C2M, 50GBASE-CR, 50GBASE-R2 , 40GBASE-CR4, 40GBASE-R2, 25GBASE-R, 10GBASE-R, 10GBASE-CX4, 1000BASE-CX, CAUI-4 C2M, 25GAUI C2M, XLAUI C2M , XLPPI, SFI | |||
| Capabilities | MCX713104AS-ADAT: Secure Boot Enabled, Crypto Disabled | ||
| Electrical and Thermal Specifications | Voltage: 12V, 3.3VAUX Maximum current: 100mA | ||
| Typical power with passive cables in PCIe Gen 4.0 x16 | |||
| MCX713104AS-ADAT | 15.1W | ||
| The complete electrical and thermal specifications are provided in “NVIDIA ConnectX-7 Electrical and Thermal Specifications” document. You can access the document either by logging into NVOnline or by contacting your NVIDIA representative. | |||
| Environmental | Temperature | Operational | 0°C to 55°C |
| Non-operational |
-40°C to 70°Ca |
||
| Humidity | Operational | 10% to 85% relative humidity | |
| Non-operational | 10% to 90% relative humidity | ||
| Altitude (Operational) | 3050m | ||
| Regulatory | Safety: CB / cTUVus / CE | ||
| EMC: CE / FCC / VCCI / ICES / RCM / KC | |||
| RoHS: RoHS Compliant | |||
| Notes : a. The non-operational storage temperature specifications apply to the product without its package. | |||
