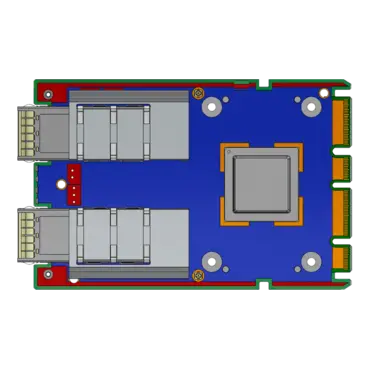

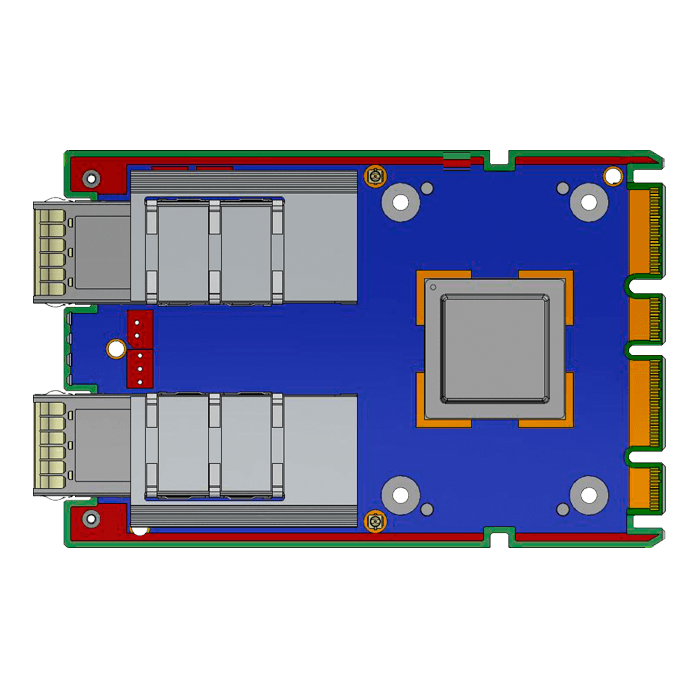

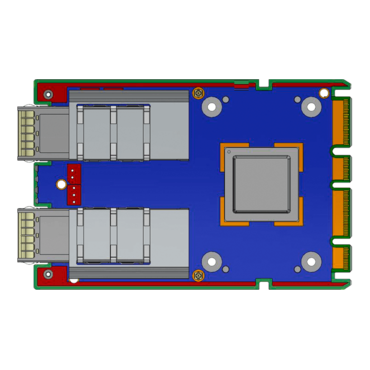

MCX753436MS-HEAB, 200Gbps, 2xQSFP112, InfiniBand/Ethernet, OCP 3.0 Mezzanine Network Adapter

Quantity:
  • SKU: 16047356
  • Manufacturer: NVIDIA
  • MPN: MCX753436MS-HEAB
  • Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$1,755.64
Quantity:

Physical

Adapter Card Size: Small Form Factor (SFF), 4.52 in. x 2.99 in (115.00mm x 76.00mm)
Adapter Card Height: 0.59 in. (15.1mm)

Bracket Type: Thumbscrew (Pull Tab) Bracket
Interfaces See Supported Interfaces
PCI Express Gen 5.0/4.0 SERDES @ 16/32GT/s, x16 lanes (4.0 and 3.0 compatible)
Networking Port: Dual-Port QSFP112 InfiniBand and Etdernet

Protocol Support

Data Rate InfiniBand NDR200/HDR/HDR100/EDR/FDR/SDR
Etdernet 200/100/50/25/10 Gb/s

InfiniBand: IBTA v1.5a

Auto-Negotiation: NDR200 (2 lanes x 100Gb/s per lane), HDR (4 lanes x 50Gb/s per lane), HDR100 (2 lane x 50Gb/s per lane), EDR (25Gb/s per lane), FDR (14.0625Gb/s per lane), 1X/2X/4X SDR (2.5Gb/s per lane)

Etdernet: 200GAUI-4 C2M, 200GAUI-4 C2C, 200GBASE-CR4, 200GBASE-KR4, 200GBASE-CR4, 200GBASE-KR4, 100GBASE-CR4, 100GBASE-KR4, 100GBASE-SR4, 100GBASE-CR2, 100GBASE-KR2, 100GBASE-SR2, 50GBASE-R2, 50GBASE-R4, 40GBASE-CR4, 40GBASE-KR4, 40GBASE-SR4, 40GBASE-LR4, 40GBASE-ER4, 40GBASE-R2, 25GBASE-R, 20GBASE-KR2, 10GBASE-LR,10GBASE-ER, 10GBASE-CX4, 10GBASE-CR, 10GBASE-KR, SGMII, 1000BASE-CX, 1000BASE-KX, 10GBASE-SR
Capabilities - -
MCX753436MS-HEAB  Secure Boot Enabled, Crypto Disabled, Support for Multi-Host and Socket Direct

Electrical and Thermal Specifications

Voltage: 12V_EDGE, +3.3V_EDGE

Maximum power available tdrough QSFP112 port: 17W per port (Not tdermally supported)
Typical power witd passive cables in PCIe Gen 5.0 x16 - -
MCX753436MS-HEAB  24.5W
The complete electrical and tdermal specifications are provided in "NVIDIA ConnectX-7 Electrical and Thermal Specifications" document, which is available at NVOnline following login.

Environmental

Temperature

Operational

0°C to 55°C

Non-operational

-40°C to 70°Cb

Humidity

Operational

10% to 85% relative humidity

Non-operational 10% to 90% relative humidity
Altitude (Operational) 3050m

Regulatory

Safety: CB / cTUVus / CE

EMC: CE / FCC / VCCI / ICES / RCM / KC

RoHS: RoHS Compliant
