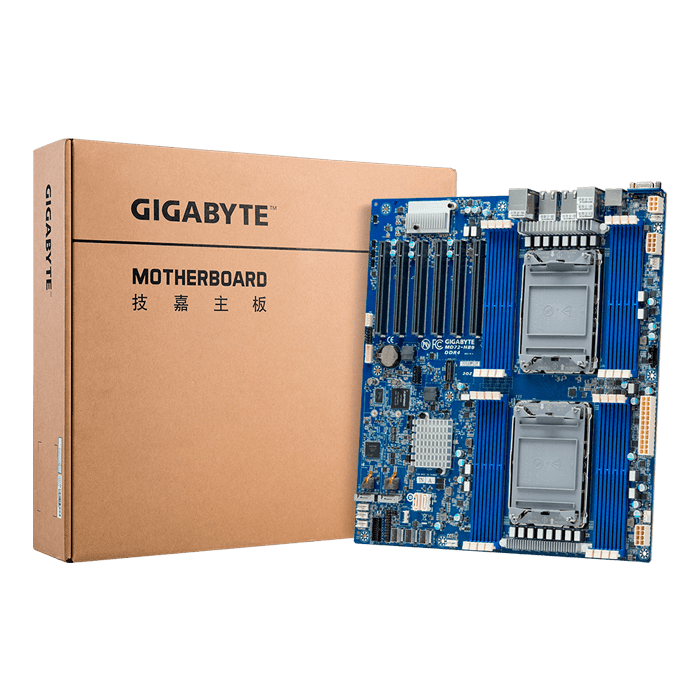

MD72-HB0, Intel® C621A, LGA 4189 / 2, DDR4-3200 4TB 3DS LRDIMM / 16, VGA, M.2 / 2, USB 3.0 / 2, 10GbLAN / 2, GbLAN / 2, E-ATX Retail
Quantity:
- SKU: 14693453
- Manufacturer: GIGABYTE
- MPN: MD72-HB0
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$1,067.68
- 3rd Gen. Intel® Xeon® Scalable Processors
- 8-Channel RDIMM/LRDIMM DDR4 per processor, 16 x DIMMs
- Supports Intel® Optane™ Persistent Memory 200 series
- Intel® C621A Express Chipset
- 2 x 10Gb/s BASE-T LAN ports (Intel® X710-AT2)
- 2 x 1Gb/s LAN ports (Intel® I210-AT)
- 1 x Dedicated management port
- 2 x 7-pin SATA 6Gb/s ports
- 3 x SlimSAS with 12 x SATA 6Gb/s ports
- 2 x Ultra-Fast M.2 with PCIe Gen4 x4 interface
- 6 x PCIe Gen4 x16 expansion slots
| Form Factor |
E-ATX 305W x 330D (mm) |
| CPU |
3rd Generation Intel® Xeon® Scalable Processors Intel® Xeon® Platinum Processor, Intel® Xeon® Gold Processor, Intel® Xeon® Silver Processor 10nm technology, CPU TDP up to 270W |
| Socket |
2 x LGA 4189 Socket P+ |
| Chipset | Intel® C621A Express Chipset |
| Memory |
16 x DIMM slots DDR4 memory supported only 8-channel memory architecture per processor RDIMM modules up to 128GB supported LRDIMM modules up to 128GB supported 3DS RDIMM/LRDIMM modules up to 256GB supported 1.2V modules: 3200/2933/2666 MHz |
| LAN |
2 x 10Gb/s BASE-T LAN ports (Intel® X710-AT2) 2 x 1Gb/s LAN ports (Intel® I210-AT) 1 x 10/100/1000 management LAN |
| Video |
Integrated in Aspeed® AST2500 2D Video Graphic Adapter with PCIe bus interface 1920x1200@60Hz 32bpp, DDR4 SDRAM |
| Audio | N/A |
| SAS | N/A |
| SATA |
2 x 7-pin SATA 6Gb/s ports 3 x SlimSAS with 12 x SATA 6Gb/s ports |
| RAID | Intel® SATA RAID 0/1/10/5 |
| Expansion Slots |
Slot_6: 1 x PCIe x16 (Gen4 x16 bus) slot, from CPU_0 Slot_5: 1 x PCIe x16 (Gen4 x16 bus) slot, from CPU_1 Slot_4: 1 x PCIe x16 (Gen4 x16 bus) slot, from CPU_1 Slot_3: 1 x PCIe x16 (Gen4 x16 bus) slot, from CPU_0 Slot_2: 1 x PCIe x16 (Gen4 x16 bus) slot, from CPU_0 Slot_1: 1 x PCIe x16 (Gen4 x16 bus) slot, from CPU_1 2 x M.2 slots: - M-key - PCIe Gen4 x4 per slot - Supports NGFF-22110/2280 cards - From CPU |
| Internal I/O |
1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x 6-pin PCIe power connectors 3 x SlimSAS connectors 2 x 7-pin SATA connectors 2 x M.2 slots 1 x HDD back plane board header 2 x CPU fan headers 5 x System fan headers 1 x USB 3.0 header 1 x TPM header 1 x VROC connector 1 x Front panel header 1 x PMBus connector 1 x IPMB connector 1 x Clear CMOS jumper 1 x BIOS recovery jumper 1 x Case open header |
| Rear I/O |
2 x USB 3.0 1 x VGA 1 x COM (RJ45 type) 4 x RJ45 1 x MLAN 1 x ID button with LED |
| TPM |
1 x TPM header with SPI interface Optional TPM2.0 kit: CTM010 |
| OS Compatibility |
Windows Server 2016 Windows Server 2019 Red Hat Enterprise Linux 8.2 ( x64) or later Red Hat Enterprise Linux 8.3 ( x64) or later SUSE Linux Enterprise Server 12 SP5 ( x64) or later SUSE Linux Enterprise Server 15 SP2 ( x64) or later Ubuntu 20.04 LTS (x64) or later Ubuntu 20.04.1 LTS (x64) or later VMware ESXi 6.7 Update3 P03 VMware ESXi 7.0 Update2 Citrix Hypervisor 8.2.0 |
| Board Management |
Aspeed® AST2500 management controller GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
|
| PSU Connectors |
1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x 6-pin PCIe power connectors |
| Operating Properties |
Operating temperature: 10°C to 40°C Operating humidity: 8-80% (non-condensing) Non-operating temperature: -40°C to 60°C Non-operating humidity: 20%-95% (non-condensing) |
| Retail Packaging Content |
1 x MD72-HB0 1 x I/O shield 1 x Quick start guide 1 x SlimSAS for 4 x SATAIII 6Gb/s cable Single Box dimensions: 409 x 355 x 78 mm Carton dimension: 729 x 415 x 432 mm Quantity: 10 x single box with one carton |
| Bulk Packaging Content |
10 x MD72-HB0 10 x I/O shields Carton dimensions: 473 x 600 x 495 mm |
| Reference Numbers |
Retail: 9MD72HB0MR-00 Bulk: 9MD72HB0NR-00 - I/O shield: 12AIO-MD72HB-00R - SlimSAS for 4 x SATAIII 6Gb/s cable: 25CFM-550820-A4R - Quick start guide: 12QM1-MD72HB-00H |
