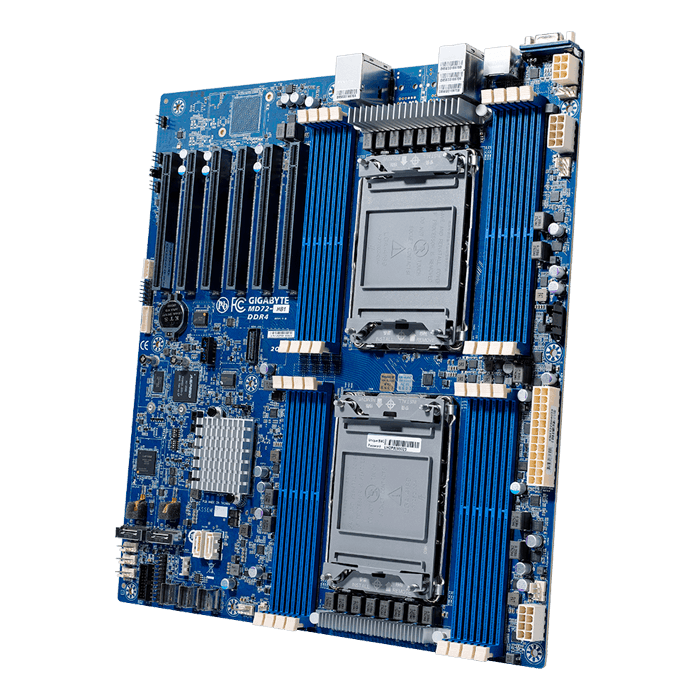

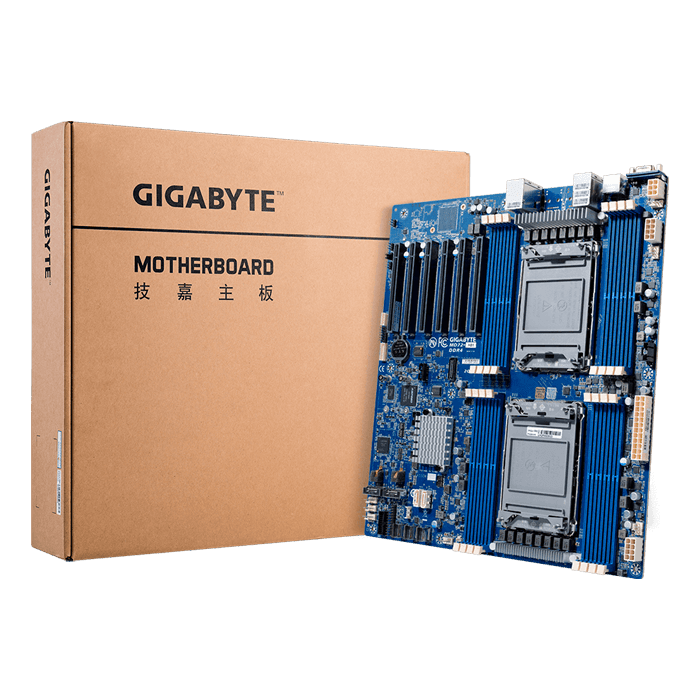

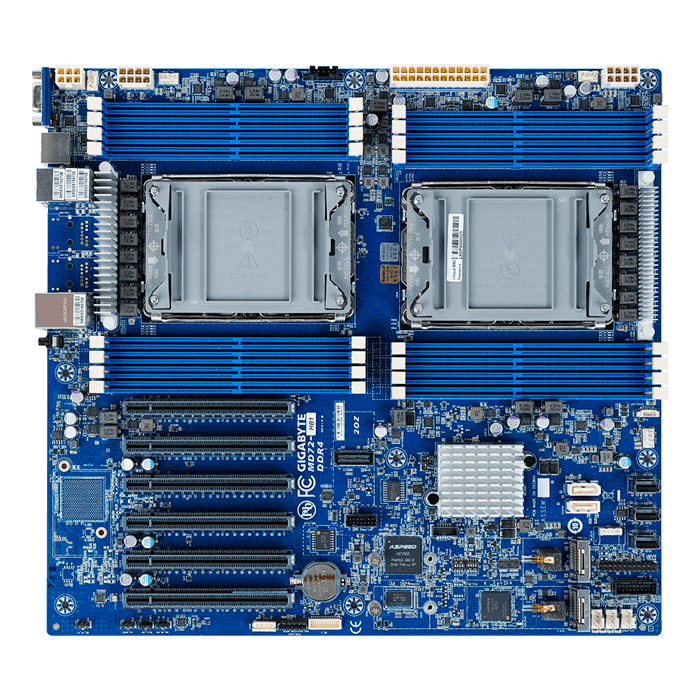

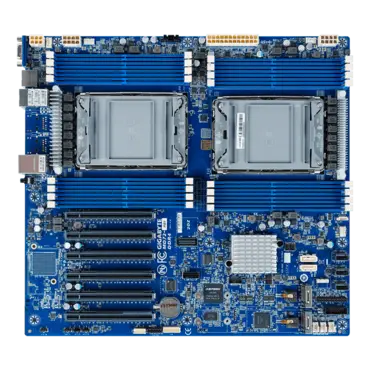

MD72-HB1, Intel® C621A, LGA 4189 /2, DDR4-3200 4TB 3DS LRDIMM / 16, VGA, M.2 / 2, USB 3.0 / 2, 10GbLAN / 2, E-ATX OEM

Quantity:
  • SKU: 15014504
  • Manufacturer: GIGABYTE
  • MPN: MD72-HB1
  • Availability: TEMPORARILY OUT OF STOCK
Starting At
$906.92
Quantity:
MD72-HB1, Intel® C621A, LGA 4189 /2, DDR4-3200 4TB 3DS LRDIMM / 16, VGA, M.2 / 2, USB 3.0 / 2, 10GbLAN / 2, E-ATX OEM

GIGABYTE MD72-HB1. Where Compute Reigns. 3rd Gen Intel® Xeon® Scalable Processors – “Ice Lake”. GIGABYTE servers and Intel Xeon Scalable Processors deliver incredible 1P/2P performance from edge to data center with incredible gains in I/O throughput and workload demands that need high performing CPUs with large, yet optimized, memory configurations.

  • 3rd Gen. Intel® Xeon® Scalable Processors
  • 8-Channel RDIMM/LRDIMM DDR4 per processor, 16 x DIMMs
  • Supports Intel® Optane™ Persistent Memory 200 series
  • Intel® C621A Express Chipset
  • 2 x 1Gb/s LAN ports (Intel® I210-AT)
  • 1 x Dedicated management port
  • 2 x 7-pin SATA 6Gb/s ports
  • 3 x SlimSAS with 12 x SATA 6Gb/s ports
  • 2 x Ultra-Fast M.2 with PCIe Gen4 x4 interface
  • 6 x PCIe Gen4 x16 expansion slots
Form Factor E-ATX
305W x 330D (mm)
CPU 3rd Generation Intel® Xeon® Scalable Processors
Intel® Xeon® Platinum Processor, Intel® Xeon® Gold Processor, Intel® Xeon® Silver Processor
10nm technology, CPU TDP up to 270W
Socket 2 x LGA 4189
Socket P+
Chipset Intel® C621A Express Chipset
Memory 16 x DIMM slots
DDR4 memory supported only
8-channel memory architecture per processor
RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
3DS RDIMM/LRDIMM modules up to 256GB supported
1.2V modules: 3200/2933/2666 MHz
LAN 2 x 1Gb/s LAN ports (Intel® I210-AT)
1 x 10/100/1000 management LAN
Video Integrated in Aspeed® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM
Audio N/A
SAS N/A
SATA 2 x 7-pin SATA 6Gb/s ports
3 x SlimSAS with 12 x SATA 6Gb/s ports
RAID Intel® SATA RAID 0/1/10/5
Expansion Slots Slot_6: 1 x PCIe x16 (Gen4 x16 bus) slot, from CPU_0
Slot_5: 1 x PCIe x16 (Gen4 x16 bus) slot, from CPU_1
Slot_4: 1 x PCIe x16 (Gen4 x16 bus) slot, from CPU_1
Slot_3: 1 x PCIe x16 (Gen4 x16 bus) slot, from CPU_0
Slot_2: 1 x PCIe x16 (Gen4 x16 bus) slot, from CPU_0
Slot_1: 1 x PCIe x16 (Gen4 x16 bus) slot, from CPU_1

2 x M.2 slots:
- M-key
- PCIe Gen4 x4 per slot
- Supports NGFF-22110/2280 cards
- From CPU
Internal I/O 1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x 6-pin PCIe power connectors
3 x SlimSAS connectors
2 x 7-pin SATA connectors
2 x M.2 slots
1 x HDD back plane board header
2 x CPU fan headers
5 x System fan headers
1 x USB 3.0 header
1 x TPM header
1 x VROC connector
1 x Front panel header
1 x PMBus connector
1 x IPMB connector
1 x Clear CMOS jumper
1 x BIOS recovery jumper
1 x Case open header
Rear I/O 2 x USB 3.0
1 x VGA
1 x COM (RJ45 type)
2 x RJ45
1 x MLAN
1 x ID button with LED
TPM 1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010
OS Compatibility Windows Server 2016
Windows Server 2019
Windows Server 2022

Red Hat Enterprise Linux 8.2 ( x64) or later
Red Hat Enterprise Linux 8.3 ( x64) or later

SUSE Linux Enterprise Server 12 SP5 ( x64) or later
SUSE Linux Enterprise Server 15 SP2 ( x64) or later

Ubuntu 20.04 LTS (x64) or later
Ubuntu 22.04 LTS (x64) or later

VMware ESXi 6.7 Update3 P03
VMware ESXi 7.0 Update2

Citrix Hypervisor 8.2.0
Board Management Aspeed® AST2500 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

  • Dashboard
  • HTML5 KVM
  • Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
  • Sensor Reading History Data
  • FRU Information
  • SEL Log in Linear Storage / Circular Storage Policy
  • Hardware Inventory
  • Fan Profile
  • System Firewall
  • Power Consumption
  • Power Control
  • LDAP / AD / RADIUS Support
  • Backup & Restore Configuration
  • Remote BIOS/BMC/CPLD Update
  • Event Log Filter
  • User Management
  • Media Redirection Settings
  • PAM Order Settings
  • SSL Settings
  • SMTP Settings
PSU Connectors 1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x 6-pin PCIe power connectors
Operating Properties Operating temperature: 10°C to 40°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
