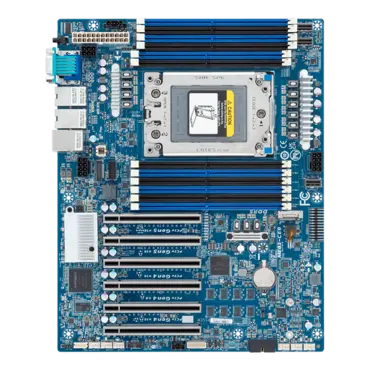

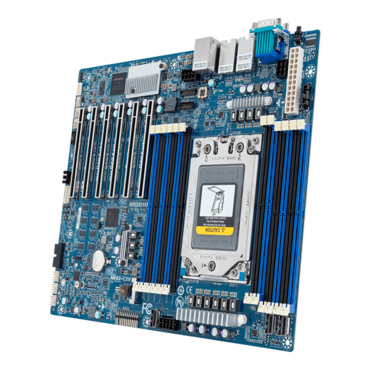

ME03-CE0, AMD SoC, SP6, DDR5-4800 ECC RDIMM / 12, VGA, M.2, USB 3.2 Gen1 / 2, MCIO / 3, 10GbLAN / 2, ATX OEM
- SKU: 17108964
- Manufacturer: GIGABYTE
- MPN: ME03-CE0
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Price
$701.71
- AMD EPYC™ 8004 Series processors
- Single processor, 5nm technology
- 6-Channel RDIMM DDR5, 12 x DIMMs
- 2 x 10Gb/s BASE-T LAN ports (Broadcom® BCM57416)
- 1 x Dedicated management port
- 3 x MCIO 4i for 3 x Gen5 NVMe or 12 x SATA
- 1 x M.2 slot with PCIe Gen3 x4 interface
- 3 x PCIe Gen5 x16 expansion slots
- 3 x PCIe Gen4 x16 and x8 expansion slots
| Form Factor |
ATX 304.8 x 254 mm (W x D) |
| CPU |
AMD EPYC™ 8004 Series processors Single processor, 5nm technology Up to 64-core, 128 threads per processor cTDP up to 225W |
| Socket |
1 x LGA 4844 Socket SP6 |
| Chipset | System on Chip |
| Memory |
12 x DIMM slots DDR5 memory supported only 6-Channel memory architecture RDIMM modules up to 96GB supported Memory speed: Up to 4800 MHz (1DPC), 3600 MHz (2DPC) |
| LAN |
2 x 10Gb/s BASE-T LAN ports (1 x Broadcom® BCM57416) NCSI function supported 1 x 10/100/1000 management LAN |
| Video |
Integrated in Aspeed® AST2600 2D Video Graphic Adapter with PCIe bus interface 1920x1200@60Hz 32bpp, DDR4 SDRAM |
| Audio | N/A |
| SAS | N/A |
| SATA | 3 x MCIO 4i for 12 x SATA |
| RAID | N/A |
| Expansion Slots |
Slot_6: 1 x PCIe x16 (Gen5 x16 bus) slot Slot_5: 1 x PCIe x16 (Gen5 x16 bus) slot Slot_4: 1 x PCIe x16 (Gen5 x16 bus) slot Slot_3: 1 x PCIe x16 (Gen4 x16 bus) slot Slot_2: 1 x PCIe x16 (Gen4 x8 bus) slot Slot_1: 1 x PCIe x16 (Gen4 x16 or x8 bus) slot, shared with Slot_2 1 x M.2 slot: - M-key - PCIe Gen3 x4 - Supports 2280/22110 cards 3 x MCIO 4i connectors for 3 x Gen5 NVMe or 12 x SATA |
| Internal I/O |
1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 3 x MCIO 4i connectors 1 x M.2 slot 1 x CPU fan header 5 x System fan headers 1 x USB 3.2 Gen1 header 1 x TPM header 1 x Front panel header 1 x Backplane board header 1 x PMBus connector 1 x IPMB connector 1 x Clear CMOS jumper 1 x BIOS recovery jumper |
| Rear I/O |
2 x USB 3.2 Gen1 1 x VGA 1 x COM 2 x RJ45 1 x MLAN 1 x ID button with LED |
| TPM |
1 x TPM header with SPI interface Optional TPM2.0 kit: CTM010 |
| OS Supported | Please refer to OS compatibility table in support page |
| Board Management |
Aspeed® AST2600 management controller GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
|
| PSU Connectors |
1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors |
| Operating Properties |
Operating temperature: 10°C to 40°C Operating humidity: 8-80% (non-condensing) Non-operating temperature: -40°C to 60°C Non-operating humidity: 20%-95% (non-condensing) |
| Retail Packaging Content |

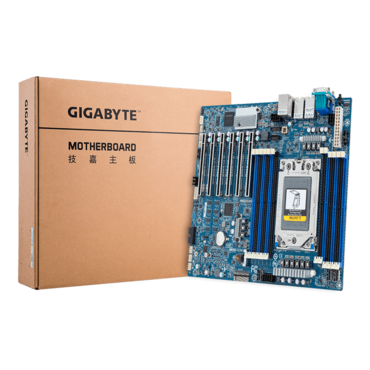

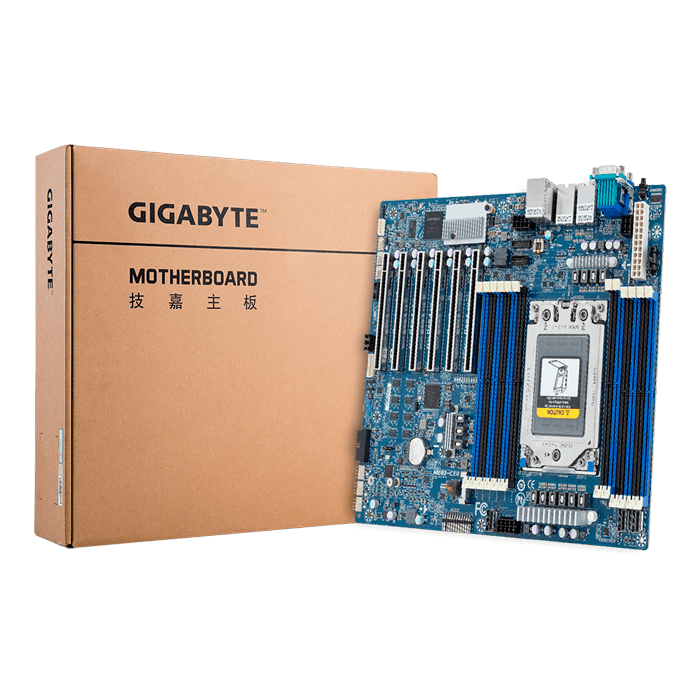

1 x ME03-CE0 1 x I/O shield 1 x Quick start guide 1 x MCIO 4i to 4 x SATA 6Gb/s cable Single Box dimensions: 360 x 330 x 80 mm Carton dimensions: 674 x 424 x 385 mm Quantity: 10 x single boxes in one carton |
| Bulk Packaging Content |
10 x ME03-CE0 10 x I/O shields Carton dimensions: 600 x 473 x 495 mm |
| Reference Numbers |
Retail: 9ME03CE0MR-000-10* Bulk: 9ME03CE0NR-000-10* Part Numbers: - I/O shield: 12AIO-ME03CE-00R - MCIO 4i to 4 x SATA 6Gb/s cable: 25CF9-780721-A4R |
|
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice. * Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration. * All trademarks and logos are the properties of their respective holders. * Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount. |
|
