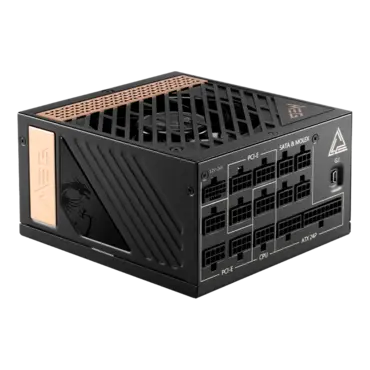

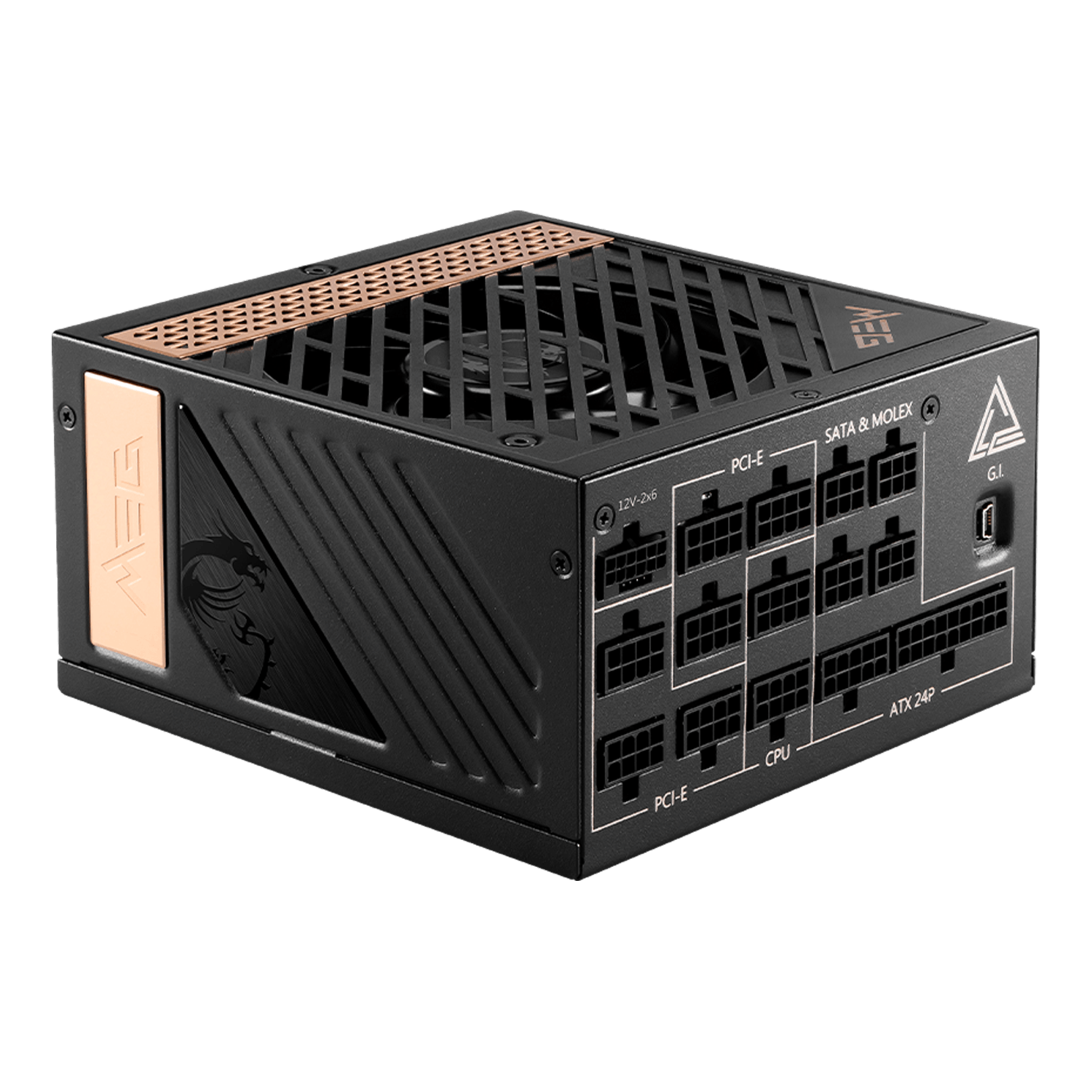

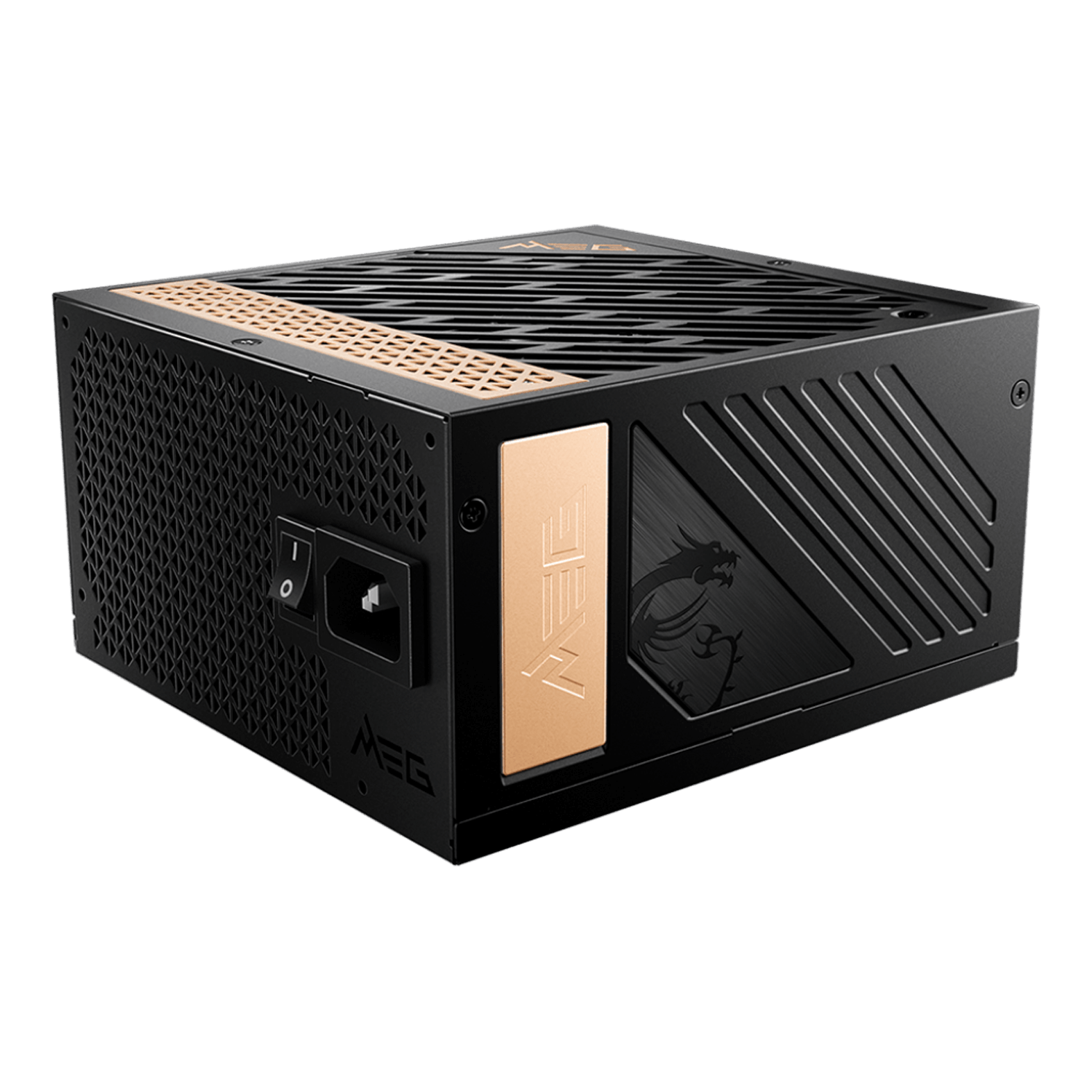

MEG Ai1300P PCIE5, 80 PLUS Platinum 1300W, Fully Modular, ATX Power Supply
- SKU: 15163324
- Manufacturer: MSI
- MPN: MEG Ai1300P PCIE5
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Price
$375.44
- Supports Nvidia® GeForce RTXTM 40 / 50 Series graphics cards
- ATX 3.1 fully supported
- PCIe 5.1 ready, with native 16-pin connector
- Software sync with MSI Center

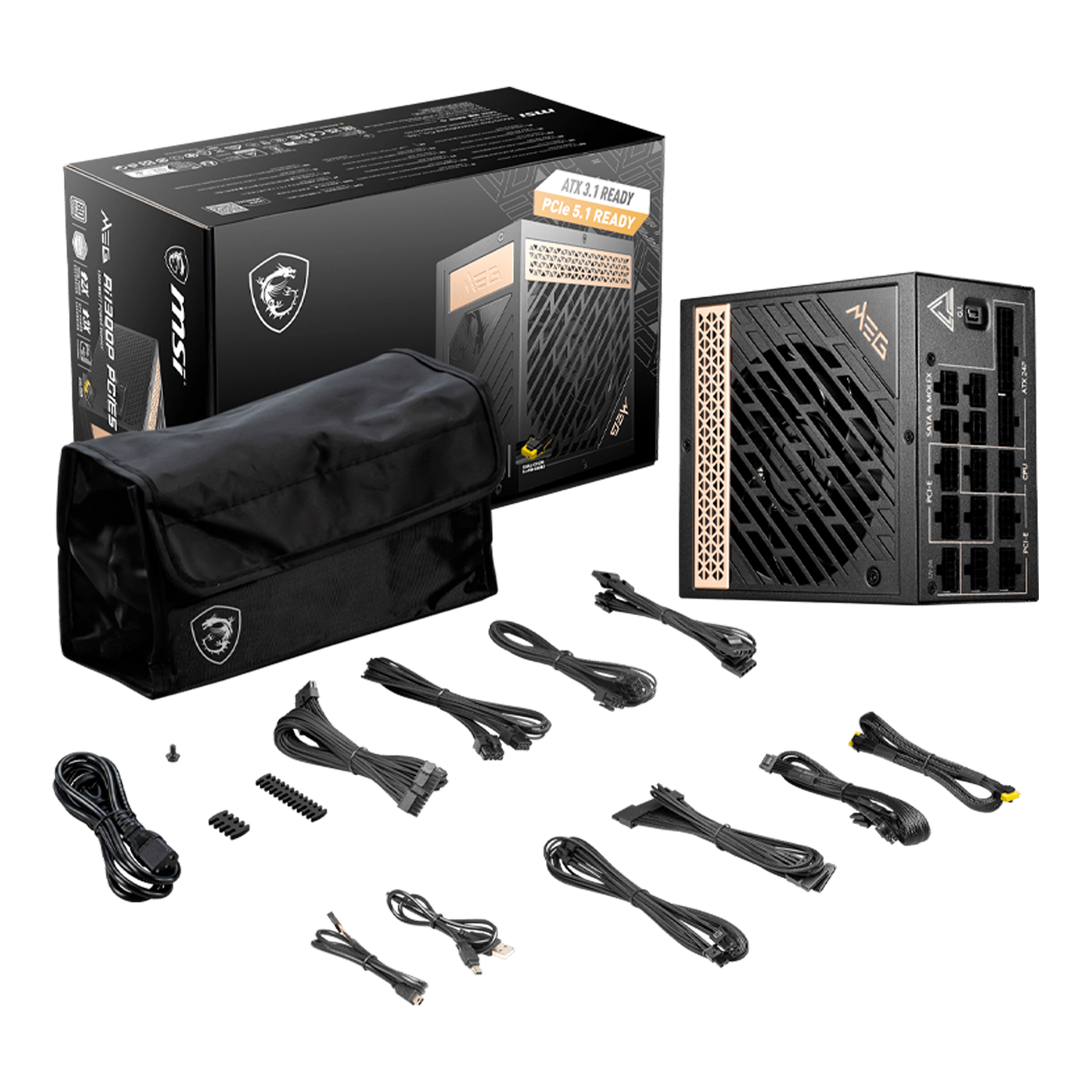

- Full modular design
- Sleeve cables
- 80 PLUS Platinum certified for high efficiency
- 100% all Japanese 105oC capacitor
- Active PFC design
- Industrial level protection with OVP,OCP,OPP,OTP,SCP,UVP
- LLC Full-Bridge Topology with DC-DC module design
| Efficiency Rating | 80 PLUS Platinum (up to 92%) |
| Modular | Yes (full modular) |

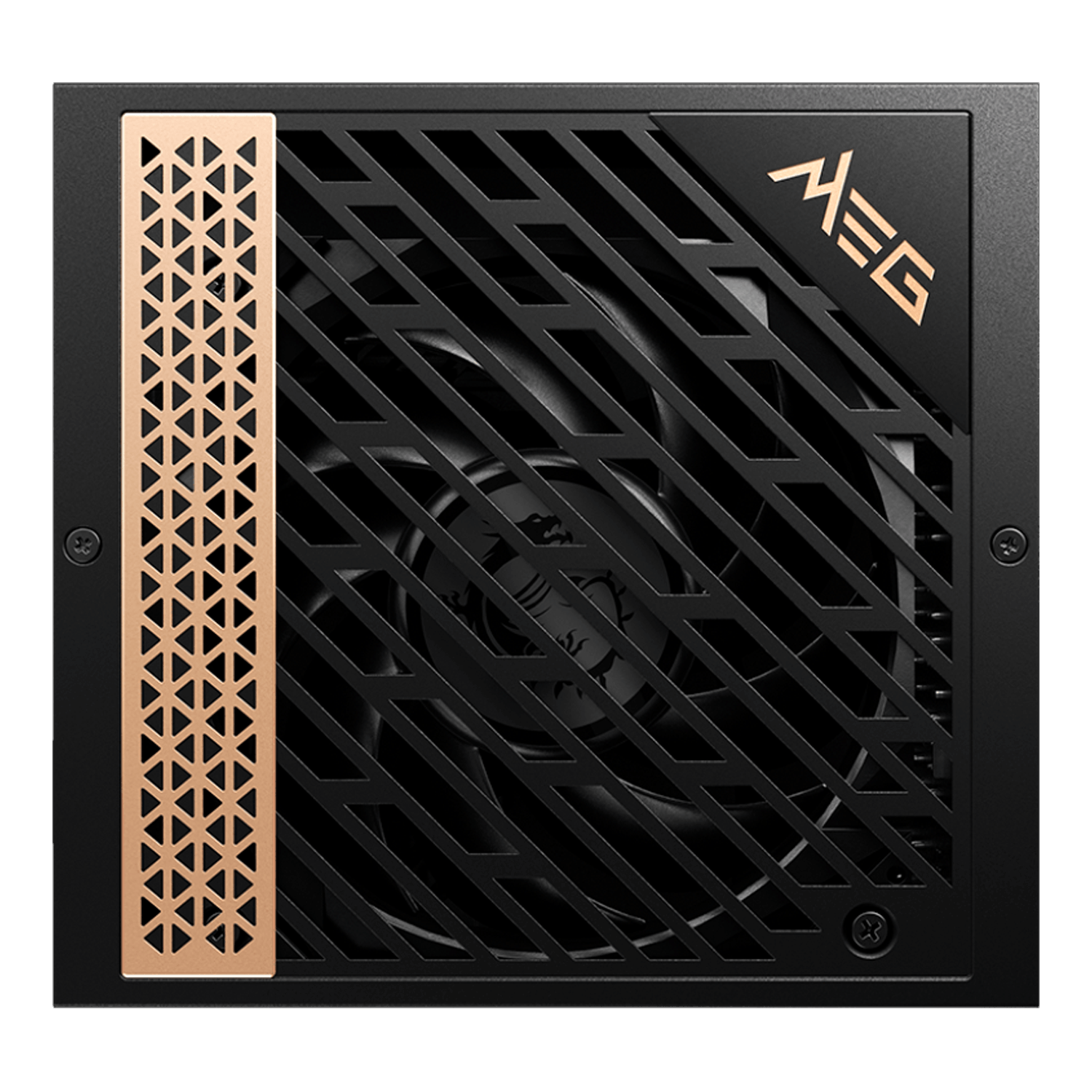

| Fan Size | 120 mm |
| Fan Bearing | Hydro Dynamic Bearing |
| Dimensions (DxWxH) | 160 x 150 x 86 mm |
| PFC Type | Active PFC |
| Input Voltage Range | 100-240~ |
| Power Watt | 1300W |
| Power Excursion | 2600W (*up to 200% of the PSU's rated power for 100μs) |
| Input Frequency Range | 50~60 Hz |
| Protection | OCP / OVP / OPP / OTP / SCP / UVP |

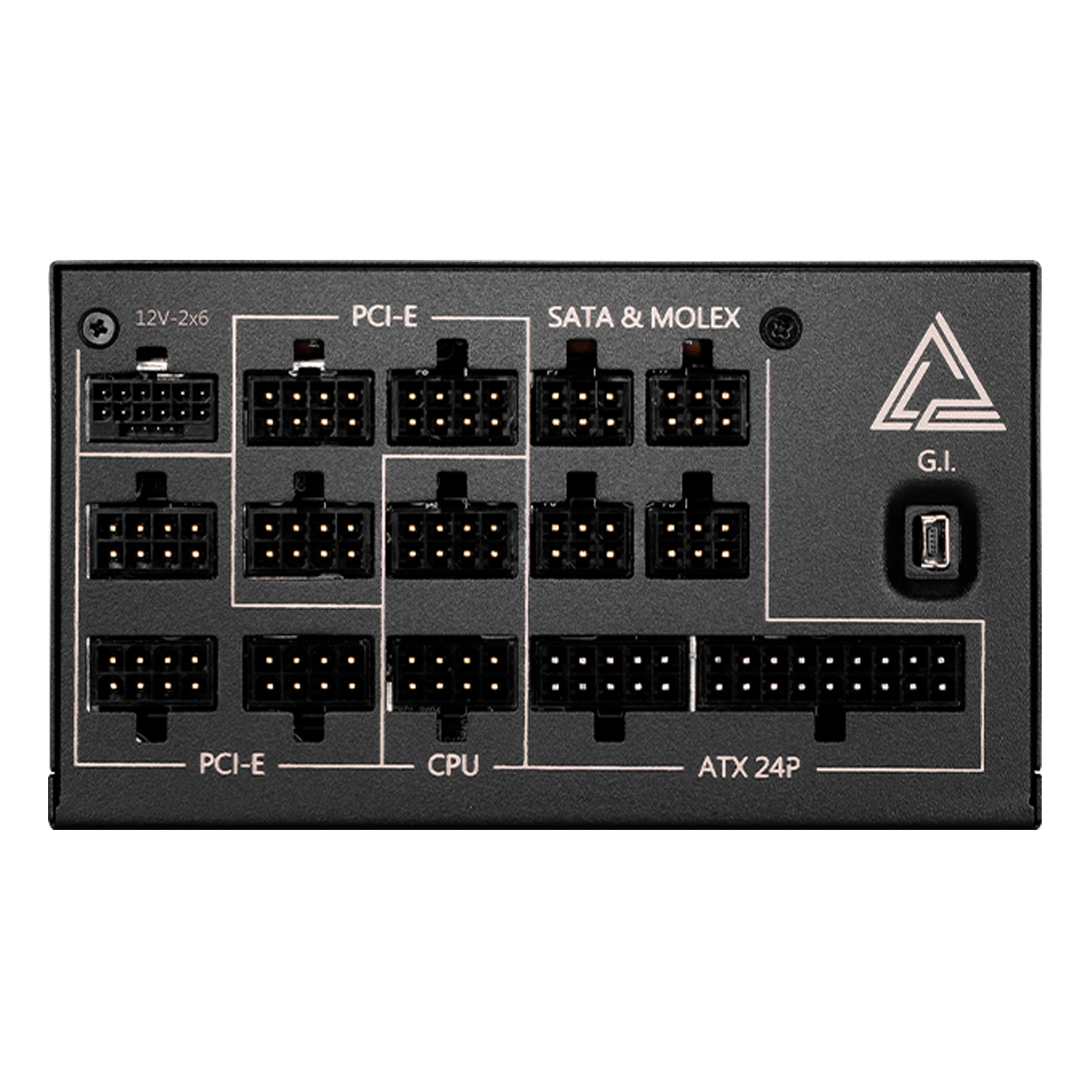

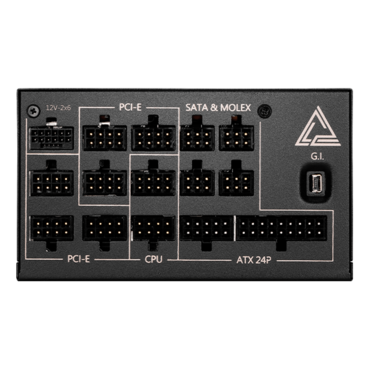

| ATX (24 pin) | 1 |
| EPS (8 pin) | 1 |
| EPS (4+4 pin) | 1 |
| PCI-E 5.0 (16 pin) | 1 |
| PCI-E (6+2 pin) | 8 |
| SATA (15 pin) | 16 |
| PERIPHERAL (4 pin) | 4 |
| FDD (4 pin) | 1 |
