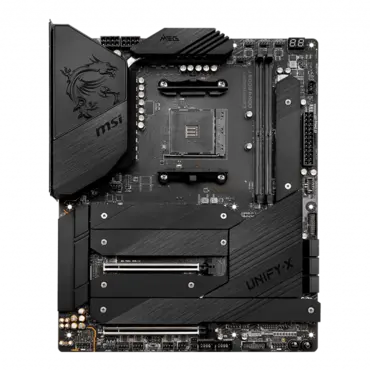

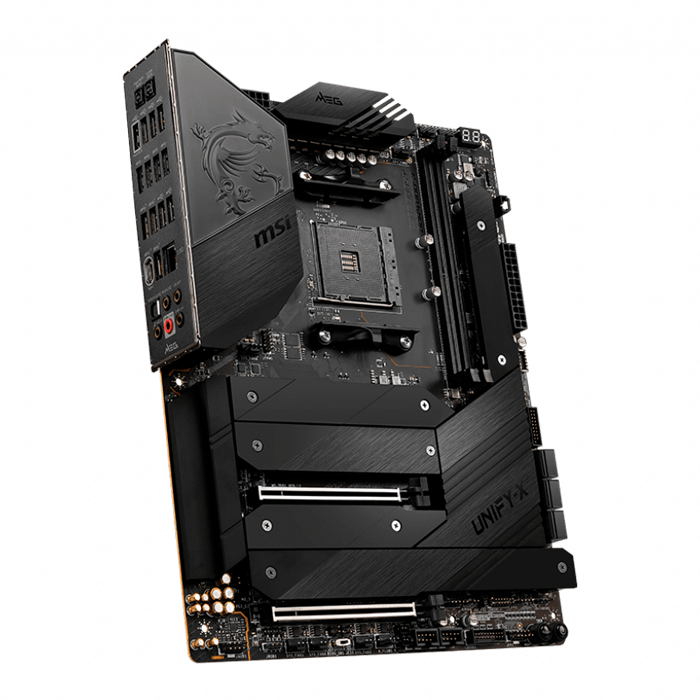

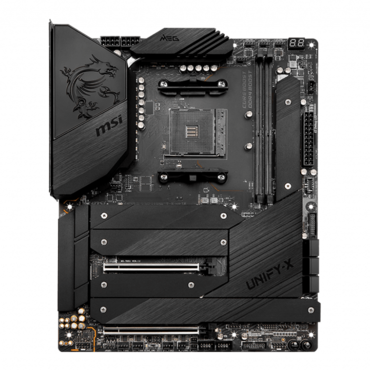

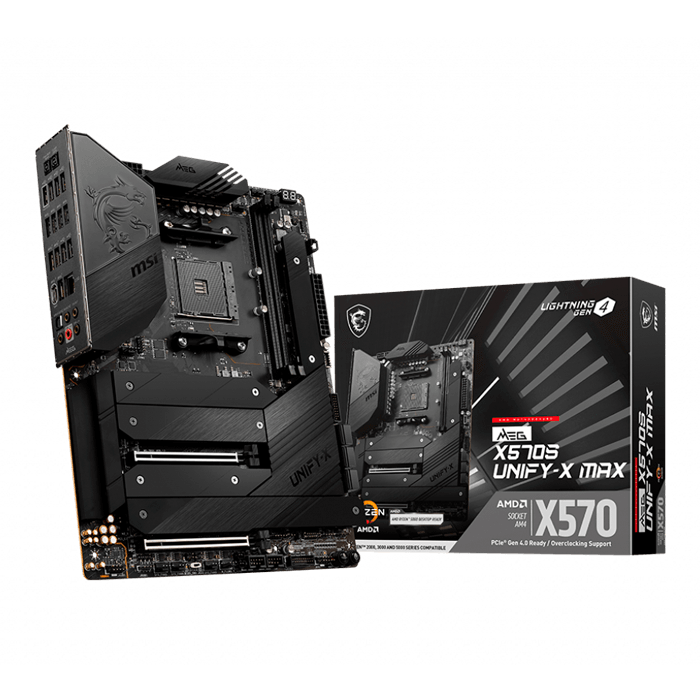

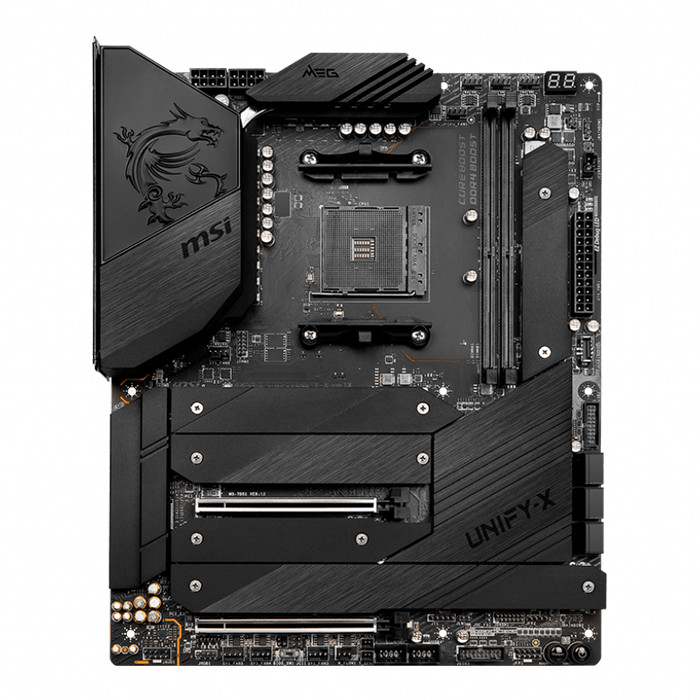

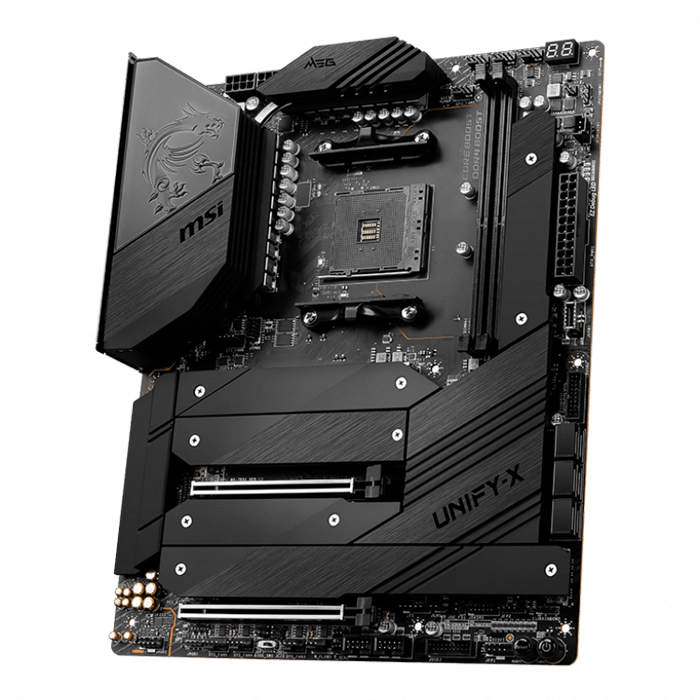

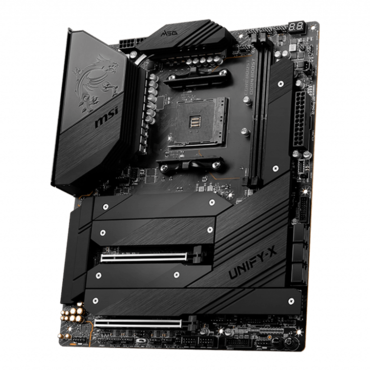

MEG X570S UNIFY-X MAX, AMD X570 Chipset, AM4, ATX Motherboard
MEG X570S UNIFY-X MAX, AMD X570 Chipset, AM4, ATX Motherboard
MEG X570S UNIFY-X MAX, AMD X570 Chipset, AM4, ATX Motherboard
MEG X570S UNIFY-X MAX, AMD X570 Chipset, AM4, ATX Motherboard
MEG X570S UNIFY-X MAX, AMD X570 Chipset, AM4, ATX Motherboard

MEG X570S UNIFY-X MAX, AMD X570 Chipset, AM4, ATX Motherboard

Quantity:
  • SKU: 14683934
  • Manufacturer: MSI
  • MPN: MEG X570S UNIFY-X MAX
  • Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$269.31
As low as $22.44/ Month*
Quantity:
MEG X570S UNIFY-X MAX, AMD X570 Chipset, AM4, ATX Motherboard

PREMIUM HARDWARE DESIGN

  • Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processors
  • Supports DDR4 Memory, Dual Channel 5300(OC) MHz+ (MAX 5800)
  • Sextuple M.2 Connectors: Onboard 6x M.2 connectors for the maximum storage performance with Lightning Gen 4 solution. The Industry leading design maximizes bandwidth to fully utilize high-end storage devices, provides multiple configurations for demanding gamers and power users.
  • Dedicated for Extreme OC: The top-notch R&D design and exclusive 2 DIMM solution for an even clearer memory signal to explore the boundaries of memory overclocking, deliver the world class memory performance.
  • Extreme Power Design: Direct 16+2+1 phases with 90A Smart Power Stage and dual CPU power connectors to unleash the maximum performance.
  • Premium Thermal Solution: Aluminum Cover, VRM Heat-pipe, 7W/mK thermal pads, M.2 Shield Frozr and MOSFET Baseplate to ensure the extreme performance with low temp.
  • 2.5G LAN Network Solution: Onboard 2.5G LAN with LAN manager delivering the best online gaming experience.
  • Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2 with M.2 double-side Shield Frozr, Lightning USB 20G.
  • Server Grade PCB with 2oz Thickened Copper: Provides higher performance and long-lasting system stability without any compromise.
CPU
  • Supports AMD Ryzen™ 5000 Series, 5000 G-Series 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processors
  • Supports Socket AM4
  1. Please refer www.msi.com for more information on compatible memory.

See supported memory
CHIPSET

AMD X570 Chipset
MEMORY
  • 2x DDR4 memory slots, support up to 64GB
  • Supports 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC 1
  • Max frequency by A-XMP OC mode:
    • For Ryzen™ 5000 G-Series & 4000 G-Series processors
      • 1DPC 1R Max speed up to 5300 MHz (support overclocking up to 5800 MHz)
      • 1DPC 2R Max speed up to 4266 MHz (support overclocking up to 4600 MHz)
    • For Ryzen™ 5000 Series & 3000 Series processors
      • 1DPC 1R Max speed up to 5300 MHz
      • 1DPC 2R Max speed up to 4266 MHz
  • Supports Dual-Channel mode
  • Supports non-ECC, un-buffered memory
  1. Please refer to www.msi.com for more information on compatible memory

See supported memory
EXPANSION SLOTS
  • Supports PCIe 4.0 / PCIe 3.0
    • PCIe 4.0 is available only on AMD Ryzen™ 5000 Series and 3000 Series desktop processors
  • 2x PCIe x16 slots (PCI_E1 from processor, PCI_E2 from X570 chipset) 1
    • Support x16/ x8 for AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series and 2000 Series desktop processors
    • Support x8/ x8 for AMD Ryzen™ 2000 G-Series and 3000 G-Series desktop processors
  1. PCI_E1~2, M2_3~6 and SATA5~6 share the same bandwidth. Please see the page 32 for more details.
MULTI-GPU
  • Supports AMD CrossFire™ Technology
LAN
  • 1x Realtek® RTL8125B 2.5 Gbps LAN controller
AUDIO

Realtek® ALC4080 Codec

  • 7.1-Channel High Definition Audio
  • Supports S/PDIF output
STORAGE
  • 6x SATA 6Gb/s ports (From X570 chipset) 1
  • 6x M.2 slots (Key M)
    • Supports PCIe 4.0 / PCIe 3.0
      • PCIe 4.0 is available only on AMD Ryzen™ 5000 Series and 3000 Series desktop processors
    • M2_1 (From processor)
      • Supports SATA 6Gb/s and PCIe M.2 2260/ 2280 storage devices
    • M2_2 (From X570 chipset)
      • Supports PCIe M.2 2280/ 22110 storage devices
    • M2_3 1 (From processor)
      • Supports PCIe M.2 2280/ 22110 storage devices
    • M2_4 1 (From processor)
      • Supports PCIe M.2 2260/ 2280 storage devices
    • M2_5 1 (From X570 chipset)
      • Supports PCIe M.2 2280/ 22110 storage devices
    • M2_6 1 (From X570 chipset)
      • Supports SATA 6Gb/s and PCIe M.2 2280/ 22110 storage devices
  1. PCI_E1~2, M2_3~6 and SATA5~6 share the same bandwidth. Please see the page 32 for more details.
RAID

AMD X570 Chipset

  • Supports RAID 0, RAID 1 and RAID 10
USB

AMD® Processor

  • 3x USB 3.2 Gen 2 10Gbps Type-A ports on the back panel
  • 1x USB 2.0 Type-A port on the back panel

AMD X570 Chipset

  • 1x USB 3.2 Gen 2 10Gbps Type-C internal connector
  • 4x USB 3.2 Gen 1 5Gbps ports available through internal connectors
  • 2x USB 2.0 Type-A ports on the back panell

Asmedia® 3241 Chipset

  • 1x USB 3.2 Gen 2x2 20Gbps Type-C port on the back panel

Asmedia® 1074 Chipset

  • 4x USB 3.2 Gen 1 5Gbps Type-A port on the back panel

Hub-GL850G

  • 7x USB 2.0 ports (3 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
INTERNAL CONNECTORS
  • 1x 24-pin ATX main power connector
  • 2x 8-pin ATX 12V power connector
  • 6x SATA 6Gb/s connectors
  • 6x M.2 slots (M-Key)
  • 1x USB 3.2 Gen 2 10Gbps Type-C port
  • 2x USB 3.2 Gen 1 5Gbps connector (supports additional 4 USB 3.2 Gen 1 5Gbps ports)
  • 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 1x 4-pin CPU fan connector
  • 1x 4-pin water-pump fan connector
  • 6x 4-pin system fan connectors
  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x Chassis Intrusion connector
  • 1x TPM module connector
  • 2x 2-pin Thermal Sensors connectors
  • 1x Water Flow Meter connector
  • 1x Tuning Controller connector

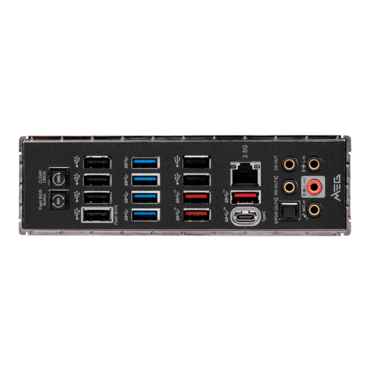

BACK PANEL PORTS
  1. Clear CMOS Button
  2. USB 2.0>
  3. USB 3.2 Gen 1 5Gbps (Type-A)
  4. USB 2.0
  5. 2.5G LAN
  6. HD Audio Connectors
  7. Flash BIOS Button
  8. USB 3.2 Gen 2 10Gbps (Type-A)
  9. USB 3.2 Gen 2 10Gbps (Type-A)
  10. USB 3.2 Gen 2x2 20Gbps (Type-C)
  11. Optical S/PDIF-Out

LED FEATURES
  • 1x 4-pin RGB LED connector
  • 2x 3-pin RAINBOW LED connectors
  • 1x 3-pin CORSAIR connector
  • 1x 2-Digit Debug Code LED
  • 4x EZ Debug LEDs
I/O CONTROLLER

NUVOTON NCT6687D Controller Chip
HARDWARE MONITOR
  • CPU/ System/ Chipset temperature detection
  • CPU/ System/ Pump fan speed detection
  • CPU/ System/ Pump fan speed control
FORM FACTOR
  • ATX Form Factor
  • 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
