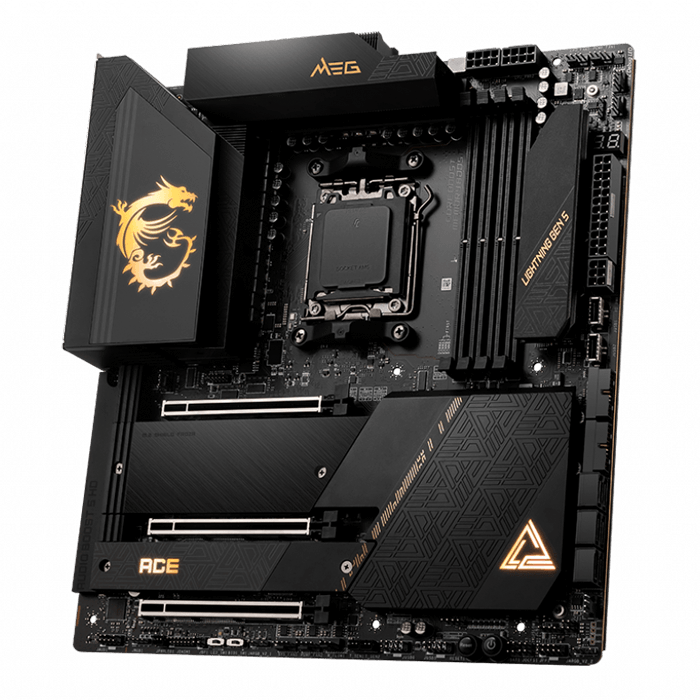

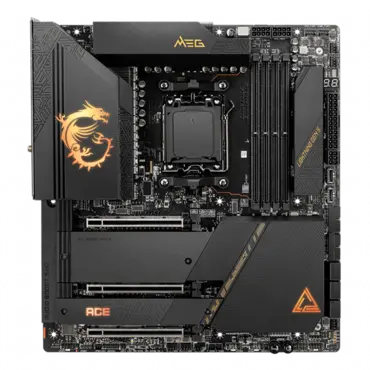

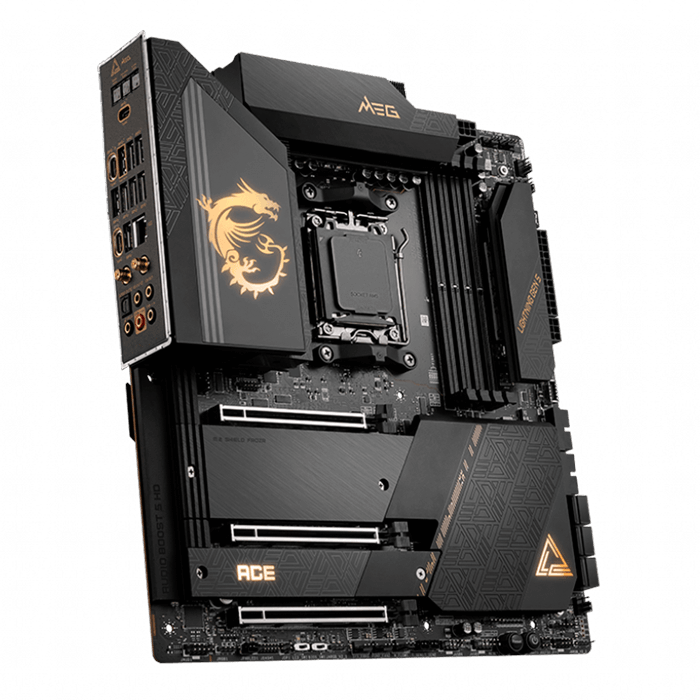

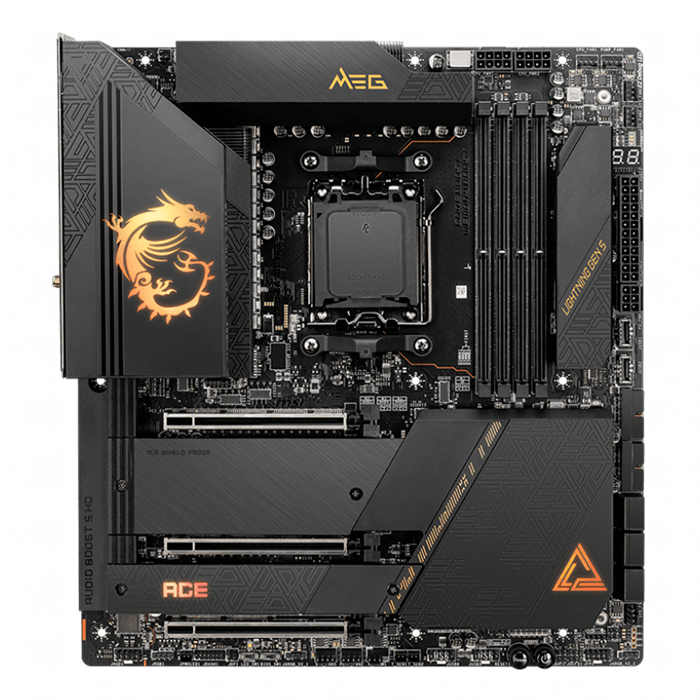

MEG X670E ACE, AMD X670 Chipset, AM5, E-ATX Motherboard
The MEG series seeks to transcend current gaming products, the flagship model designed to push the limits of what an extreme gaming series can be. Combining the strengths of our existing arsenal with new innovative technology; this results in significant improvements in operational and gaming efficiency. With the MEG series, take complete control of performance and personalization with the ultimate gaming series for enthusiasts who want it all.
- Supports AMD Ryzen™ 7000 Series Desktop Processors
- Supports DDR5 Memory
- Extreme Power Design: 22+2+1 phases power design with 90A Power Stage and dual CPU power connectors are ready to unleash the maximum performance.
- Maximum 6 x M.2 Connectors: Onboard and exclusive M.2 XPANDER-Z GEN5 DUAL PCI-Express card offer totally sextuple M.2 connectors for the maximum storage performance. The double-sided Shield Frozr design keeps M.2 SSDs safe while preventing throttling, making them run faster.
- Outstanding Cooling Solution: Stacked Fin Array, Direct Touch VRM Heat-pipe, MOSFET Baseplate, 7W/mK thermal pads, double-sided M.2 Shield Frozr and Frozr AI software ensure the extreme performance with low temperature.
- 10G Super LAN with latest Wi-Fi 6E solution: Onboard 10Gbps LAN with the latest Wi-Fi 6E solution which supports 6GHz spectrum delivering the best online gaming experience.
- Lightning Fast Game experience: PCIe 5.0 slots, Lightning Gen 5 x4 M.2, Front USB 3.2 Gen 2x2 20G with 60W USB Power Delivery.
- DIY Friendly Design: Patent Magnetic M.2 Shield Frozr, Screwless M.2 Shield Frozr, EZ M.2 Clips, Smart Button, Pre-installed I/O Shield, Steel Armor
- 8 Layer PCB with 2oz Thickened Copper: Provides higher performance and long-lasting system stability without any compromise.
- Audio Boost 5 HD: Ultimate audio solution with latest premium ALC4082 audio processor combining ESS audio DAC and amplifier deliver the breathtaking experience
MANUFACTURER PART # | MEG X670E ACE |
OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
CPU | Supports AMD Ryzen™ 7000 Series Desktop Processors |
CHIPSET | AMD® X670 Chipset |
CPU SOCKET | Socket AM5 |
FORM FACTOR | E-ATX |
MEMORY | 4 x DDR5, Maximum Memory Capacity 128GB |
LAN | Marvell® AQC113-B1-C 10Gbps LAN |
WIRELESS LAN |
AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax |
BLUETOOTH | Supports Bluetooth® 5.2 |
AUDIO |
Realtek® ALC4082 Codec + ESS ES9280AQ Combo DAC/HPA
|
MULTI-GPU | Supports AMD MULTI-GPU |
STORAGE |
4 x M.2 slot 6 x SATA 6G port |
ONBOARD GRAPHICS |
1 x Type-C Display port Supports DisplayPort 1.4 with HBR3, maximum resolution of 4K 120Hz |
RAID |
Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices |

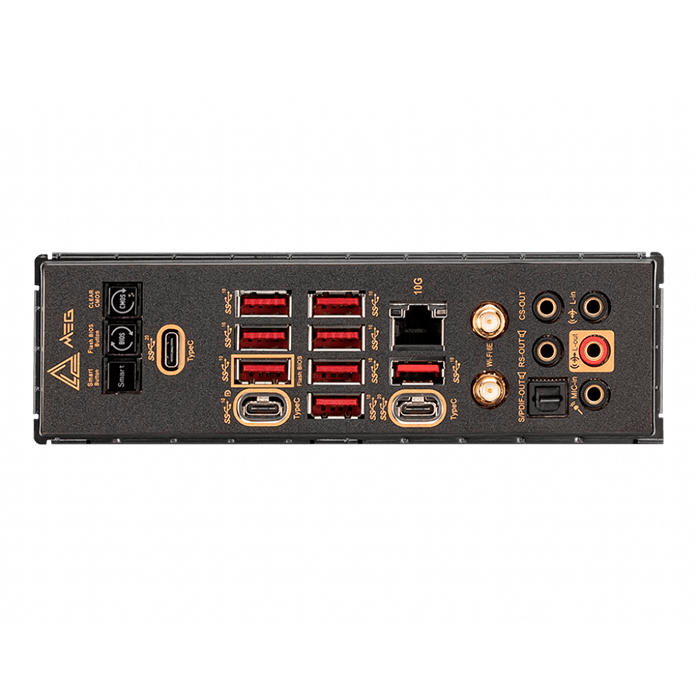

I/O (REAR) |
Clear CMOS Button Flash BIOS Button USB 3.2 Gen 2 10Gbps (Type-A) 10G Super LAN Wi-Fi / Bluetooth HD Audio Connectors Smart Button USB 3.2 Gen 2x2 20Gbps (Type-C) USB 3.2 Gen 2 10Gbps (Type-C Display port) USB 3.2 Gen 2x2 20Gbps (Type-C) Optical S/PDIF-Out |
EXPANSION SLOTS |
3x PCI-E x16 slot Supports x16/x0/x4, x8/x8/x4 PCI_E1 PCIe 5.0 supports up to x16 (From CPU) PCI_E2 PCIe 5.0 supports up to x8 (From CPU) PCI_E3 PCIe 5.0 supports up to x4 (From CPU) |
USB (FRONT) |
4 x USB 2.0 ports 4 x USB 3.2 Gen1 Type A ports 1 x USB 3.2 Gen2x2 Type C ports 1 x USB 3.2 Gen2 Type C ports |
USB (REAR) |
8 x USB 3.2 Gen2 Type A ports 1 x USB 3.2 Gen2 Type C ports 2 x USB 3.2 Gen2x2 Type C ports |
INTERNAL CONNECTORS |
1 x Power Connector(ATX_PWR) 2 x Power Connector(CPU_PWR) 1 x Front Type-C Quick Charge Connector(PD_PWR1) 1 x CPU Fan 2 x Pump Fan 5 x System Fan 2 x Front Panel (JFP) 1 x Chassis Intrusion (JCI) 1 x Water Flow connector 1 x Slow Mode Booting Jumper(JSLOW) 1 x Front Audio (JAUD) 2 x Thermal Sensor connectors(T_SEN) 1 x Tuning Controller connector(JDASH) 3 x Addressable V2 RGB LED connector (JARGB_V2) 1 x RGB LED connector(JRGB) 4 x USB 2.0 ports 4 x USB 3.2 Gen1 Type A ports 1 x USB 3.2 Gen2 Type C ports 1 x USB 3.2 Gen 2x2 Type-C ports V-check point |
DIMENSIONS | 10.90" x 12.00" |
MANUFACTURER WARRANTY | 3 Year |
