MEG X670E GODLIKE, AMD X670 Chipset, AM5, E-ATX Motherboard

Quantity:
  • SKU: 15128129
  • Manufacturer: MSI
  • MPN: X670EGODLIKE
  • Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$1,457.03
Quantity:

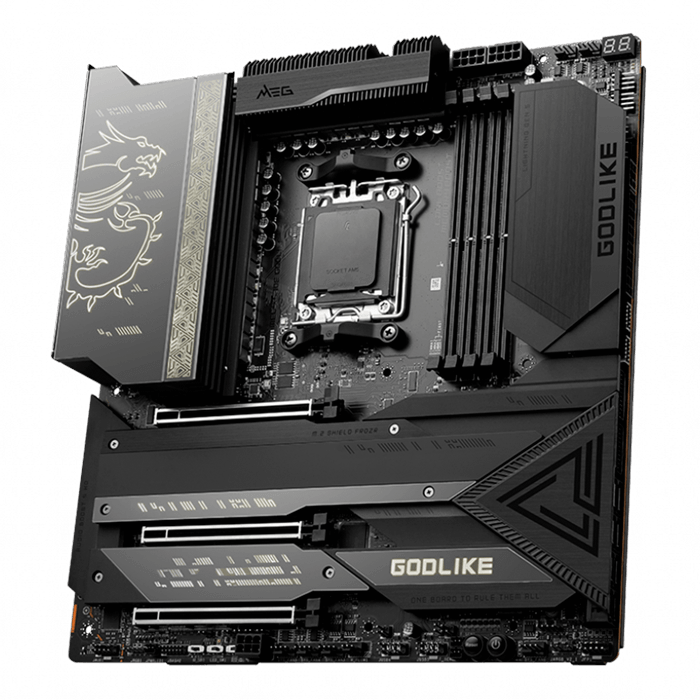

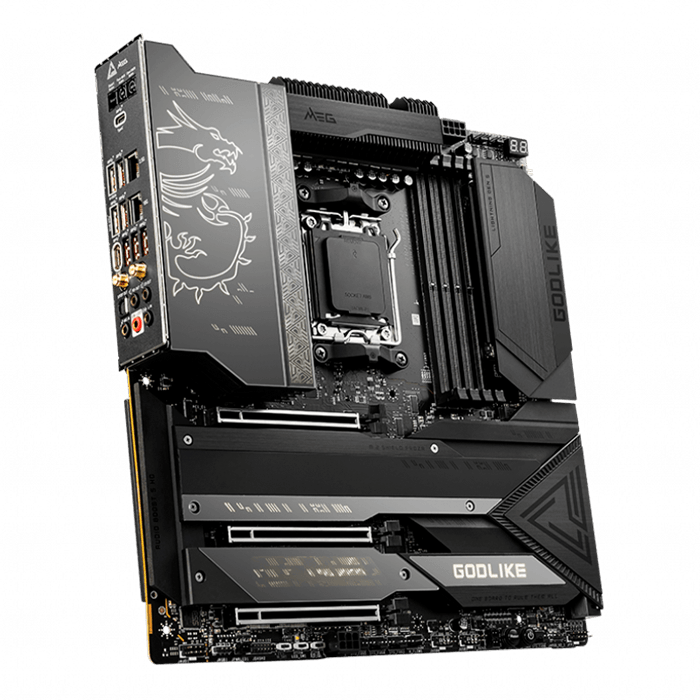

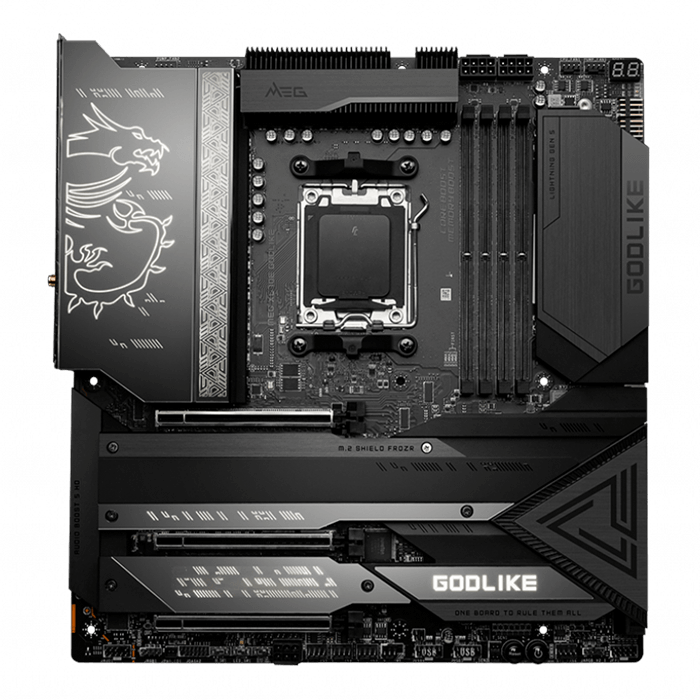

MEG X670E GODLIKE, AMD X670 Chipset, AM5, E-ATX Motherboard

The MEG X670E GODLIKE is designed with a black and heavy heatsink which comes with dark mirror and time carving design in pale gold illuminating that symbolizes the timeless form and function as well as representing perfection in its purest form. Featuring the latest technology, high-speed transmission, ultra-performance, and Industry's first M-Vision Dashboard, the MEG X670E GODLIKE is developed to unleash the extreme gaming potential of the AMD X670 chipset and is ready to rule the tournament once again.

  • Supports AMD Ryzen™ 7000 Series Desktop Processors
  • Supports DDR5 Memory
  • M-Vision Dashboard: The Touchable 4.5-inch full-color IPS LCD not only indicates the status of your gaming rig which combines hardware monitor and debug function, but also allows system operation and customization with touch control.
  • Extreme Power Design: 24+2+1 phases power design with 105A Smart Power Stage and dual CPU power connectors are ready to unleash the maximum performance.
  • Premium Thermal Module: Wavy fin design, Direct Touch Cross Heat-pipe, MOSFET Baseplate, 7W/mK thermal pads, Double-Sided M.2 Shield Frozr and Frozr AI software ensure the utmost performance with low temperature.
  • Maximum 6 x M.2 Connectors: Onboard and exclusive M.2 XPANDER-Z GEN5 DUAL PCI-Express card offer totally sextuple M.2 connectors for the maximum storage performance. The double-sided Shield Frozr design keeps M.2 SSDs safe while preventing throttling, making them run faster.
  • Latest Network Solution: Onboard 10G Super LAN, Intel 2.5G LAN and the latest Wi-Fi 6E solution deliver the best online experience without lag.
  • Lightning Fast Game experience: PCIe 5.0 slots, Lightning Gen 5 x4 M.2, Front USB 3.2 Gen 2x2 20G with 60W USB Power Delivery.
  • DIY Friendly Design: Patented Magnetic M.2 Shield Frozr, Screwless M.2 Shield Frozr, EZ M.2 Clips, Smart Button, Pre-installed I/O Shield, Steel Armor
  • 10 Layer PCB with 2oz Thickened Copper: Provides higher performance and long-lasting system stability without any compromise.
  • Audio Boost 5 HD: Ultimate audio solution with latest premium ALC4082 audio processor combining ESS audio DAC and amplifier deliver the breathtaking experience.
MANUFACTURER PART # MEG X670E GODLIKE
OPERATING SYSTEM Support for Windows® 11 64-bit, Windows® 10 64-bit
CPU Supports AMD Ryzen™ 7000 Series Desktop Processors
CHIPSET AMD® X670 Chipset
CPU SOCKET Socket AM5
FORM FACTOR E-ATX
MEMORY 4x DDR5, Maximum Memory Capacity 128GB
LAN Marvell® AQC113-B1-C 10Gbps LAN
Intel® I225V 2.5Gbps LAN
WIRELESS LAN AMD Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX
Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
Supports 802.11 a/ b/ g/ n/ ac/ ax
BLUETOOTH Supports Bluetooth® 5.2
AUDIO Realtek® ALC4082 Codec + ESS ES9280AQ Combo DAC/HPA
  • 7.1-Channel High Definition Audio
  • Supports S/PDIF output
  • Supports up to 32-Bit/384 kHz playback on front panel
MULTI-GPU Supports NVIDIA® SLI™ Technology
Supports AMD MULTI-GPU
STORAGE 4 x M.2 slot
8 x SATA 6G port
RAID Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices
I/O (REAR) Clear CMOS Button
Flash BIOS Button
2.5G LAN
10G Super LAN
USB 3.2 Gen 2 10Gbps (Type-A)
Wi-Fi / Bluetooth
HD Audio Connectors
Smart Button
USB 3.2 Gen 2x2 20Gbps (Type-C)
USB 3.2 Gen 2 10Gbps (Type-A)
USB 3.2 Gen 2 10Gbps (Type-A)
USB 3.2 Gen 2x2 20Gbps (Type-C)
Optical S/PDIF-Out
EXPANSION SLOTS 3x PCI-E x16 slot
Supports x16/x0/x4, x8/x8/x4
PCI_E1 PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 PCIe 5.0 supports up to x8 (From CPU)
PCI_E3 PCIe 5.0 supports up to x4 (From CPU)
USB (FRONT) 4 x USB 2.0 ports
4 x USB 3.2 Gen1 Type A ports
1 x USB 3.2 Gen2x2 Type C ports
1 x USB 3.2 Gen2 Type C ports
USB (REAR) 7 x USB 3.2 Gen2 Type A ports
2 x USB 3.2 Gen2x2 Type C ports
INTERNAL CONNECTORS 1 x Power Connector(ATX_PWR)
2 x Power Connector(CPU_PWR)
1 x Power Connector(PCIE_PWR 4pin or 6 pin)
1 x Front Type-C Quick Charge Connector(PD_PWR1)
1 x CPU Fan
2 x Pump Fan
6 x System Fan
2 x Front Panel (JFP)
1 x Chassis Intrusion (JCI)
1 x Water Flow connector
1 x Front Audio (JAUD)
2 x Thermal Sensor connectors(T_SEN)
1 x Tuning Controller connector(JDASH)
3 x Addressable V2 RGB LED connector (JARGB_V2)
1 x RGB LED connector(JRGB)
4 x USB 2.0 ports
4 x USB 3.2 Gen1 Type A ports
1 x USB 3.2 Gen2 Type C ports
V-check point
DIMENSIONS 11.33" x 12.00"
MANUFACTURER WARRANTY 3 Year
