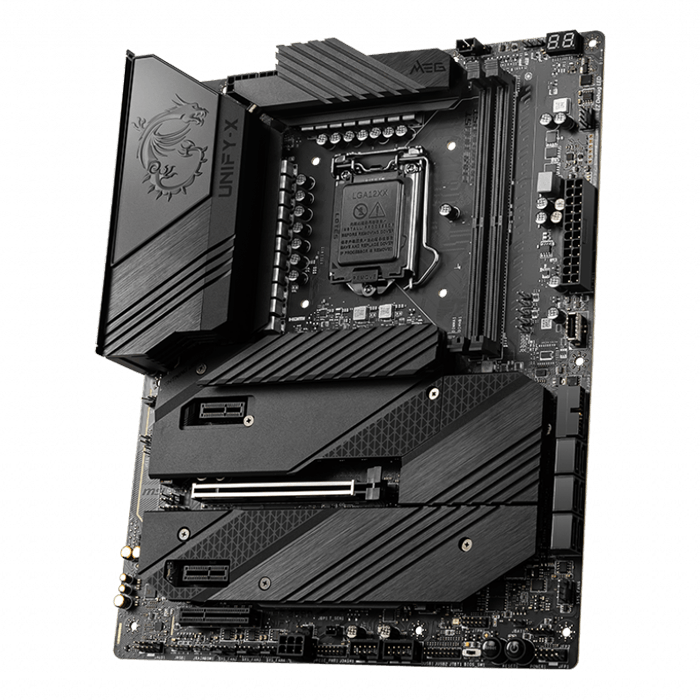

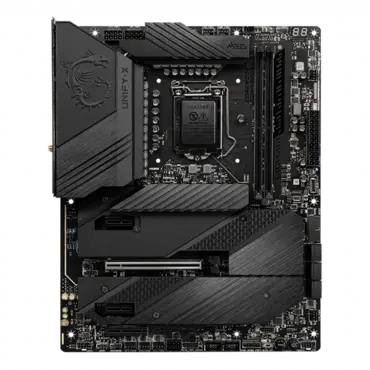

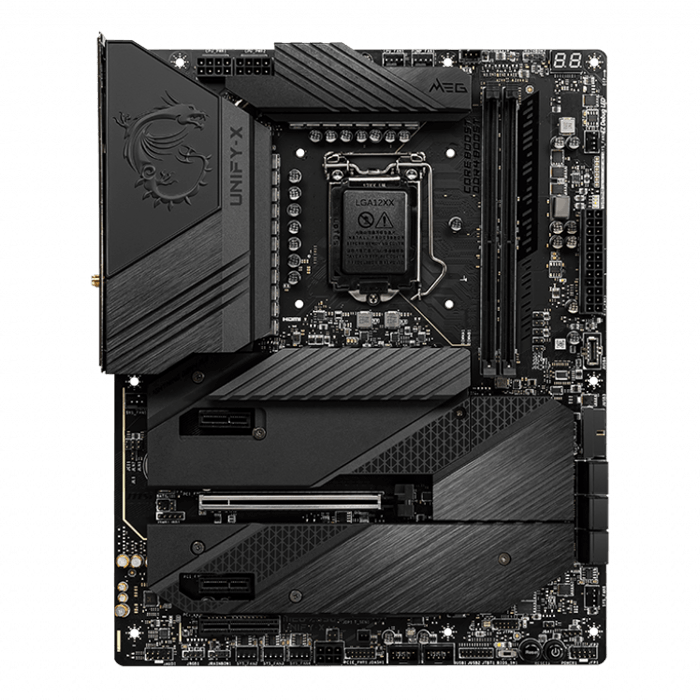

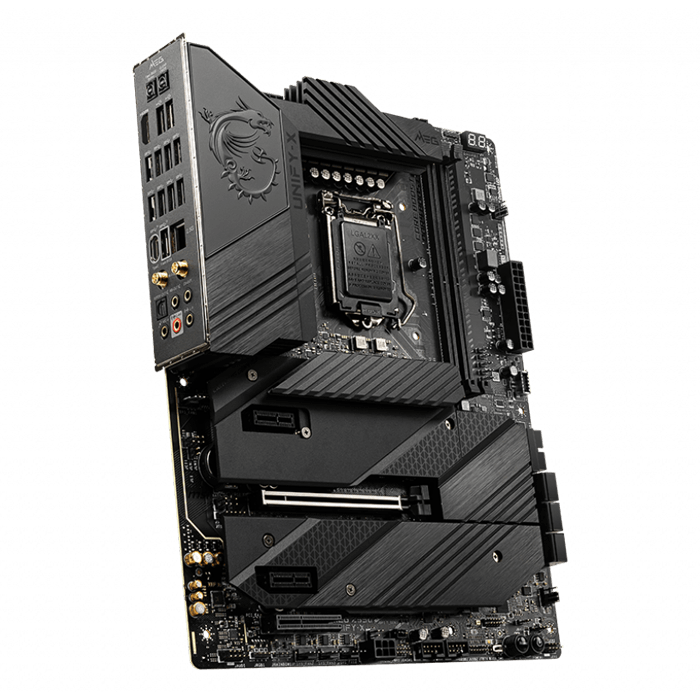

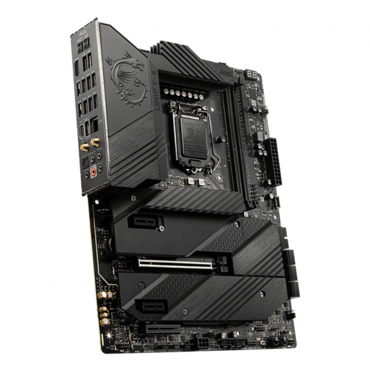

MEG Z590 UNIFY-X, Intel® Z590 Chipset, LGA 1200, HDMI, ATX Motherboard

• Supports 10th Gen Intel^® Core™ Processors, 11th Gen Intel^® Core™ Processors, Pentium^® Gold and Celeron^® Processors ¹
• Processor socket LGA1200

1. Please go to intel.com for compatibility information.

Intel^® Z590 Chipset

• 2x DDR4 memory slots, support up to 64GB¹
• Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel^® CPU (by JEDEC & POR)^® CPU (by JEDEC & POR)¹
• Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel^® CPU (by JEDEC & POR)¹
• Max overclocking frequency:
  • 1DPC 1R Max speed up to 5600 MHz
  • 1DPC 2R Max speed up to 4800+ MHz
• Supports Dual-Channel mode
• Supports non-ECC, un-buffered memory
• Supports Intel^® Extreme Memory Profile (XMP)

1. Please refer to www.msi.com for more information on compatible memory

• 1x PCIe x16 slot (PCI_E2, from CPU)
  • Supports up to PCIe 4.0 x16 with11th Gen CPU¹
  • Supports up to PCIe 3.0 x16 with10th Gen CPU¹
• 1x PCIe 3.0 x4 slot (PCI_E4, from Z590 chipset)²
• 2x PCIe 3.0 x1 slots (from Z590 chipset)

1. PCI_E2 will only support x8 speed, when M2_2 and M2_3 are from CPU by BIOS selection.
2. PCI_E4 and M2_4 share the same bandwidth, if you want to use both of them simultaneously, the PCI_E4 will only support x1 speed and the M2_4 will only support x2 speed. But if you want to install and enable the graphics card in PCI_E4 slot, the M2_4 slot should be empty.

• Supports 2-Way AMD^® CrossFire™ Technology

• 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz¹²

1. Available for the processor with integrated graphics.
2. Graphics specifications may vary depending on the CPU installed.

• 6x SATA 6Gb/s ports (from Z590 chipset)
• 4x M.2 slots (Key M)
  • M2_1 (from CPU)
    • Available only on 11th Gen Intel^® CPU
    • Supports up to PCIe 4.0 x4
    • Supports 2242/ 2260/ 2280/ 22110 storage devices
  • M2_2¹, M2_3² slots
    • Support up to PCIe 3.0 x4 and SATA 6Gb/s (from Z590 chipset, default)³
    • Support up to PCIe 4.0 x4 (from CPU, by BIOS selection)⁴
    • M2_2 supports 2242/ 2260/ 2280 storage devices
    • M2_3 supports 2242/ 2260/ 2280/ 22110 storage devices
  • M2_4 slot (from Z590 chipset) ³⁵
    • Supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices
• Supports Intel^® Smart Response Technology for Intel Core™ processors

1. SATA2 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
2. SATA5 & SATA6 will be unavailable when installing M.2 SATA/ PCIe SSD in the M2_3 slot.
3. Intel^® Optane™ Memory Ready. Before using Intel^® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
4. PCIe 4.0 specification is available only on 11th Gen Intel^® CPU.
5. PCI_E4 and M2_4 share the same bandwidth, if you want to use both of them simultaneously, the PCI_E4 will only support x1 speed and the M2_4 will only support x2 speed. But if you want to install and enable the graphics card in PCI_E4 slot, the M2_4 slot should be empty.

• Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
• Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

• Intel^® Z590 Chipset
  • 1x USB 3.2 Gen 2x2 20Gbps Type-C port on the back panel
  • 2x USB 3.2 Gen 2 10Gbps ports (1 Type-A port on the back panel and 1 Type-C internal connector)
  • 10x USB 3.2 Gen 1 5Gbps ports (8 Type-A ports on the back panel, 2 ports are available through internal USB 3.2 Gen 1 connector)
  • 2x USB 2.0 ports on the back panel
• Hub-GL850G
  • 4x USB 2.0 ports through internal USB 2.0 connector

Realtek^® ALC4080 Codec

• 7.1-Channel High Definition Audio
• Supports S/PDIF output

• 1x Intel^® I225-V 2.5Gbps LAN controller

Intel^® WiFi 6E AX210

• The Wireless module is pre-installed in the M.2 (Key-E) slot
• Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz¹ (160MHz) up to 2.4Gbps
• Supports 802.11 a/ b/ g/ n/ ac/ ax
• Supports Bluetooth^® 5.2², FIPS, FISMA

1. Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in WIN10 21H1.
2. Bluetooth 5.2 will be ready in WIN10 21H1.

• 1x 24-pin ATX main power connector
• 2x 8-pin ATX 12V power connectors
• 1x 6-pin ATX PCIE power connector
• 6x SATA 6Gb/s connectors
• 4x M.2 slots (M-Key)
• 1x USB 3.2 Gen 2 10Gbps Type-C port
• 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
• 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
• 1x 4-pin CPU fan connector
• 1x 4-pin water-pump fan connector
• 6x 4-pin system fan connectors
• 1x Front panel audio connector
• 2x System panel connectors
• 1x Chassis Intrusion connector
• 1x 2-pin Thermal Sensors connector
• 1xTPM module connector
• 1x Tuning Controller connector
• 1x TBT connector (Supports RTD3)

• 1x 2-Digit Debug Code LED
• 4x EZ Debug LED
• 1x 4-pin RGB LED connector
• 2x 3-pin RAINBOW LED connectors
• 1x 3-pin JCORSAIR LED connector

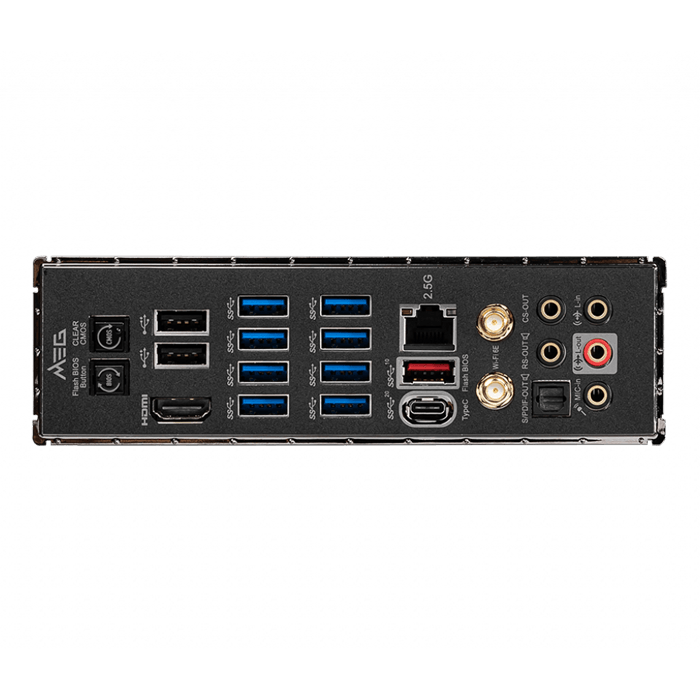

1. Clear CMOS Button
2. USB 2.0
3. USB 3.2 Gen 1 5Gbps (Type-A)
4. USB 3.2 Gen 1 5Gbps (Type-A)
5. 2.5G LAN
6. Wi-Fi / Bluetooth
7. HD Audio Connectors
8. Flash BIOS Button
9. HDMI
10. USB 3.2 Gen 2 10Gbps (Type-A)
11. USB 3.2 Gen 2x2 20Gbps (Type-C)
12. Optical S/PDIF-Out

• 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
• ATX Form Factor

9 mounting holes

• Support for Windows^® 10 64-bit

1. MSI^® does not guarantee the risks or damages caused by changing the cover.
2. These pictures are for reference only and may vary without notice.
