MEG Z790 GODLIKE, Intel® Z790 Chipset, LGA 1700, 2 x Thunderbolt™ 4, E-ATX Motherboard
Quantity:
- SKU: 15278588
- Manufacturer: MSI
- MPN: MEG Z790 GODLIKE
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$1,266.32

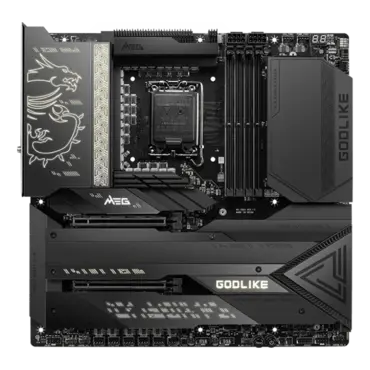

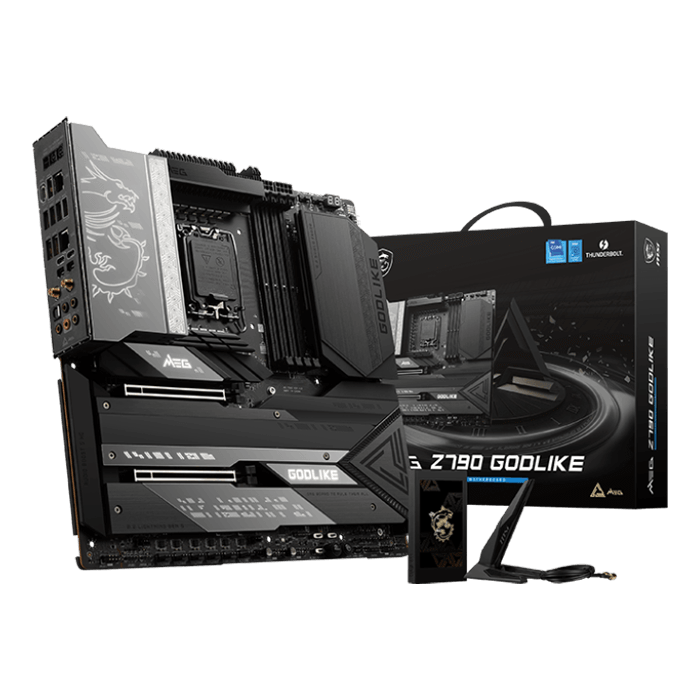

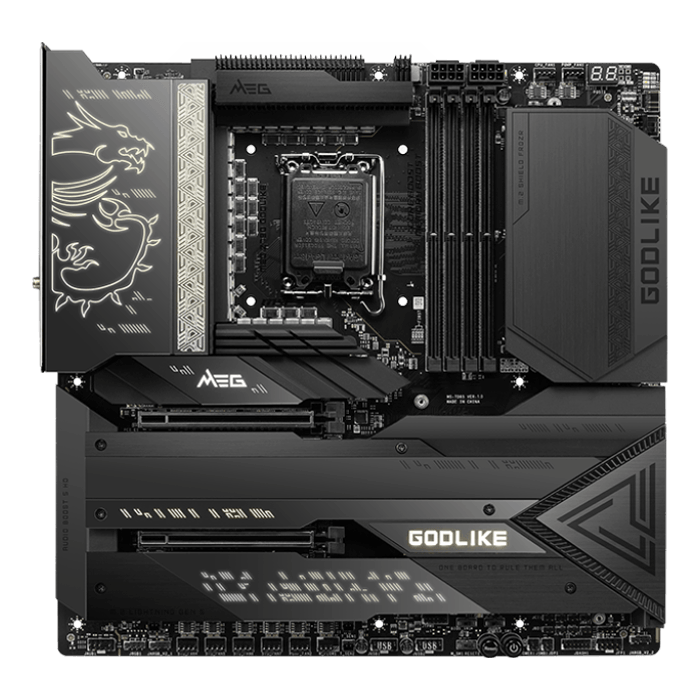

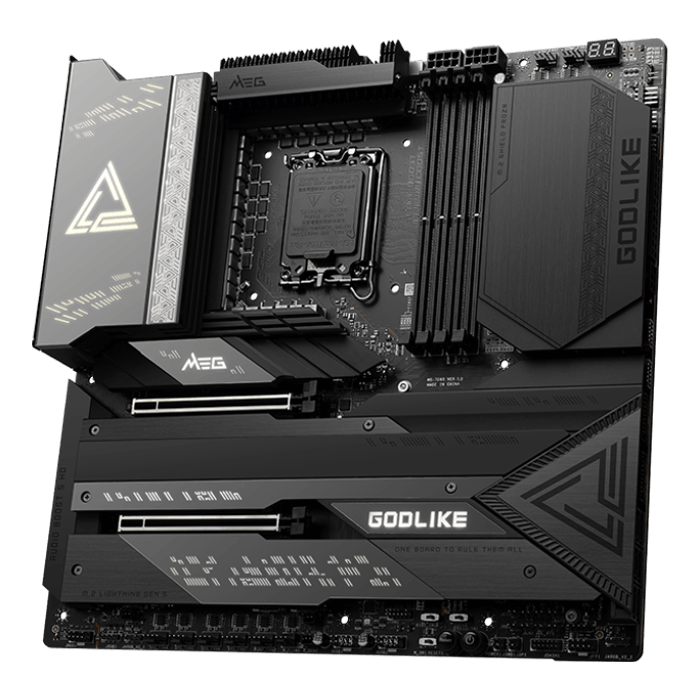

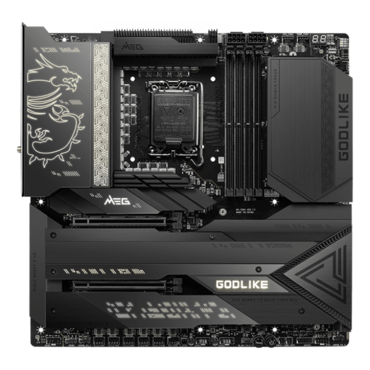

MEG Z790 GODLIKE, Intel® Z790 Chipset, LGA 1700, 2 x Thunderbolt™ 4, E-ATX Motherboard
Designed with a black and heavy heatsink which comes with dark mirror and time carving design in pale gold illuminating that symbolizes the timeless form and function as well as representing perfection in its purest form. Featuring the latest technology, high-speed transmission, ultra-performance, and industry's first M-Vision Dashboard, the MEG Z790 GODLIKE is developed to unleash the extreme gaming potential of the latest 13th Gen Intel® Core processor and is ready to rule the tournament once again.
- Supports 12th/ 13th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
- Supports DDR5 Memory, Dual Channel DDR5 7800+MHz (OC)
- M-Vision Dashboard: The touchable 4.5-inch full-color IPS LCD not only indicates the status of your gaming rig which combines hardware monitor and debug function, but also allows system operation and customization with touch control.
- Dual Thunderbolt 4 ports: Thunderbolt USB-C at true 40 Gb/s speeds, 8K display support, Daisy-Chaining and Multi-Port Accessory Architecture provide reliable connectivity and better user experience.
- Extreme Power Design: 26+2+phases power design with 105A Smart Power Stage and dual CPU power connectors are ready to unleash the maximum performance.
- Premium Thermal Module: Wavy fin design, Direct Touch Cross Heat-pipe, Aluminum Cover, 7W/mK thermal pads, Double-Sided M.2 Shield Frozr and Frozr AI software ensure the utmost performance with low temperature.
- Maximum 7 x M.2 Connectors: Onboard septuple M.2 connectors including one PCIe 5.0 solution for the maximum storage performance. The double-sided Shield Frozr design keeps M.2 SSDs safe while preventing throttling, making them run faster.
- Latest Network Solution: Onboard 10G Super LAN, Intel 2.5G LAN and the latest Wi-Fi 6E solution deliver the best online experience without lag.
- Lightning Fast Game experience: PCIe 5.0 slots, Lightning Gen 5 x4 M.2, Dual Front USB 3.2 Gen 2x2 20G with one 60W USB Power Delivery.
- DIY Friendly Design: Patented Magnetic & Screwless M.2 Shield Frozr, EZ M.2 Clips, Smart Button, Pre-installed I/O Shield, Steel Armor, Metal Backplate
- 8 Layer PCB with 2oz Thickened Copper: Provides higher performance and long-lasting system stability without any compromise.
- Audio Boost 5 HD: Ultimate audio solution with the latest premium ALC4082 audio processor combining ESS audio DAC and amplifier deliver the breathtaking experience.
| Chipset | INTEL Z790 |
| CPU | Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors LGA 1700 |
| Memory | 4x DDR5 UDIMM, Maximum Memory Capacity 128GB Memory Support 7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(JEDEC)/5400(JEDEC)/5200(JEDEC)/5000(JEDEC)/4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7800+ MHz • 1DPC 2R Max speed up to 6600+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Intel ® XMP3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
| Onboard Thunderbolt | Thunderbolt chip JHL8540 2x Thunderbolt4 (USB-C) ports Q’ty Supports up to 40Gbps transfer rate with Thunderbolt devices Supports up to 20Gbps transfer rate with USB4 devices Supports up to 10Gbps transfer rate with USB 3.2 devices Supports up to 5V/3A,15W power charging Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices Supports up to 8K display (need to connect the DisplayPort of the discrete graphics card to the Mini DisplayPort Input port on the back panel) |
| Slot | 2x PCI-E x16 slot (Qty) PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU) |
| Multi-GPU | Supports NVIDIA® SLI™ Technology AMD MULTI-GPU Support |
| Storage | 7x M.2 (Qty) M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices M.2_4 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices M.2_5 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260 devices M.2_6 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_7 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 6x SATA 6G port *PCI_E2 slot will be unavailable when installing M.2 SSD in the M2_4 slot. **SATA5~8 will be unavailable when installing M.2 PCIe SSD in the M2_5 slot. ***SATA5~8 will be unavailable when installing M.2 SATA SSD in the M2_5 slot. |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices *SATA_A1_A2 do not support RAID function. |
| USB | 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Front) 7x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Rear) 2x USB 3.2 Gen2x2 Type C (Front) *To achieve 60W PD fast charging for JUSB6, the PD_PWR1 connector needs to be connected to the power supply unit. **JUSB6 doesn’t support USB 2.0 and older USB devices. |
| LAN | Marvell ® AQC113CS-B1-C 10Gbps LAN Intel ® 2.5Gbps LAN |
| WIRELESS LAN & BLUETOOTH | Intel ® Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth ® 5.3, FIPS, FISMA *Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 21H1 and Windows 11. " |
| Audio | Realtek ® ALC4082 Codec + ESS ES9280AQ Combo DAC/HPA 7.1-Channel USB High Performance Audio Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on front panel |
| Internal IO | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Front Type-C Quick Charge Connector(PD_PWR1) 1x CPU Fan 2x Pump Fan 7x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Water Flow connector 1x Slow Mode Booting Jumper(JSLOW) 1x Front Audio (JAUD) 2x Thermal Sensor connectors(T_SEN) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 3.2 Gen1 Type A ports 2x USB 3.2 Gen 2x2 Type C ports V-check point |
| LED FEATURE | 1x EZ LED Control switch 4x EZ Debug LED 1x 2-Digit Debug Code LED |

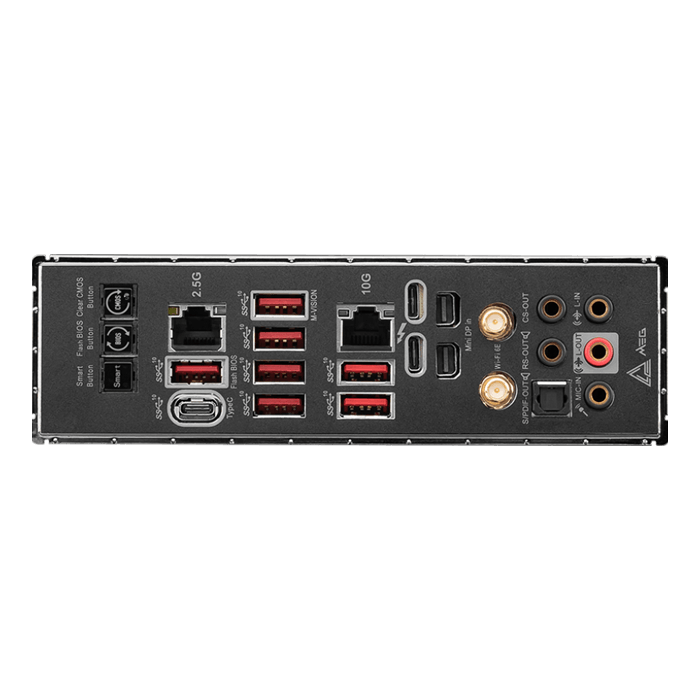

| BACK PANEL PORTS | 1x Clear CMOS Button 1x Flash BIOS Button 1x 2.5G LAN 1x 10G Super LAN 2x Thunderbolt 4 40Gbps (Type-C) 2x Wi-Fi / Bluetooth 5x Audio Connectors 1x Smart Button 1x USB 3.2 Gen 2 10Gbps (Type-C) 7x USB 3.2 Gen 2 10Gbps (Type-A) 2x Mini DisplayPort Input (for Thunderbolt passthrough) 1x Optical S/PDIF-Out |
| OPERATING SYSTEM | Support for Windows ® 11 64-bit, Windows ® 10 64-bit |
| PCB Info | E-ATX 304.8mmx310mm |
