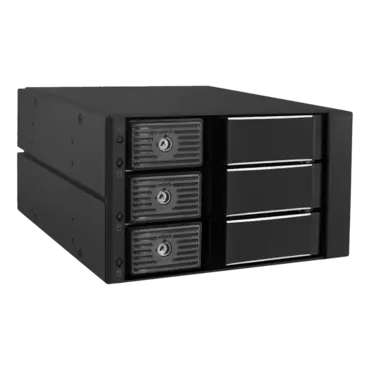

MKS-335TL, Trayless 2x 5.25" to 3x 3.5", SATA 6Gb/s, HDD, Black Hot-swap Rack

  • SKU: 11642889
  • Manufacturer: KINGWIN
  • MPN: MKS-335TL
  • Availability: LOW STOCK
Starting At
MKS-335TL, Trayless 2x 5.25" to 3x 3.5", SATA 6Gb/s, HDD, Black Hot-swap Rack

KINGWIN MKS-335TL. The MKS-335TL is a case-less, 3-bay hard drive rack that is in a league of its own. Its installation is similar to that of a CD-Rom with the power and data connections being supported by a SATA 7 pin and 15 pin Serial ATA power connectors. When these connections are done well at the rear of the rack, it becomes fully functional. Its capability to quickly be ready for work makes it worthy buy.

  • Model: MKS-335TL
  • Triangular key lock
  • Space for 3 H.D.D. w/ 2 bay slots
  • Aluminum bezel
  • Power & HDD LED activity
    • Power On : Blue
    • HDD Activity : Purple blinking
  • SATA 7 pin power connector
  • 15 pin Serial ATA power connector
  • Cooling fan (70 x 70 x 15 mm)
  • Fanspeed control switch
  • HDD LED function on/off switch
  • Support SATA III (6 Gbps)
  • For standard 1” height, 3.5” SATA H.D.D.
  • No inner tray required
  • Easy transport and secure valuable data
  • Easy open latch door
  • Supports hot swap
  • Tool-less design for H.D.D. installation
  • Key lock system for added security
  • Support RAID
Model: MKS-335TL
Suitable hard disk type: 1.0″ or 1.6″ height, and 3.5″ HDD
Interface: Serial ATA
Fan: 70 x 70 x 15 mm rear fan
Color: Black
Max transfer rate: Up to 6 Gbps (SATA III)
PC assembly: Fit 5.25” half-height front bay slot
Security key lock: Yes
LED display: Yes
Connector: NSS (Non-Scratch SATA)
Tray material: Aluminum / Plastic
Dimension: 195(L) x 146(W) x 84.5(H) (mm)
7 5/8″(L) x 5 3/4″(W) x 3 1/4″(H) (in)
Weight: 0.8 Kg / 1.75 Lbs
Operating Temperature: 0ºc to 55ºc
