Panel Size (diagonal) | 31.5" OLED |
Display Viewing Area (HxV) | 699.48 x 394.73 mm |
Panel Backlight/ Type | OLED |
Display Surface(non-glare/ glare) | Anti-Reflection |
Color Saturation | 99% DCI-P3 |
True Resolution | 3840 x 2160 (UHD) |
Pixel Pitch | 0.181(H) x 0.181(V) mm |
Brightness | 250 cd/m2 (Typ, SDR APL 100%); 1000 nits (Typ, HDR APL 3%) |
Contrast Ratio | 1.5M:1 |
Viewing Angle | 178°(H)/178°(V) |
Display Colors | 10bit (1.07B) |
Response Time | 0.03ms GTG |
Refresh Rate | 165Hz |
HDR | VESA DisplayHDR True Black 400 |
VESA Certified ClearMR | ClearMR 9000 |
Flicker-free | Yes |
Factory Calibration | Yes, ΔE ≤ 2 |

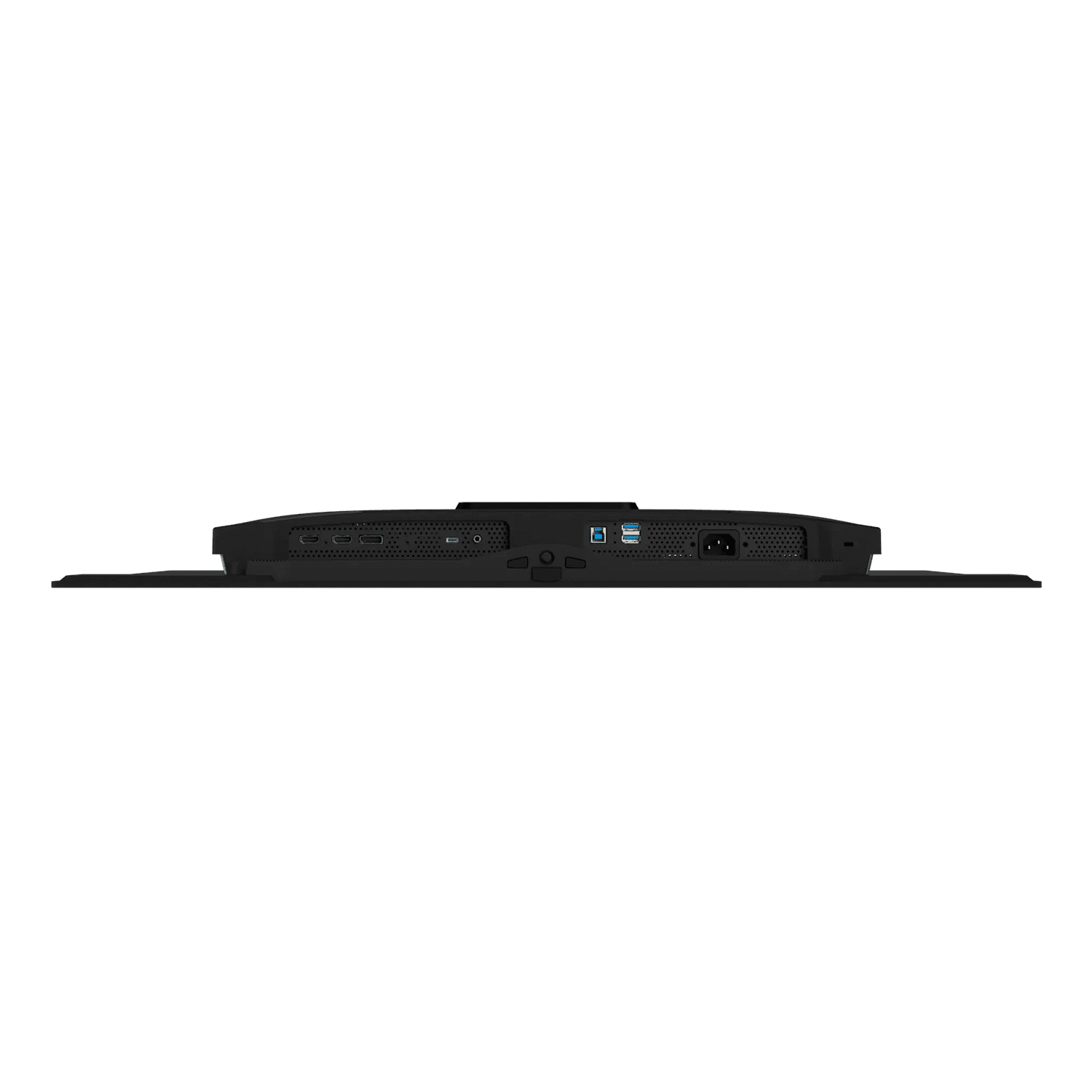

Connectivity |
2 x HDMI 2.1 1 x Displayport 1.4 1 x USB Type-C (Alternate Mode; Upstream port; Power Delivery up to 18W) 2 x USB 3.2 Downstream ports 1 x USB 3.2 Upstream port 1 x Earphone Jack |
Earphone Jack | Yes |
Speaker | 5W x 2 |
Unique Features |
Tactical Switch OSD Sidekick * Black Equalizer 2.0 Dashboard Crosshair Timer Counter Night Vision Eagle Eye PiP/PbP Auto-Update KVM 6 axis Color Control Apply Picture Mode HDMI-CEC |
Power Type | Power Board Build-in |
Power Consumption | 54W ** |
Power Saving Mode | <0.5W |
Power Off Mode | <0.3W |
Voltage | AC 100-240V ~ 50/60Hz |
Tilt(angle) | -5°~+21° |
Swivel(angle) | ±15° |
Pivot(angle/direction) | -0°~+90°(Counter-Clockwise) |
Height Adjustment (mm) | 130 mm |
VESA Wall Mounting(mm) | 100*100 mm |
Kensington lock | Yes |
Phys. Dimension with Stand(WxHxD) | 718.3 x 610.45 x 240 mm |
Phys. Dimension w/o stand (WxHxD) | 718.3 x 417.5 x 64.2 mm |
Box Dimension (WxHxD) | 980 x 545 x 168 mm |
Net Weight with stand (Esti.) | 8.9 ± 0.5 kg |
Net Weight without stand (Esti.) | 6.8 ± 0.5 kg |
Gross Weight (Esti.) | 13.52 ± 0.3 kg |
Accessories | Power cable/HDMI 2.1 cable/DP cable/USB cable/QSG/Warranty card/Color calibration test report |
Note |
*To enable OSD Sidekick, it requires connection between PC and monitor with USB (A-Male to B-Male) cable. **The test condition follows CEC standards. |
