MPG A750GF, 80 PLUS Gold 750W, Fully Modular, ATX Power Supply
Quantity:
- SKU: 13769163
- Manufacturer: MSI
- MPN: MPG A750GF
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$142.25
MPG A750GF, 80 PLUS Gold 750W, Fully Modular, ATX Power Supply
MSI MPG A750GF. GPU SUPPORT FOR ALL. The MPG gaming power supply can support the NVIDIA GeForce RTX™ 30/20 Series and AMD GPUs. Prepared for the highest of requirements, the MPG power supply’s IO supports can support different and versatile ways of connection according to the power connector design of different graphics cards.
- Supports the NVIDIA GeForce RTX™ 30 Series GPUs

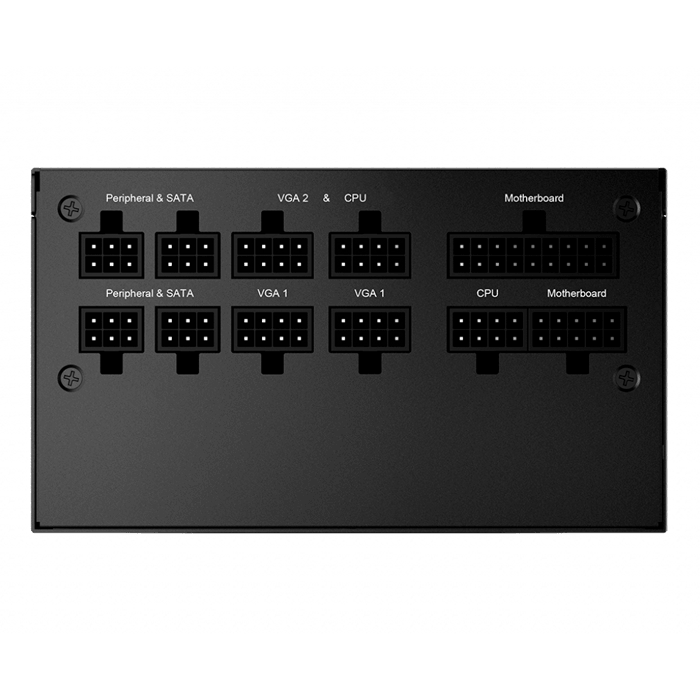

- Full modular cable design
- Flat cable equipment
- 10-year warranty
- 80 Plus Gold certified for high efficiency
- 100% all Japanese 105oC capacitor
- Active PFC design
- Industrial level protection with OVP,OCP,OPP,OTP, SCP,UVP
- LLC Half Bridge Topology with DC-DC module design
| GENERAL | ||||||||
| PRODUCT NAME | MPG A750GF | |||||||
| PSU FORM FACTOR | ATX | |||||||
| POWER WATT | 750W | |||||||
| INPUT VOLTAGE | 100-240Vac | |||||||
| INPUT CURRENT | 115Vac/10.0A max. 230Vac/5.0A max. | |||||||
| INPUT FREQUENCY | 47Hz ~ 63Hz | |||||||
| EFFICIENCY | Up to 90% (80 Plus Gold) | |||||||
| FAN SIZE | 140 mm | |||||||
| DIMENSION | 150mm x160mm x86mm | |||||||
| PFC TYPE | Active PFC | |||||||
| PROTECTION | OCP / OVP / OPP / OTP / SCP / UVP | |||||||
| ELECTRICAL SPECIFICATION | ||||||||
| AC Input | 100V~240V | |||||||
| DC Output | +5V | +3.3V | +12VMBPH | +12VCPU | +12VVGA1 | +12VVGA2 | -12V | +5VSB |
| 22.0A | 22.0A | 25.0A | 25.0A | 35.0A | 35.0A | 0.3A | 2.5A | |
| Total Power | 120W | 750W | ||||||
| 750W | ||||||||
