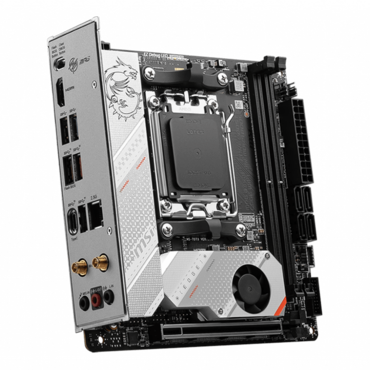

MPG B650I EDGE WIFI, AMD B650 Chipset, AM5, Mini-ITX Motherboard
Quantity:
- SKU: 15154531
- Manufacturer: MSI
- MPN: B650IEDGEWIFI
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$270.93
MPG B650I EDGE WIFI, AMD B650 Chipset, AM5, Mini-ITX Motherboard
The MPG series brings out fashionable products by showing extremely unique styles and expressing a conceited attitude towards the challenge of the gaming world. With extraordinary performance and style, the MPG series defines the future of gaming fashion.
- Supports AMD Ryzen™ 7000 Series Desktop Processors
- Supports DDR5 Memory, up to 6600+(OC) MHz
- Enhanced Power Design: Direct 8+2+1 VRM power, Core Boost, Memory Boost
- Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
- High Quality PCB: 10-layer PCB made by 2oz thickened copper and server grade level material
- 2.5G LAN and AMD Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- Lightning Fast Game experience: PCIe 4.0 slots, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2
- DIY Friendly Design: Flash BIOS Button, Pre-installed I/O Shield, Steel Armor
- AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
| Chipset | AMD B650 |
| CPU SUPPORT | Supports AMD Ryzen™ 7000 Series Desktop Processors Socket AM5 |
| Memory | 2x DDR5, Maximum Memory Capacity 64GB Memory Support DDR5 6600+(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200(OC)/5000(OC)/4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max. speed up to 6600+ MHz • 1DPC 2R Max. speed up to 6000+ MHz Support Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO™ |
| Onboard Graphics | 1x HDMI™ Support HDMI™ 2.1 FRL, maximum resolution of 4K 120Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| EXPANSION SLOT | 1x PCI-E x16 slot PCI_E1 PCIe 4.0 supports up to x16 (From CPU) |
| Multi-GPU | Supports AMD MULTI-GPU |
| Storage | 2x M.2 slot M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G port |
| RAID | Supports RAID 0 , RAID 1 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
| USB | 2x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 3x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear) |
| LAN | Realtek ® RTL8125BG 2.5Gbps LAN |
| WIRELESS / BLUETOOTH | AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth ® 5.2** * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 21H1 and Windows 11. ** Bluetooth 5.2 will be ready in Windows 10 build 21H1 and Windows 11. |
| Audio | Realtek ® ALC4080 Codec 7.1-Channel USB High Performance Audio Supports up to 32-Bit/384 kHz playback on front panel |
| Internal I/O | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 1x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Addressable V2 RGB LED connector (JARGB_V2) 2x USB 2.0 2x USB 3.2 Gen1 Type A 1x USB 3.2 Gen2 Type C |
| LED FEATURE | 4x EZ Debug LED |

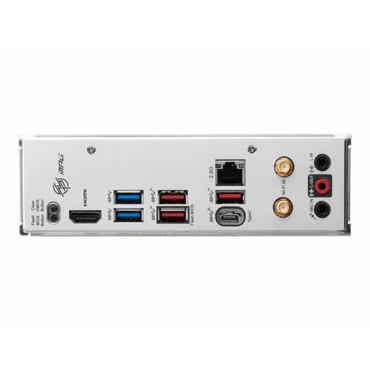

| BACK PANEL PORTS | 1x Clear CMOS Button 2x USB 3.2 Gen 1 5Gbps (Type-A) 1x 2.5G LAN 2x Wireless / Bluetooth 3x Audio Connectors 1x Flash BIOS Button 1x HDMI™ 3x USB 3.2 Gen 2 10Gbps (Type-A) 1x USB 3.2 Gen 2x2 20Gbps (Type-C) |
| OPERATING SYSTEM | Support for Windows ® 11 64-bit, Windows ® 10 64-bit |
| PCB Dimension | Mini-ITX 170mmx170mm |
