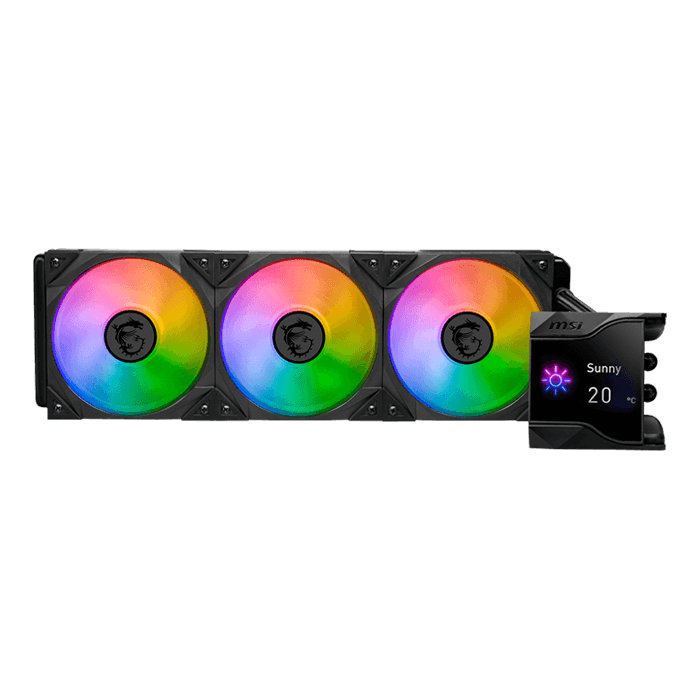

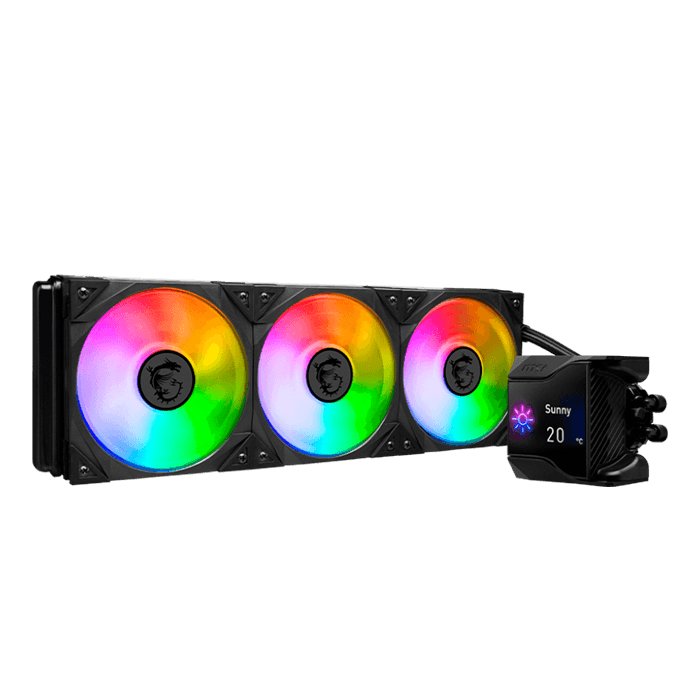

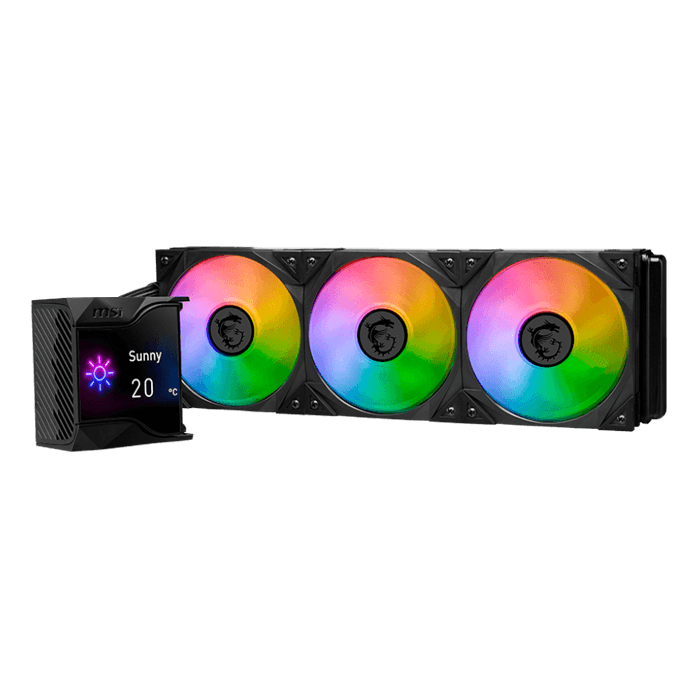

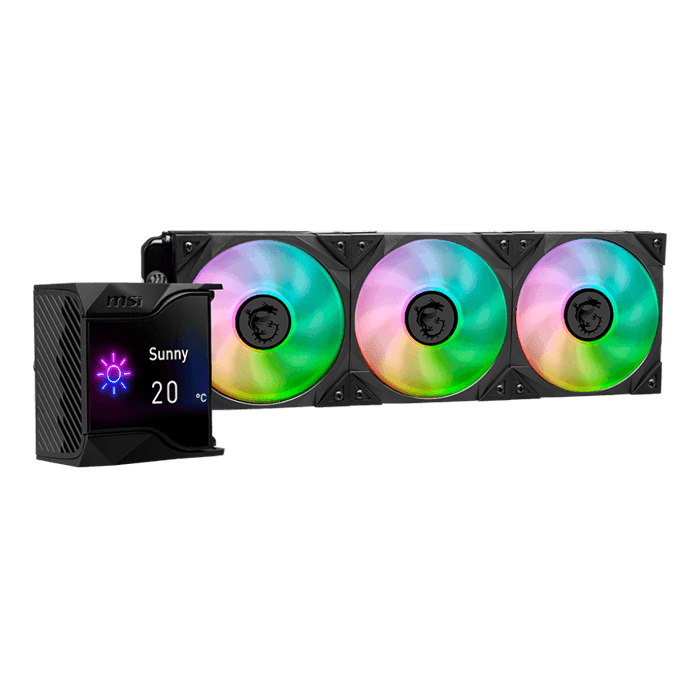

MPG CORELIQUID D360
- MSI's TORX FAN 4.0 provides supreme cooling to the radiator.
- 60 mm TORX FAN 3.0 within the water block provides heat dissipation to the power solutions.
- 2.4” Customizable IPS display: hardware monitor, video & image upload, system clock and live weather.
- The fan and pump speed can be independently controlled according to different user scenarios.
- Latest CPU socket supported: Intel LGA 1700 & AMD AM5.
- A three-layer mesh plastic tube slows down the evaporation speed of water cooling liquid.
MANUFACTURER NUMBER | CLD360 |
CABLE LENGTH | 13.78 inches (PWM CABLE) |
PANEL SIZE | 2.4" |
PANEL TYPE | IPS |
PANEL RESOLUTION | 320 x 240 |
PANEL BRIGHTNESS | 500 nits |
INTERFACE CONNECTOR | USB 2.0 pin header |
POWER CONNECTOR | SATA |
PUMP RATED CURRENT | 0.3 A |
NUMBER OF FANS | 3 |
FAN DIMENSIONS | 120mm |
FAN POWER CONSUMPTION | 3.36W (MAX) |
FAN RATED CURRENT | 0.28A (MAX) |
FAN BEARING | Two Ball Bearing |
FAN AIR FLOW | 77.4 CFM |
FAN LIGHTING | ARGB |
PWM MODE | Yes |
RADIATOR MATERIAL | Aluminum |
RADIATOR DIMENSIONS | 15.5" x 4.7" x 1.06" (WxDxH) |
BLOCK DIMENSIONS | 95 x 95 x 83.53 mm |
PUMP SPEED | 2800 +/-300 RPM (PWM controlled) |
PUMP POWER CONSUMPTION | 4 W |
COOLING SOCKET SUPPORT |
LGA 1700 / 1200 / 1156 / 1155 / 1151 / 1150 LGA 2066 / 2011-3 / 2011 AM5 / AM4 TR4 / sTRX4 |
FAN ACCESSORIES |
1 x 1 to 3 ARGB Splitter Cable 1 x Thermal Paste |
FAN LIFE EXPECTANCY | 100,000 Hours |
PUMP LIFE EXPECTANCY | 50,000 Hours |
WATER COOLING TUBE MATERIAL | Black Rubber + Mesh |
FAN CONNECTOR | 4-pin PWM |
PUMP NOISE LEVEL | 21.2 dBA |
RGB CONNECTOR | 3-pin |
PUMP CONNECTOR | 4-pin PWM |
WEIGHT | - |
MANUFACTURER WARRANTY | 5 Year |
