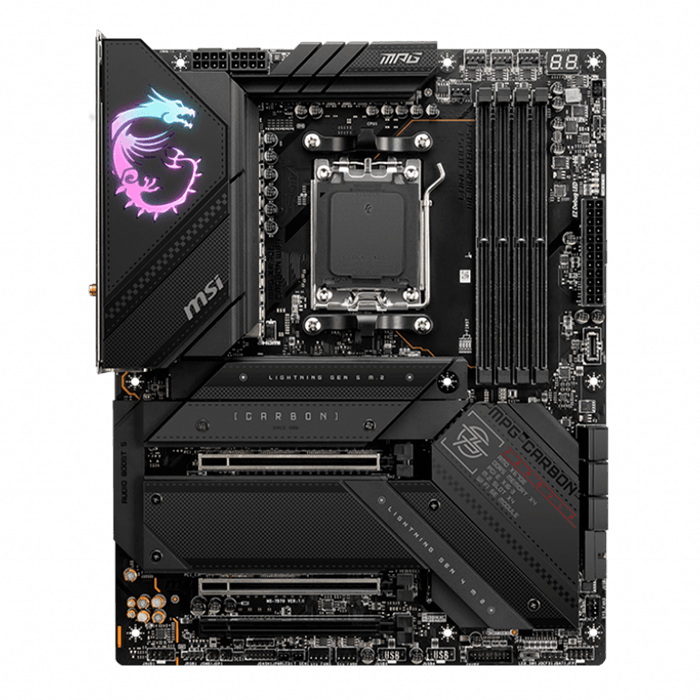

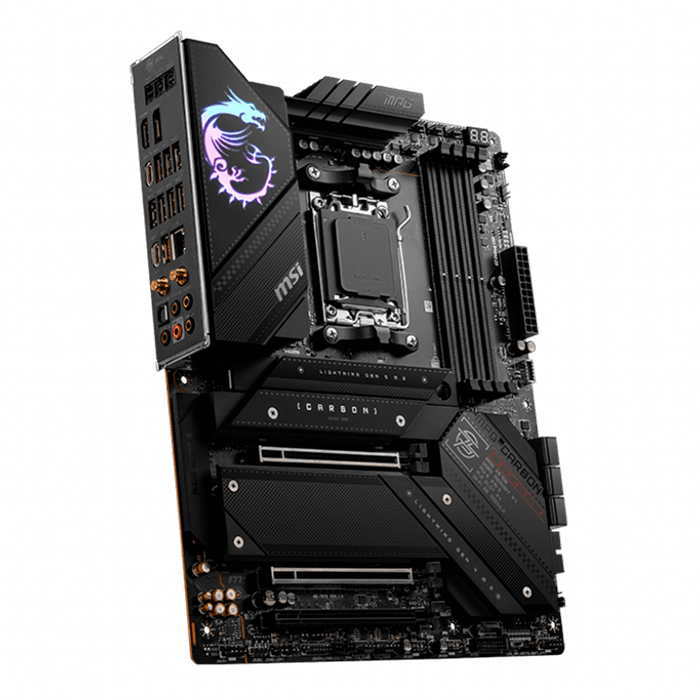

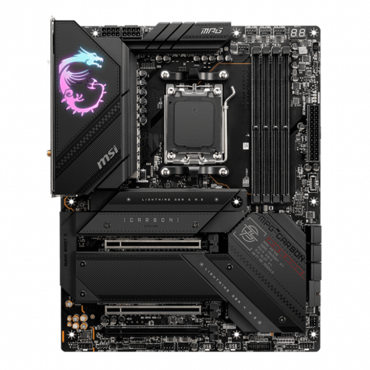

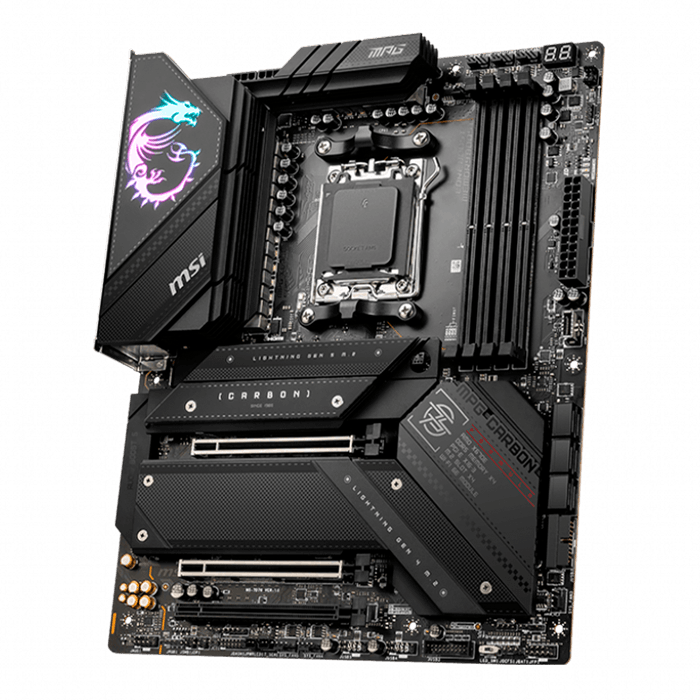

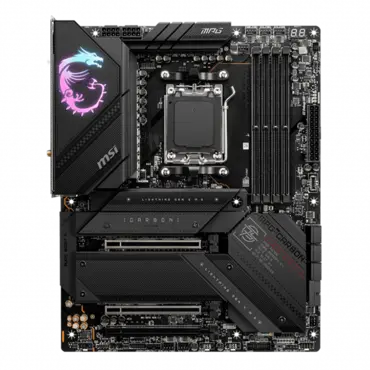

MPG X670E CARBON WIFI, AMD X670 Chipset, AM5, ATX Motherboard
Quantity:
- SKU: 15128073
- Manufacturer: MSI
- MPN: X670ECARBWIFI
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$466.88
MPG X670E CARBON WIFI, AMD X670 Chipset, AM5, ATX Motherboard
MPG X670E CARBON WIFI employs carbon black color scheme and RGB lighting to show off different personality and identity. Besides being stylish, it is also powerful. The MPG series brings out fashionable products by showing extremely unique styles and expressing a conceited attitude towards the challenge of the gaming world. With extraordinary performance and style, the MPG series defines the future of gaming fashion.
- Supports AMD Ryzen™ 7000 Series Desktop Processors
- Supports DDR5 Memory
- Enhanced Power Design: 18+2+1 Duet Rail Power System, Dual 8-pin CPU power connectors, Core Boost, Memory Boost
- Premium Thermal Solution: Extended Heatsink with Direct Touched Heat-pipe, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and Double-sided M.2 Shield Frozr are built for high performance system and non-stop gaming experience
- High Quality PCB: 8-layer PCB made by 2oz thickened copper and server grade level material
- DIY Friendly Design: Patented Screwless M.2 Shield Frozr, EZ M.2 Clips, Smart Button, Pre-installed I/O Shield, Steel Armor
- Lightning Fast Game experience: PCIe 5.0 slots, Lightning Gen 5 x4 M.2, USB 3.2 Gen 2x2
- 2.5G LAN and Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- MYSTIC LIGHT: 16.8 million colors / fancy lighting effects controlled in one click. MYSTIC LIGHT SYNC supports latest ARGB Gen2 strips, RGB strips and Ambient devices
- AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
| MANUFACTURER PART # | MPG X670E CARBON WIFI |
| OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| CPU | Supports AMD Ryzen™ 7000 Series Desktop Processors |
| CHIPSET | AMD® X670 Chipset |
| CPU SOCKET | Socket AM5 |
| FORM FACTOR | ATX |
| MEMORY | 4 x DDR5, Maximum Memory Capacity 128GB |
| LAN | Realtek® RTL8125BG 2.5Gbps LAN |
| WIRELESS LAN |
AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax |
| BLUETOOTH | Supports Bluetooth® 5.2 |
| AUDIO |
Realtek® ALC4080 Codec
|
| MULTI-GPU | Supports AMD MULTI-GPU |
| STORAGE |
4 x M.2 slot 6 x SATA 6G port |
| ONBOARD GRAPHICS |
1x HDMI™ Support HDMITM 2.1 FRL, maximum resolution of 4K 120Hz 1x Display Port Support DP 1.4, maximum resolution of 4K 60Hz 1x Type-C Display port Supports DisplayPort 1.4 with HBR3, maximum resolution of 4K 120Hz |
| RAID |
Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices |

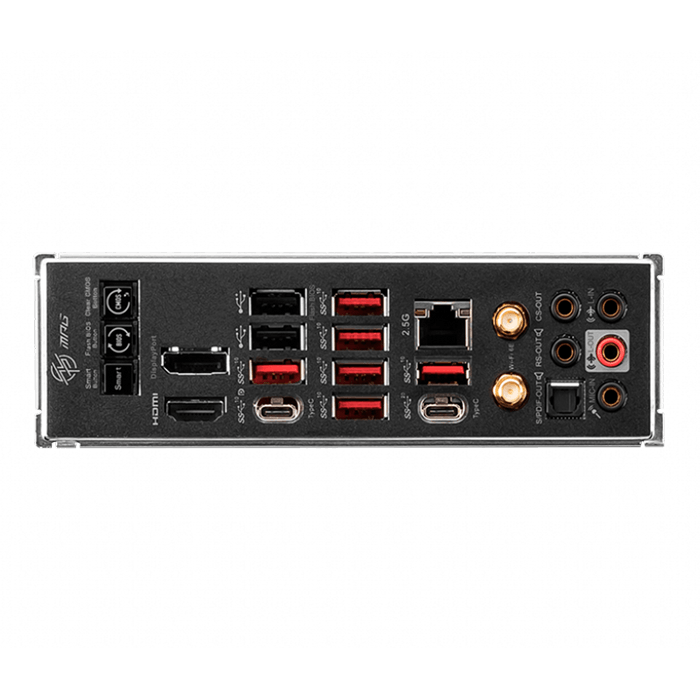

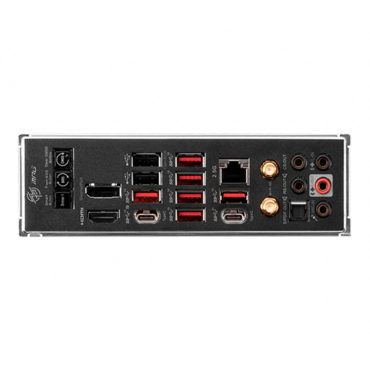

| I/O (REAR) |
Clear CMOS Button Flash BIOS Button DisplayPort USB 2.0 2.5G LAN Audio Connectors Smart Button HDMI™ USB 3.2 Gen 2 10Gbps (Type-C Display port) USB 3.2 Gen 2 10Gbps (Type-A) USB 3.2 Gen 2x2 20Gbps (Type-C) Wireless / Bluetooth S/PDIF-Out |
| EXPANSION SLOTS |
3x PCI-E x16 slot Supports x16/x0/x4, x8/x8/x4 PCI_E1 PCIe 5.0 supports up to x16 (From CPU) PCI_E2 PCIe 5.0 supports up to x8 (From CPU) PCI_E3 PCIe 5.0 supports up to x4 (From CPU) |
| USB (FRONT) |
1 x USB 3.2 Gen2 Type C ports 4 x USB 3.2 Gen1 Type A ports 4 x USB 2.0 ports |
| USB (REAR) |
2 x USB 2.0 ports 6 x USB 3.2 Gen2 Type A ports 1 x USB 3.2 Gen2 Type C ports 1 x USB 3.2 Gen2x2 Type C ports |
| INTERNAL CONNECTORS |
1 x Power Connector(ATX_PWR) 2 x Power Connector(CPU_PWR) 1 x CPU Fan 1 x Pump Fan 5 x System Fan 2 x Front Panel (JFP) 1 x Chassis Intrusion (JCI) 1 x Front Audio (JAUD) 1 x Thermal Sensor connectors(T_SEN) 1 x Tuning Controller connector(JDASH) 2 x Addressable V2 RGB LED connector (JARGB_V2) 1 x RGB LED connector(JRGB) 4 x USB 2.0 ports 4 x USB 3.2 Gen1 Type A ports 1 x USB 3.2 Gen2 Type C ports |
| DIMENSIONS | 9.60" x 12.00" |
| MANUFACTURER WARRANTY | 3 Year |
